Introduction
Ask most researchers what an AFM does, and they'll say it takes sharp pictures of nanoscale surfaces. That's true. But underneath the imaging engine sits a force sensor capable of resolving piconewton-to-nanonewton interactions, small enough to catch a single protein unfolding or one chemical bond snapping.
That capability isn't a niche curiosity. PubMed title/abstract searches combining "atomic force microscopy" and "force spectroscopy" climbed from 61 records in 2011 to 95 by 2021, roughly 56% growth.
By 2025 the count settled at 71: a field that expanded fast, then matured.
Yet plenty of labs never touch this side of their instrument. The AFM sits in the corner running topography scans while questions about stiffness, adhesion, or binding force get outsourced elsewhere.
This article covers how force curves work, where force spectroscopy earns its keep, the calibration steps that make results trustworthy, and what separates an instrument built for reliable force work from one that only images well.
Key Takeaways
- Force spectroscopy turns deflection and piezo data into force-vs-separation curves that reveal properties imaging can't
- Four core applications: modulus/stiffness, adhesion, single-molecule unfolding, and spatial force mapping
- Results hinge on spring-constant and deflection-sensitivity calibration plus the right contact model
- Modular AFM with fluid and environmental control enables experiments fixed imaging systems can't run
What Is AFM Force Spectroscopy?
Imaging and force spectroscopy use the same hardware to ask different questions. Imaging rasters the tip line by line across a surface to reconstruct topography. Force spectroscopy parks the tip at a single point and measures what happens as it approaches, touches, and retracts.
That single-point measurement is the entire point. Recording cantilever deflection through an approach-contact-retract cycle gives a direct readout of the physical interaction between tip and sample, not just its shape.
The technique reaches a force window most characterization methods can't touch.
- Titin domain unfolding requires roughly 150-300 piconewtons
- Bacterial adhesion can reach up to 50 nanonewtons, depending on the strain
- Single chemical bond ruptures sit well within the piconewton range
That resolution makes single-molecule and single-bond studies possible in ways bulk mechanical testing never could.
Force spectroscopy also isn't confined to one discipline:
- Materials science: thin-film and polymer mechanical characterization
- Life sciences: protein folding, cell adhesion, receptor-ligand binding
- Electrochemistry: mapping solid-electrolyte interphase mechanics during battery cycling
- Molecular electronics: probing charge transport at nanoscale junctions
When someone needs a real number for stiffness, adhesion, or binding strength, only a calibrated force curve can supply it.

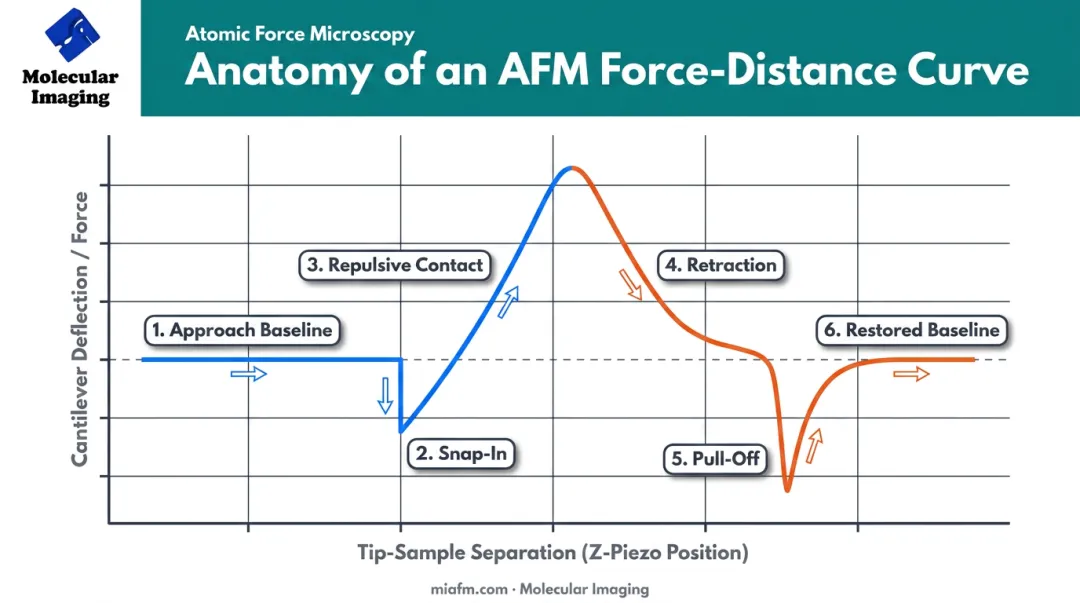

Understanding the AFM Force Curve: A Step-by-Step Breakdown
A force curve doesn't start out as force at all. The raw signal is cantilever deflection plotted against z-piezo position: voltage against distance.
Converting that into a true force-versus-tip-sample-separation curve requires two calibrated values: spring constant and deflection sensitivity. Skip that step, and you're looking at an interesting shape with no physical units attached.
Once calibrated, a typical curve unfolds in six recognizable stages.
The six stages of a force curve:
- Approach baseline — tip far from surface, no interaction
- Snap-in — sudden jump into contact
- Repulsive contact — cantilever bends as it pushes into the sample
- Retraction — piezo reverses direction
- Pull-off — adhesive bond breaks
- Restored baseline — tip returns to its non-interacting state
Approach and the Snap-In Event
During approach, the tip isn't neutral. Attractive or repulsive forces can bend the cantilever before contact even happens. Within a few nanometers of the surface, van der Waals forces (and, in humid ambient conditions, capillary forces) start to dominate.
When the attractive force gradient exceeds cantilever stiffness, the tip snaps suddenly into contact. This snap-in event matters most for adhesion-sensitive samples, since its magnitude reflects how strongly those short-range forces are acting before deliberate contact occurs.
Repulsive Contact and Retraction
Past snap-in, continued z-piezo movement pushes the tip further into the sample, bending the cantilever upward against repulsive forces. The slope of this region feeds stiffness and modulus calculations later on.
Then the piezo reverses. During retraction, adhesion keeps the tip stuck to the surface longer than the approach path suggested, bending the cantilever back toward the sample instead of away from it.
The Pull-Off Event
Eventually the cantilever's restoring force overcomes the adhesive bond, and the tip separates: the pull-off event. The depth of that dip, once converted to force, directly quantifies adhesion. A deeper dip means stronger adhesion. This single feature underlies nearly every adhesion measurement in force spectroscopy.
Key Applications of AFM Force Spectroscopy
Measuring Elastic Modulus and Stiffness
The slope of the repulsive contact region is used to calculate stiffness and Young's modulus once it is fit to the right contact mechanics model. That yields quantitative mechanical data at a spatial resolution bulk testers cannot reach.
Researchers used this approach on ultrathin poly(vinyl acetate) films ranging from 9 to 610 nanometers thick. With a roughly 12-nanometer-radius probe, the glassy modulus stayed thickness-independent down to about 18 nanometers.
Switch to a 150-nanometer probe, and substrate effects crept into the reading even in 100-nanometer films. Probe geometry matters as much as the sample.
Thin-film and polymer coating characterization remains one of the most common uses of this measurement, precisely because bulk techniques miss mechanical variation at this scale.
Quantifying Adhesion and Surface Interactions
The pull-off dip during retraction is the workhorse of adhesion research, from polymer surfaces to living cells.
Polymer blend studies use the dip to map surface stickiness across phase-separated domains. Single-cell and bacterial work takes a different path: fluidic cantilevers hold a functionalized bead against living cells or bacteria, then measure detachment force directly.
One documented example tested 28 bacterial strains isolated from plant leaves using a fluidic cantilever with a 10-nanonewton contact force and a 5-second dwell time. Adhesion varied across roughly three orders of magnitude, reaching 50 nanonewtons for some strains — a range that reflects genuine biological diversity, not measurement noise.
Single-Molecule Unfolding and Stretching
Tether a protein or polymer chain between the AFM tip and the sample surface, then pull. As domains unfold one at a time, the force curve produces a distinctive stepwise, sawtooth signature instead of a smooth line.
The classic demonstration comes from titin, the giant muscle protein. Repeated stretching of individual immunoglobulin domains produced sawtooth patterns with 25-28 nanometer periodicity, requiring 150-300 piconewtons to unfold each domain. The process was reversible on relaxation and speed-dependent: pull faster, and unfolding forces rise.
Later work pushed this further, using ultrashort cantilevers to unfold bacteriorhodopsin in its native lipid bilayer at microsecond resolution and catch folding intermediates just two or three amino acids apart. No other technique watches a single molecule fold and unfold in real time at this resolution.
Force Mapping for Spatial Property Distribution
A single force curve tells you about one point. A grid of thousands, collected systematically across a surface, builds a spatially resolved map of stiffness or adhesion. Those maps feed into histograms for statistical rigor.

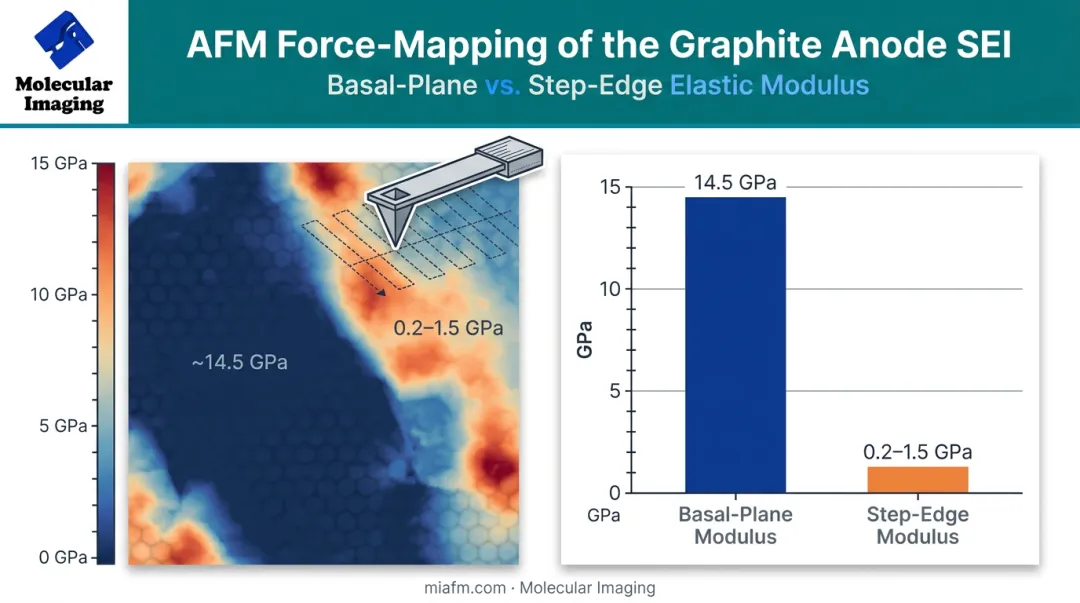

Battery researchers used this operando, running PeakForce AFM on graphite anodes during cycling. The solid-electrolyte interphase turned out to be mechanically heterogeneous: roughly 14.5 GPa on the basal plane versus just 0.2-1.5 GPa at step edges, where the interphase was thicker and softer.
That spatial detail matters for understanding battery degradation, and it is invisible to any single-point measurement.
Similar mapping approaches apply to charge-transport studies in molecular electronics, where mechanical and electrical heterogeneity often go hand in hand.
Calibration and Contact Mechanics Models: Ensuring Accurate Results
Every force number is only as good as two calibration steps performed beforehand. Deflection sensitivity comes first, measured from the contact slope on a hard, non-deformable substrate, converting photodiode voltage into actual cantilever displacement. Spring constant comes second, using one of three established methods:
| Method | How it works |
|---|---|
| Thermal tune | Uses Brownian cantilever motion and the equipartition theorem |
| Sader method | Uses resonance frequency, quality factor, and plan-view dimensions |
| Added mass | Measures resonant frequency shifts before and after attaching a known mass |
| Get either step wrong, and every downstream modulus or force value is wrong too. |
Choosing the Right Contact Mechanics Model
Model selection depends on tip geometry and adhesion, not sample softness alone:
- Hertz — spherical or parabolic tips, negligible adhesion
- Sneddon — conical or pyramidal tips, negligible adhesion
- DMT — small adhesion acting outside the contact area, small tip radius
- JKR — soft, significantly adhesive contacts A 2016 study on ultrathin polymer films chose JKR over Hertz specifically because adhesion was too large relative to applied load to ignore. Picking Hertz there would have built systematic error into every modulus value.
Common Mistakes and Environmental Drift
Tip radius, spring constant, and deflection sensitivity are the three biggest sources of uncertainty. Tip radius and spring constant dominate error at low modulus, while deflection sensitivity and Z-position dominate at high modulus. A standardized calibration protocol tested across multiple labs cut hydrogel modulus error from 30% down to 1% and doubled measurement consistency on living cells. Environment adds another layer. Ambient pull-off forces are largely governed by capillary effects, so relative humidity shifts adhesion readings even when nothing else about the sample changes. Controlling (or at least recording) temperature and humidity is not optional for reproducible force data.
Choosing the Right AFM System for Force Spectroscopy Research
Not every AFM is built to do force spectroscopy well, even if the mode exists in the software menu. A few features separate instruments that handle this work reliably from ones that merely tolerate it:
- Modularity to move between imaging and force spectroscopy without swapping the entire system
- High-resolution deflection detection to resolve piconewton-scale signals above the noise floor
- Precise closed-loop z-control so the reported tip position actually matches the piezo's real motion
Matching Configuration to Research Goals
Life science labs need fluid cells and BioAFM capability to keep samples hydrated in physiological buffer throughout a force measurement. Materials labs, by contrast, often need temperature-controlled environmental chambers to track how stiffness or adhesion shifts with thermal history.

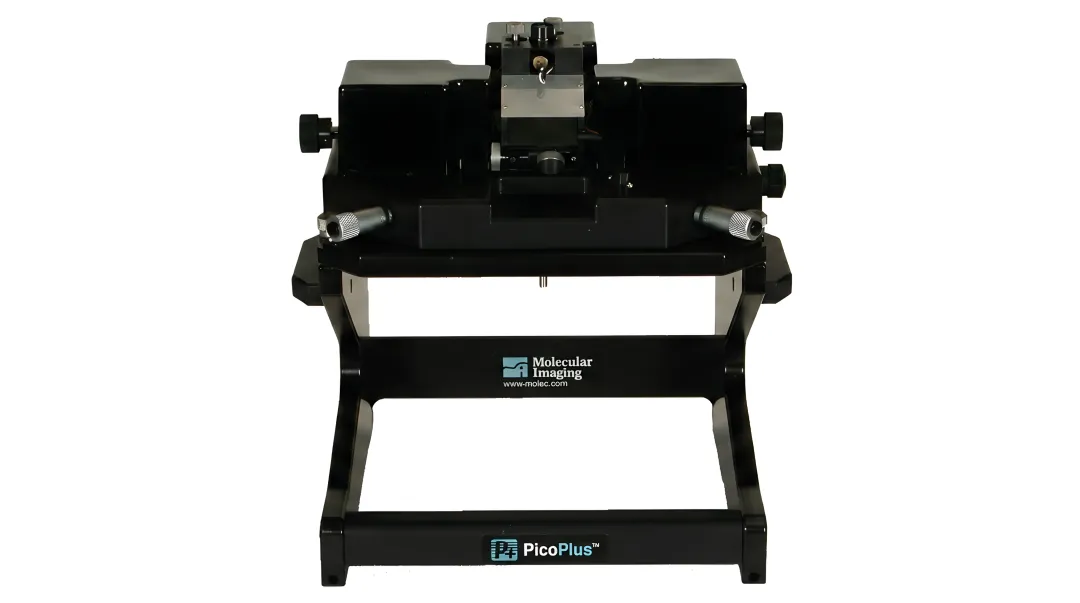

At Molecular Imaging, those dual needs drive the modular nose cone design on the 5500 PicoPlus AFM+STM and 5500 ILM PicoPlus BioAFM systems. The same scanner platform reconfigures for AFM, STM, or dedicated force measurement without replacing the instrument.
The BioAFM configuration pairs that modularity with MAC Mode fluid imaging and liquid cells rated for physiological buffers, acids, bases, and organic solvents. Temperature-controlled stages spanning -30°C to 250°C extend force spectroscopy into phase-transition and thermal studies on the materials side.
For labs already running an aging AFM that needs recalibration or repair rather than replacement, ZoomAFM service support keeps existing systems producing trustworthy force data instead of forcing a full instrument swap.
Frequently Asked Questions
What is the difference between AFM imaging and AFM force spectroscopy?
Imaging rasters the tip across a surface point by point to build a topographic map. Force spectroscopy holds the tip at one location and records force as it approaches, contacts, and retracts from the sample.
What is a force curve in AFM?
A force curve plots cantilever deflection, converted to force, against tip-sample separation. It captures the approach, contact, and retraction behavior in a single continuous measurement.
How do you calibrate an AFM for force spectroscopy measurements?
Calibrate deflection sensitivity first, using the contact slope on a hard, non-deformable substrate. Then calibrate spring constant using thermal tune, the Sader method, or added mass.
What is single-molecule force spectroscopy used for?
It studies protein folding and unfolding, ligand-receptor binding strength, and the rupture force of single chemical bonds. Titin unfolding is the classic textbook example.
Which contact mechanics model should I use for my sample?
It depends on tip geometry and adhesion level, not just sample softness. Hertz and Sneddon work when adhesion is negligible; DMT and JKR suit samples where adhesion meaningfully affects the contact.
Can AFM force spectroscopy be performed on biological samples in liquid?
Yes. BioAFM systems with fluid cells maintain samples in physiological buffer, enabling live-cell and biomolecule force spectroscopy under near-native conditions rather than in air.
