Introduction
Imagine running your finger across a tennis ball to feel every bump in its felt surface. Now shrink that tennis ball down until it's the size of a single atom. That's roughly the scale at which atomic force microscopy (AFM) operates, and it's why researchers reach for it when other tools fall short.
Optical microscopes hit a wall at the diffraction limit. Electron microscopes need conductive samples and often a vacuum chamber, which rules out most biological specimens.
Many researchers face this exact problem: they need sub-nanometer detail on a soft, wet, or non-conductive sample. Traditional imaging tools can't deliver that without damaging or distorting what they're trying to see.
This guide covers what AFM is, how it actually works, where it delivers the most value across research and industry, its real advantages and limitations, and what to think about before your lab invests in a system.
Key Takeaways
- AFM uses a physical probe, not light or electrons, to map surfaces at sub-nanometer resolution.
- It works on virtually any material: conductive, insulating, soft, or hard, in air or liquid.
- Three core modes (contact, tapping, non-contact) suit different sample types and sensitivities.
- Maps topography, mechanics, and forces for materials, biology, energy, and single-molecule studies.
- Budget for cantilevers, calibration, and service—not only the instrument purchase price.
What Is Atomic Force Microscopy?
Atomic force microscopy is a scanning probe technique that generates images by physically sensing the forces between a sharp tip and a sample surface. Instead of bouncing light or electrons off a specimen, AFM drags or oscillates a nanoscale cantilever tip across it, tracking how the tip responds to atomic-scale attraction and repulsion.
The technique traces back to 1985, when Gerd Binnig conceived the idea while on leave from IBM Zurich. Working with Calvin Quate at Stanford and Christoph Gerber, the team introduced the first AFM prototype in February 1986 and published their findings that March in Physical Review Letters.
AFM built directly on the scanning tunneling microscope (STM), the invention that earned Binnig and Heinrich Rohrer the 1986 Nobel Prize in Physics. AFM itself wasn't the Nobel-winning device, but it solved STM's biggest limitation: the need for a conductive sample.
Typical operating specs include:
- Lateral range from sub-nanometer to several micrometers
- Sub-nanometer out-of-plane resolution under good conditions
- Commercial cantilever tip radii of about 5 to 20 nm
- Atomic resolution when tip, sample, and environment align
How the tip interacts with the surface depends on imaging mode. Three primary modes cover most lab work.
Contact Mode
In contact mode, the tip stays in constant physical contact with the surface as it scans, riding in the repulsive force region. This delivers fast, stable imaging on hard, well-adhered samples like semiconductor wafers or metal films. The tradeoff: continuous lateral dragging can shred soft or loosely bound samples, making it a poor fit for polymers, cells, or delicate biomolecules.
Tapping Mode
Tapping mode, also called intermittent-contact mode, drives the cantilever near its resonance frequency so the tip touches the surface only briefly on each oscillation cycle. Lower lateral shear makes it the default for biological structures and soft polymers in air or liquid.
Non-Contact Mode
Non-contact mode keeps the tip hovering just above the surface, sensing longer-range attractive forces like van der Waals interactions rather than touching down at all. It's the gentlest option, reserved for extremely fragile or contamination-sensitive surfaces. It also demands the most careful tip and environmental control, since even trace surface contamination can distort the force signal.
| Mode | Tip–sample interaction | Best for | Main tradeoff |
|---|---|---|---|
| Contact | Constant repulsive contact | Hard, well-adhered samples (wafers, metal films) | Can damage soft or loose samples |
| Tapping | Brief touch each oscillation cycle | Soft polymers, cells, biomolecules (air or liquid) | Slightly slower than pure contact on hard samples |
| Non-contact | Hovers; senses attractive forces | Fragile or contamination-sensitive surfaces | Needs tight tip and environment control |
How Does an Atomic Force Microscope Work?

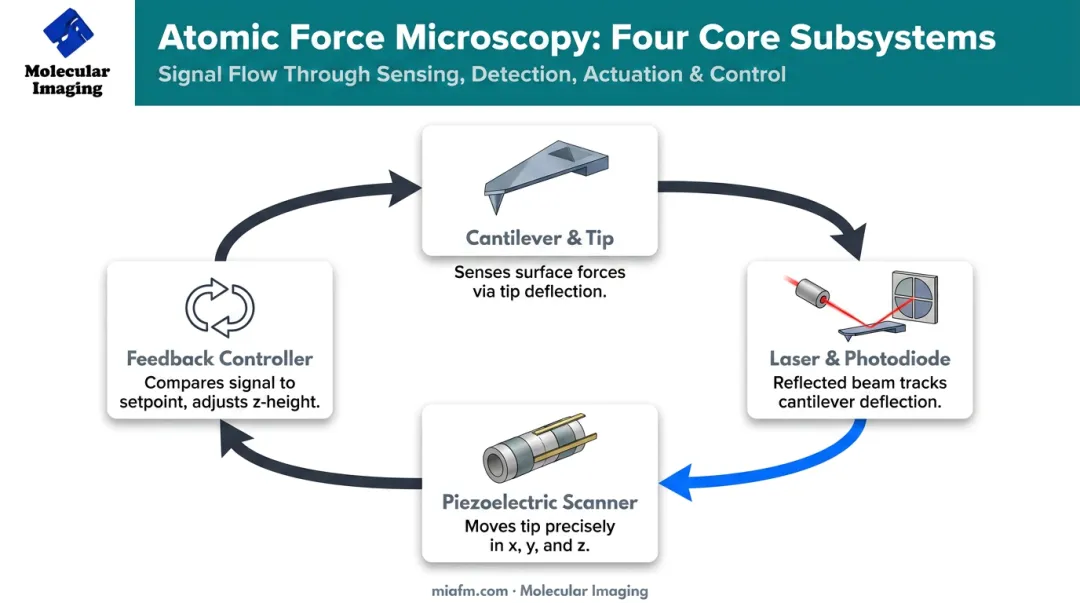

Every AFM system relies on three subsystems working in concert: a sensing probe, a detection system, and a positioning stage, all tied together by feedback electronics.
The cantilever and tip. Most probes are micromachined from silicon or silicon nitride, standing 5 to 10 micrometers tall and tapering to a tip just a few nanometers wide at the apex. As the tip encounters surface forces, the cantilever bends according to Hooke's Law (F = k × Δz), where k is the cantilever's calibrated spring constant.
Beam-deflection detection. A laser bounces off the reflective back of the cantilever onto a segmented photodiode. As the cantilever deflects, the reflected spot shifts position on the photodiode, converting a physical bend into a precise electrical signal.
Piezoelectric positioning. Piezo actuators move the tip (or sample) in a raster pattern across the x-y plane while independently controlling z-height with sub-nanometer precision.
The feedback loop. A controller continuously compares the cantilever's response, whether that's deflection, oscillation amplitude, or frequency, against a fixed setpoint. It adjusts the z-piezo to hold that response constant, and the correction applied at every scan point becomes the topography data.
Beyond basic height mapping, many systems capture electrical, mechanical, or magnetic properties at the same time with specialized probes. Modular hardware is what makes that practical.
Molecular Imaging's PicoPlus 5500 platform, for example, uses interchangeable nose cones to switch modes without replacing the full instrument:
- Conductive AFM
- Kelvin probe force microscopy (KPFM)
- Electrostatic force microscopy (EFM)
- Magnetic force microscopy (MFM)
Some capabilities, such as electrochemical AFM or MAC Mode's magnetically driven oscillation, still need dedicated modules or accessories on the base configuration.
Key Applications of AFM in Research and Industry
AFM's biggest strength is versatility. It handles conductive and insulating materials, soft and rigid samples, transparent and opaque surfaces, often without any special preparation. That flexibility is why it shows up across such a wide range of research disciplines.
Materials Science and Nanotechnology

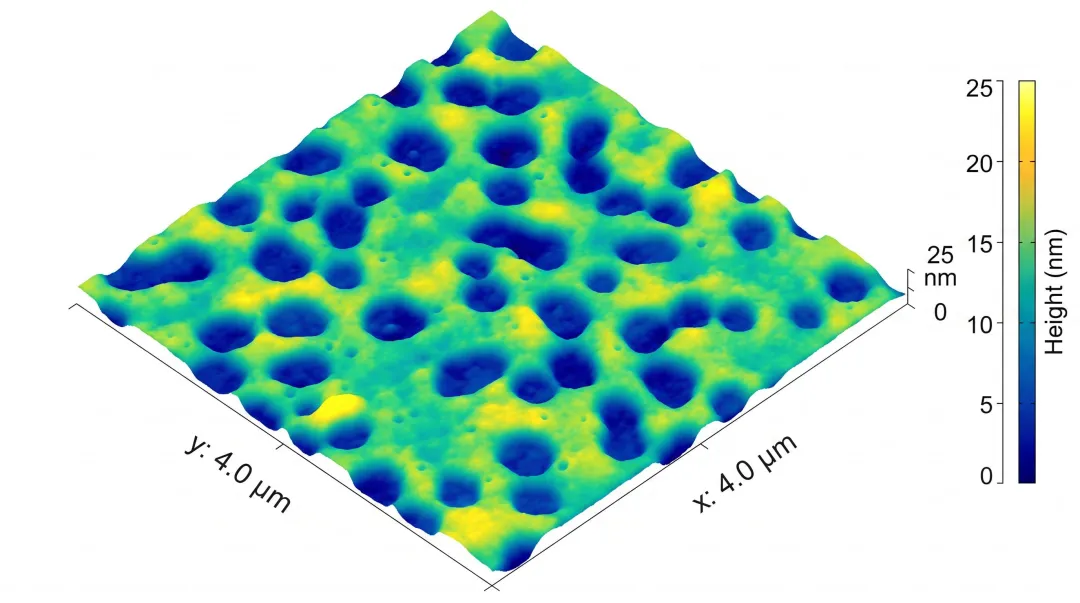

AFM routinely characterizes thin films, polymers, and 2D materials for roughness, defects, and grain structure. In one example, ambient tapping-mode AFM resolved individual polythiophene polymer strands with a periodicity of 0.81 nanometers, fine enough to distinguish molecular lattice structure without vacuum or cryogenic cooling.
Semiconductor labs also use 3D-AFM variants to measure sidewall roughness on structures like FinFETs, where a conventional top-down scan can't reach vertical or undercut features.
Life Sciences and Bio-AFM
Biological researchers use AFM to image proteins, membranes, and living cells directly in liquid, without stains, fixatives, or conductive coatings that would alter or kill the sample.
Molecular Imaging's 5500 ILM PicoPlus BioAFM is designed for this work. MAC Mode drives the cantilever magnetically rather than acoustically, cutting background noise in fluid so researchers can image protein assemblies and plasmid DNA without damage. Dual scan ranges cover both scales without switching instruments:
- 9 x 9 micrometers for molecular detail
- 90 x 90 micrometers for whole-cell views
Energy and Electrochemistry
In-situ AFM has become central to battery research. Studies have used it to observe solid-electrolyte-interphase nucleation and growth on graphite electrodes. Kelvin probe force microscopy has also mapped nonuniform charge distribution across composite battery electrodes.
Molecular Imaging's 5420 PicoAFM and 5500 Series support conductive AFM and KPFM through modular nose cones. A glove-box AFM configuration with potentiostat integration enables oxygen-free lithium battery imaging during charge-discharge cycling.
Force Spectroscopy
AFM measures forces as well as topography. Force-clamp AFM has captured the stepwise unfolding of individual titin protein domains under controlled pulling force, a technique now widely used in molecular biophysics. The same principle extends to measuring Young's modulus on single cells, with reported stiffness values ranging from roughly 0.37 to 14 kilopascals depending on cell type and tip geometry.
Advantages and Limitations of AFM
AFM brings clear advantages alongside real constraints. Knowing both helps you decide where it fits your workflow.
Advantages:
- True three-dimensional surface profiling with quantitative height data, not just a visual impression
- No vacuum chamber or conductive coating required
- Works in ambient air, controlled atmosphere, or liquid
- Can exceed SEM's resolution for certain sample types, particularly in the z-direction
- Compatible with virtually any material, hard or soft, conductive or insulating
Limitations:
- Smaller field of view than SEM—Molecular Imaging standard scanners top out at 90 × 90 micrometers
- High-speed research scanners reach only about 36 × 36 micrometers at full resolution, often under 1 frame per second
- Slower than SEM, since AFM builds each image point by point through mechanical raster motion
- Sensitive to thermal drift on long scans and tip wear that degrades effective resolution
- Image artifacts from tip geometry or steep topography, where a blunt or contaminated tip "widens" fine features
Modern closed-loop piezo scanners with capacitive position sensing correct hysteresis and creep in real time, reducing these distortions compared with older open-loop systems.
How Much Does an AFM System Cost, and What Should You Consider Before Buying?
AFM pricing varies enormously, and there's no single number that applies across the board. Price depends on what your research actually needs:
- Modularity: Systems built around interchangeable nose cones and scanners cost more upfront but save money over time as research needs shift
- Resolution requirements: Sub-angstrom lateral resolution and fine z-sensitivity typically mean more sophisticated scanners and electronics
- Environmental accessories: Isolation chambers, temperature-controlled stages, and specialized liquid cells add cost but open up entirely new experiment types
- Advanced imaging modes: Support for KPFM, MFM, conductive AFM, or electrochemical imaging often requires dedicated probes or hardware modules beyond a base configuration

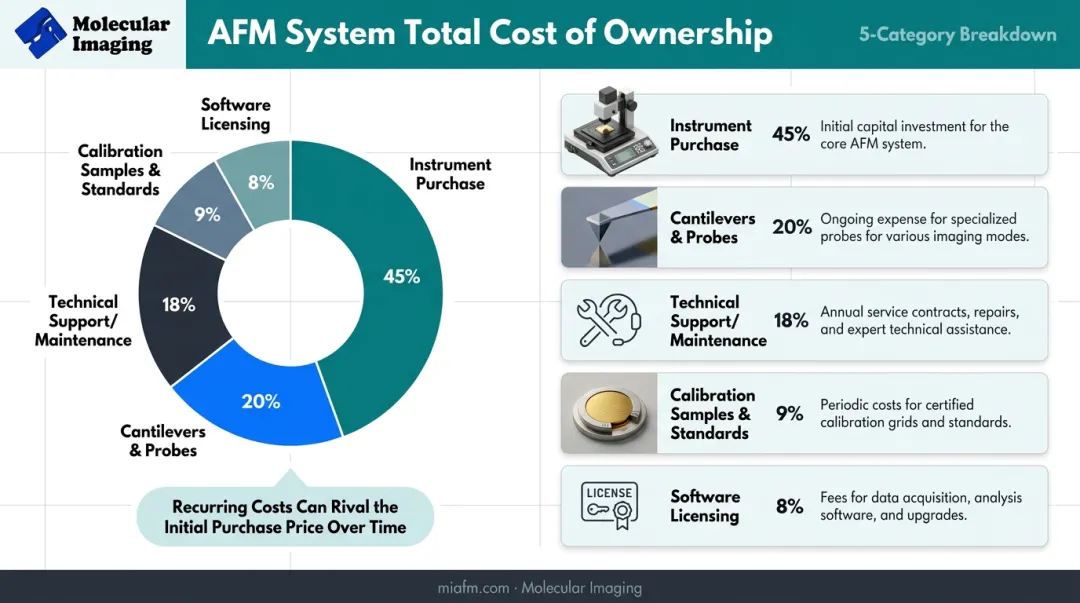

Don't stop at the sticker price on the instrument. Total cost of ownership includes recurring items:
- Cantilevers and probes, which wear out and need regular replacement depending on mode and sample hardness
- Calibration samples and reference standards for maintaining measurement accuracy
- Software licensing tied to specific acquisition or analysis modules
- Ongoing technical support, preventive maintenance, and eventual repair
Labs also need to weigh buying new against maintaining what they already have. Molecular Imaging stocks cantilevers, STM tips, calibration samples, and substrates for Agilent-era 5500 and 5420 systems through its web store.
ZoomAFM covers diagnostics, calibration, and remote or on-site support for labs keeping legacy instruments running. For many facilities, that path costs less than full replacement.
Why Researchers Choose Molecular Imaging for AFM and STM Solutions
When Keysight Technologies exited the AFM market in 2018, it left a real gap for labs that depended on Molecular Imaging's original instrument line. A group of former employees, including Dr. Song Xu, Steve Raba, John Alexander, Klaus Vicaro, and John Ris, came together to revive the company and continue building the modular systems researchers had relied on for years.
The revived company brought back the same design philosophy: modular, flexible AFM/STM systems that adapt to nanotechnology, materials science, and life science research rather than locking labs into a single fixed configuration.
Dr. Stuart Lindsay, who co-founded the original Molecular Imaging in the mid-1990s and helped pioneer in-situ imaging in fluids and gases, now serves as academic advisor to the revived team.
For labs evaluating a purchase or troubleshooting an existing system, Molecular Imaging backs its instruments with:
- A library of over 30 technical manuals and installation guides
- Video tutorials covering contact mode, tapping mode, force curves, and in-situ liquid imaging
- ZoomAFM Fast Online Service for rapid remote diagnostics or scheduled on-site repair
Whether you're speccing out a new BioAFM setup or keeping a decade-old Agilent 5500 running smoothly, that mix of institutional knowledge and hands-on support is why researchers keep coming back.
Frequently Asked Questions
What is atomic force microscopy (AFM) analysis?
AFM analysis involves scanning a sharp cantilever tip across a sample surface to measure force-based interactions at the nanoscale. The result is a high-resolution topographic map, and often additional data on mechanical, electrical, or magnetic properties.
How much does an atomic force microscope (AFM) cost?
Costs vary significantly based on system modularity, accessories like environmental chambers, and which advanced imaging modes you need. Contact Molecular Imaging for a configuration-specific quote.
What is the difference between AFM and STM?
STM measures tunneling current between a conductive tip and a conductive sample, so it only works on conductive materials. AFM measures physical force instead, which means it works on virtually any material, conductive or not.
What materials can be studied using AFM?
AFM works on polymers, semiconductors, thin films, metals, biological molecules, living cells, and 2D materials like graphene. Its main requirement is a reasonably stable surface, not a specific material type.
How is AFM different from a scanning electron microscope (SEM)?
AFM produces a true 3D surface profile without needing a vacuum or conductive coating, while SEM captures 2D projections faster and over a much larger field of view. Many labs use both techniques together for complementary data.
What are the main imaging modes used in AFM?
Contact mode drags the tip across the surface for fast imaging of hard samples. Tapping mode oscillates the tip for gentler imaging of soft or biological samples. Non-contact mode hovers above the surface entirely for the most fragile specimens.
