AFM Calibration Samples

International standards outline general requirements for testing and calibration laboratories, as well as specific guidelines for surface texture and nanoscale dimensional measurement. In scanning probe microscopy, these standards guide methodology for evaluating measurement uncertainty, verifying instrument precision, and establishing repeatable reference measurements. Adherence to standardized procedures ensures that data gathered across AFM systems and research facilities remains comparable and reliable for materials research.

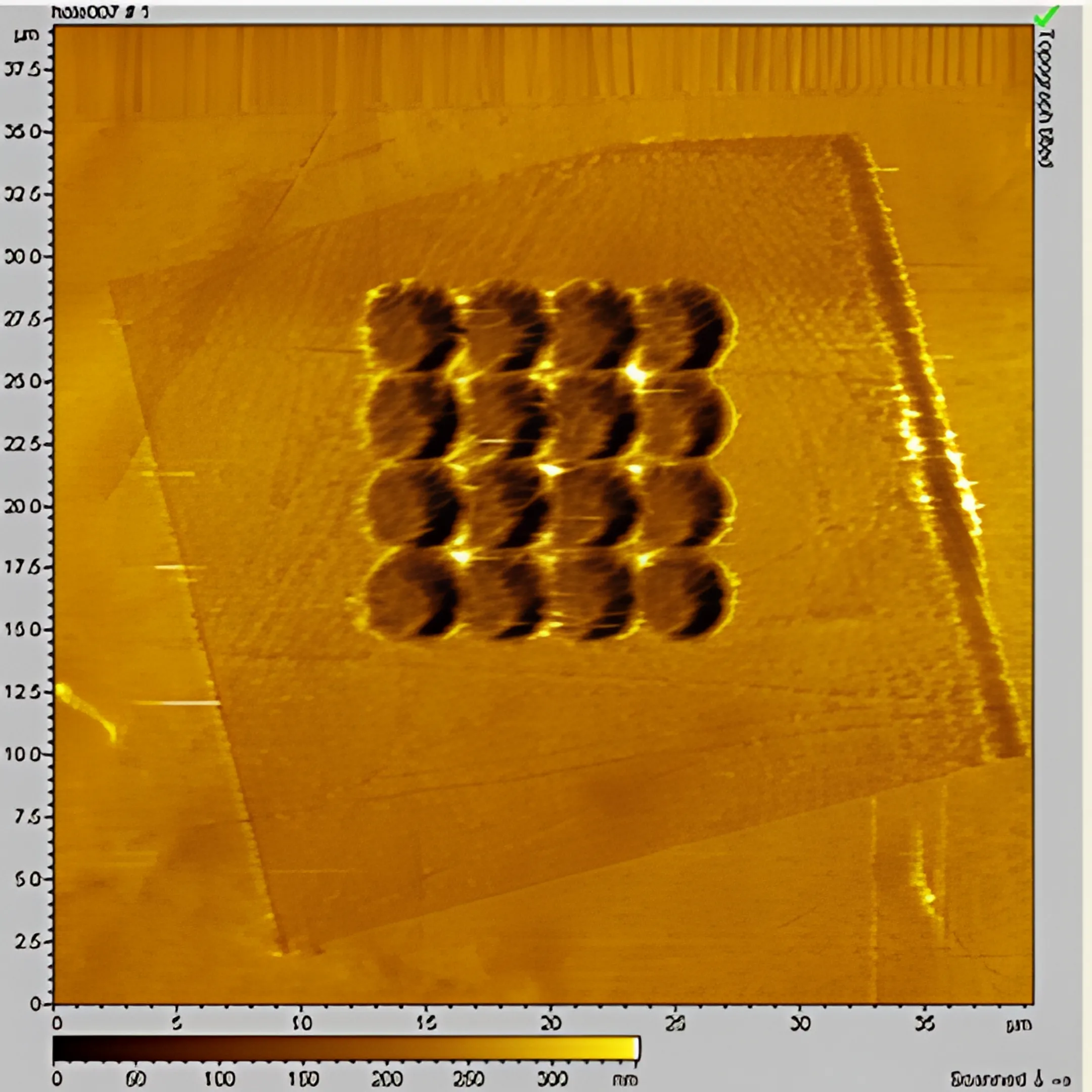

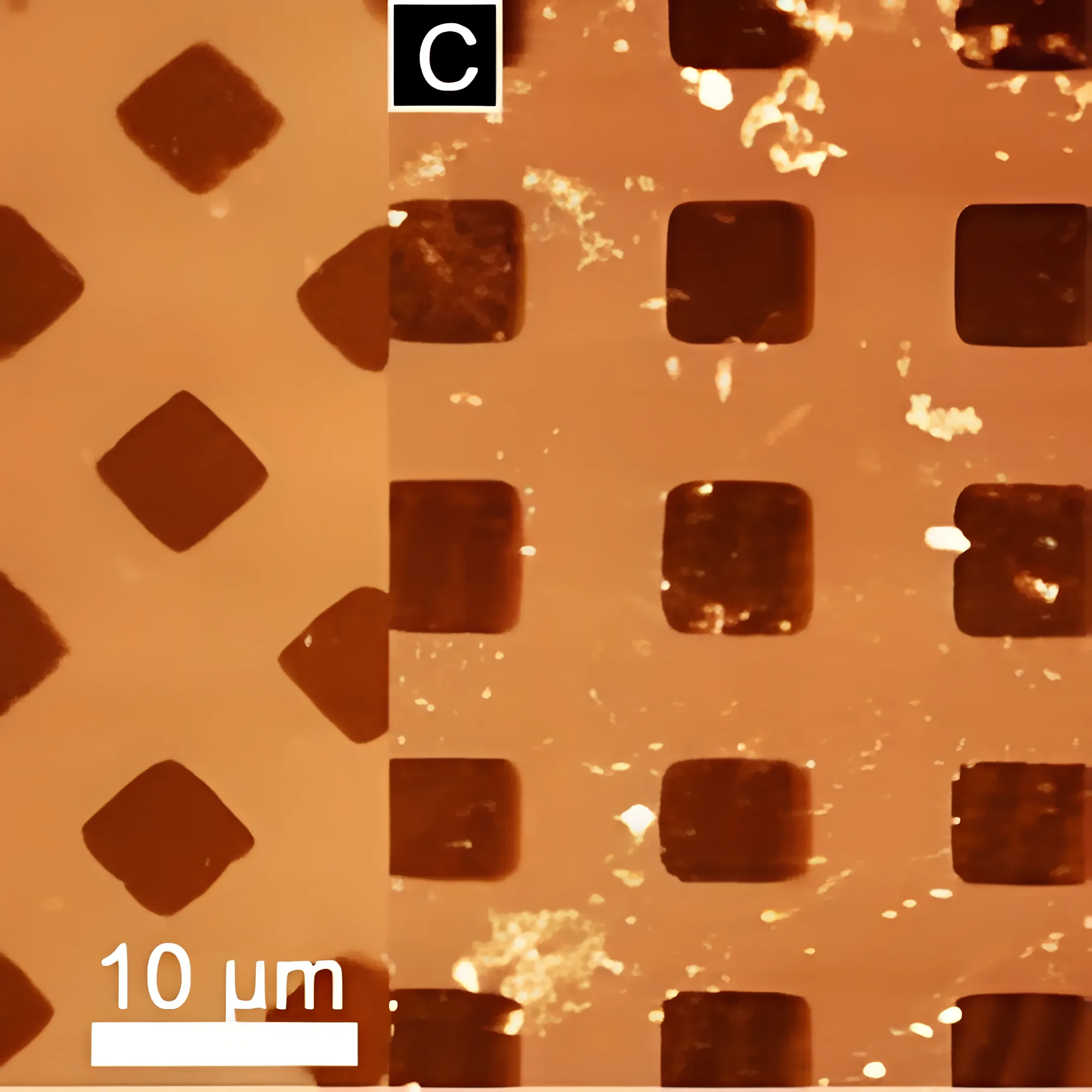

Interpreting atomic force microscopy data involves analyzing topography, phase, height profiles, and electrical signals acquired by the probe. Calibrated reference structures, such as periodic gratings and step-height standards, provide baseline values to verify that measured features accurately reflect sample dimensions. Researchers compare raw data against these known physical references to correct for instrument drift, piezo nonlinearity, or system artifacts during quantitative nanoscale analysis.

Tapping mode is an oscillating AFM imaging technique where the cantilever vibrates near its resonance frequency, lightly contacting the sample surface at the bottom of each oscillation cycle. This intermittent contact reduces lateral shear forces, preserving fragile samples and delicate tip geometries. Calibration samples are regularly imaged in tapping mode to evaluate probe tracking, resonance stability, and dimensional measurement accuracy across varied surface topographies.

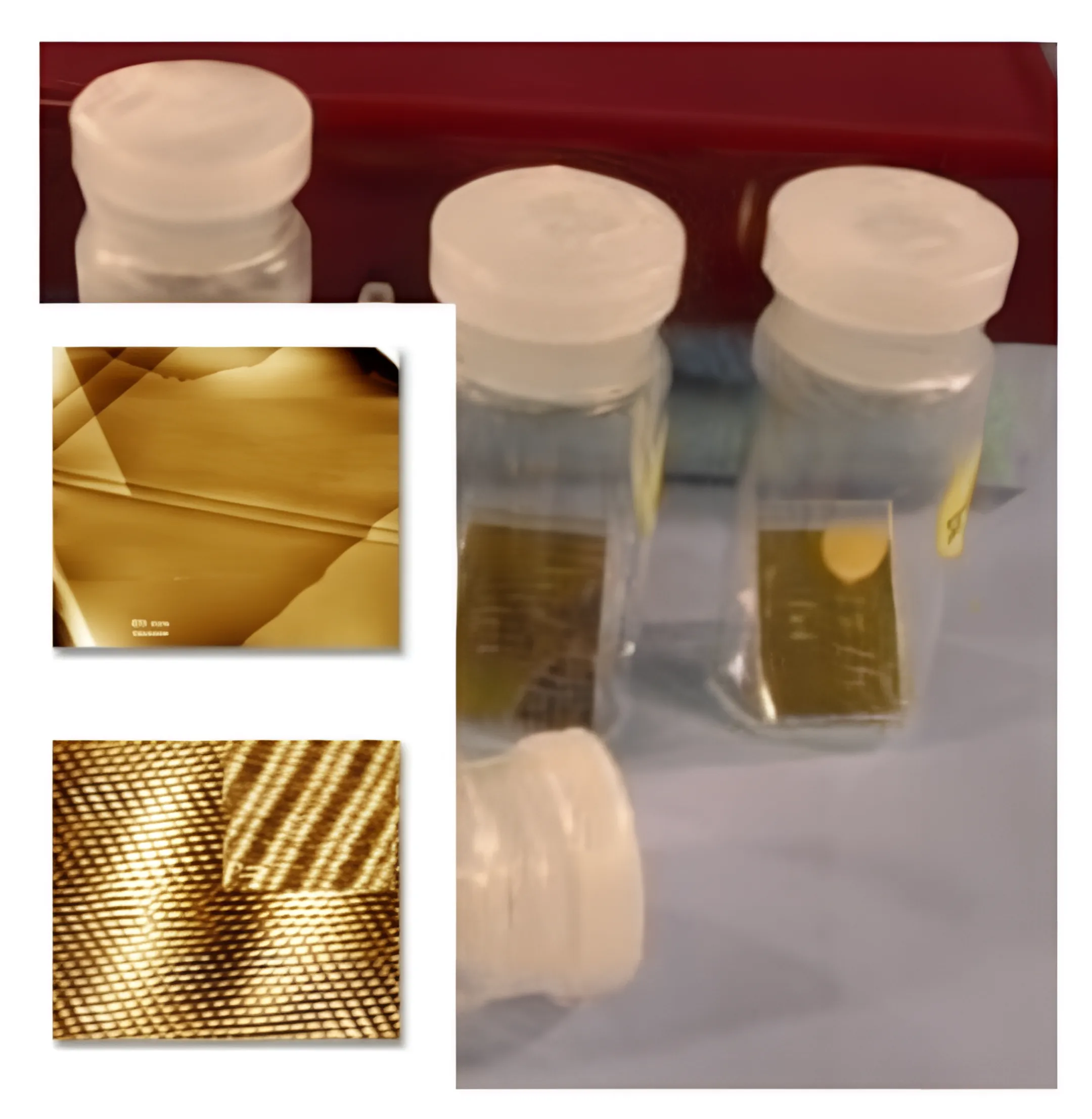

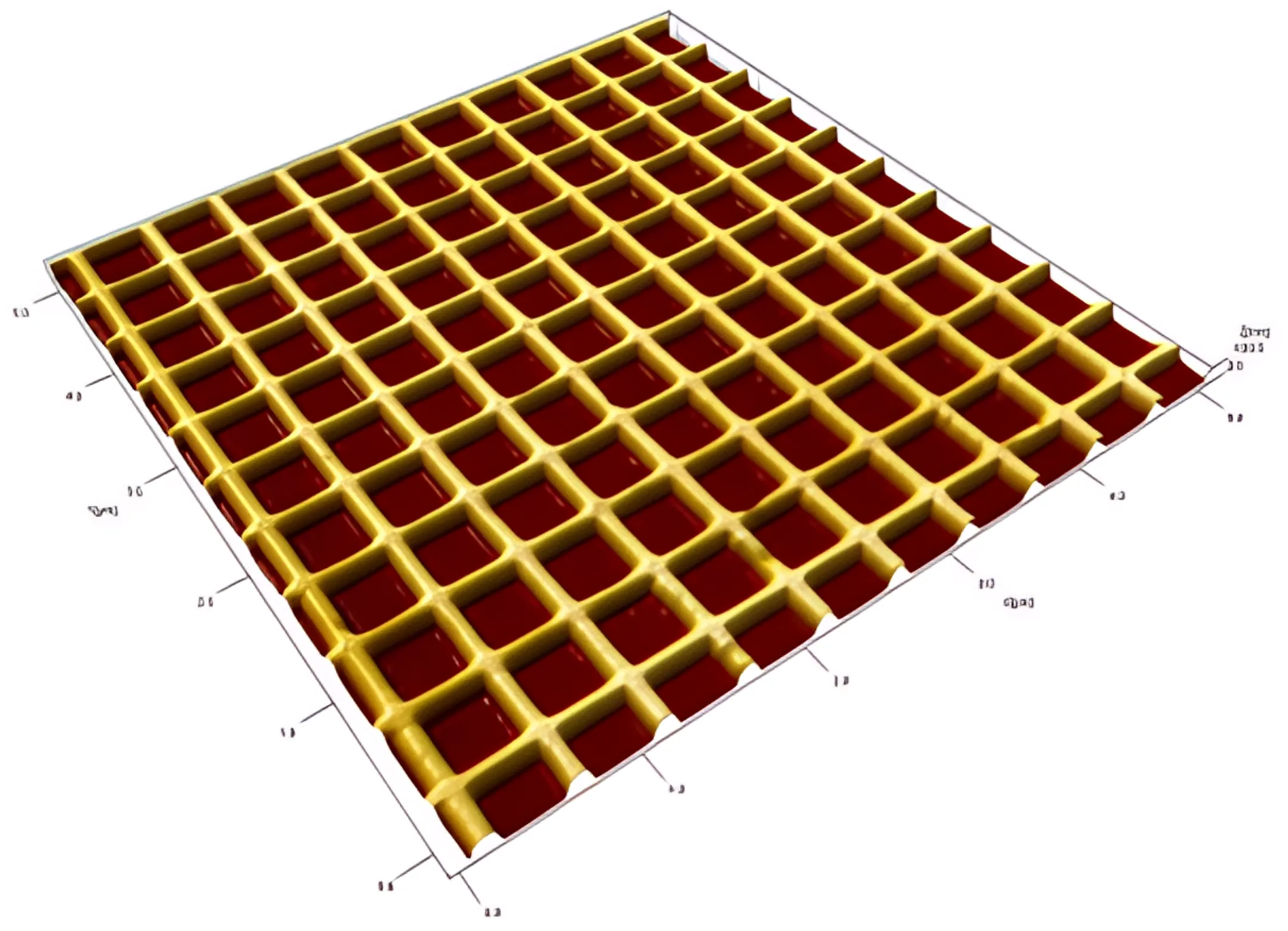

Available calibration standards include periodic gratings with defined periods, such as 500 nm structures for lateral calibration, step-height standards for vertical Z-axis verification, and dopant calibration standards for scanning capacitance microscopy. Additionally, gold thin films deposited on mica substrates and atomically flat mica substrates are offered to support surface characterization, roughness measurement, and instrument performance validation.

Step-height calibration standards feature precisely defined vertical steps that serve as physical references for the vertical Z-axis of an atomic force microscope. By scanning across these known step features, researchers calibrate Z-axis piezo sensitivity and verify vertical measurement accuracy. This process provides a repeatable reference essential for routine instrument performance checks and quality control across dimensional nanometrology applications.

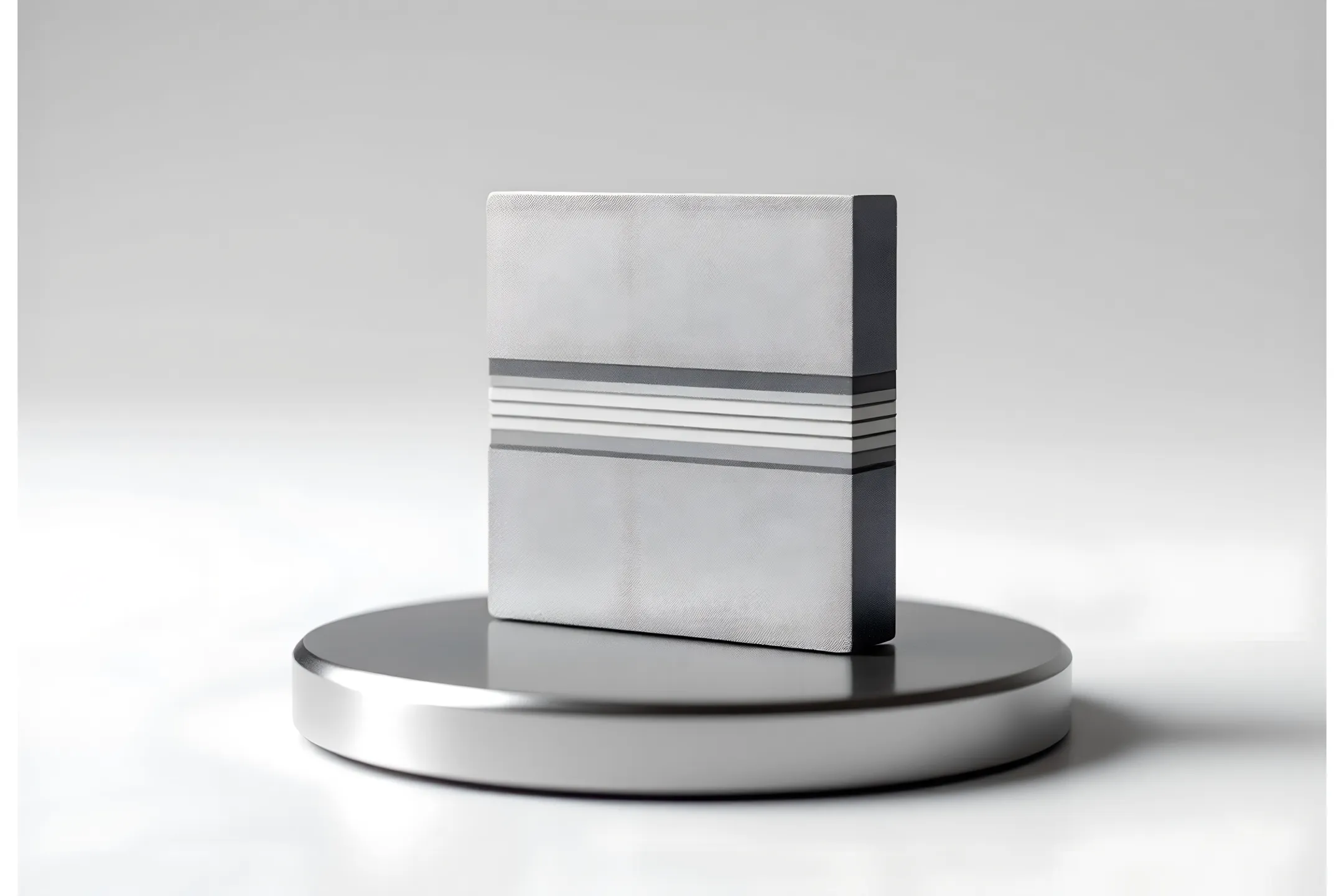

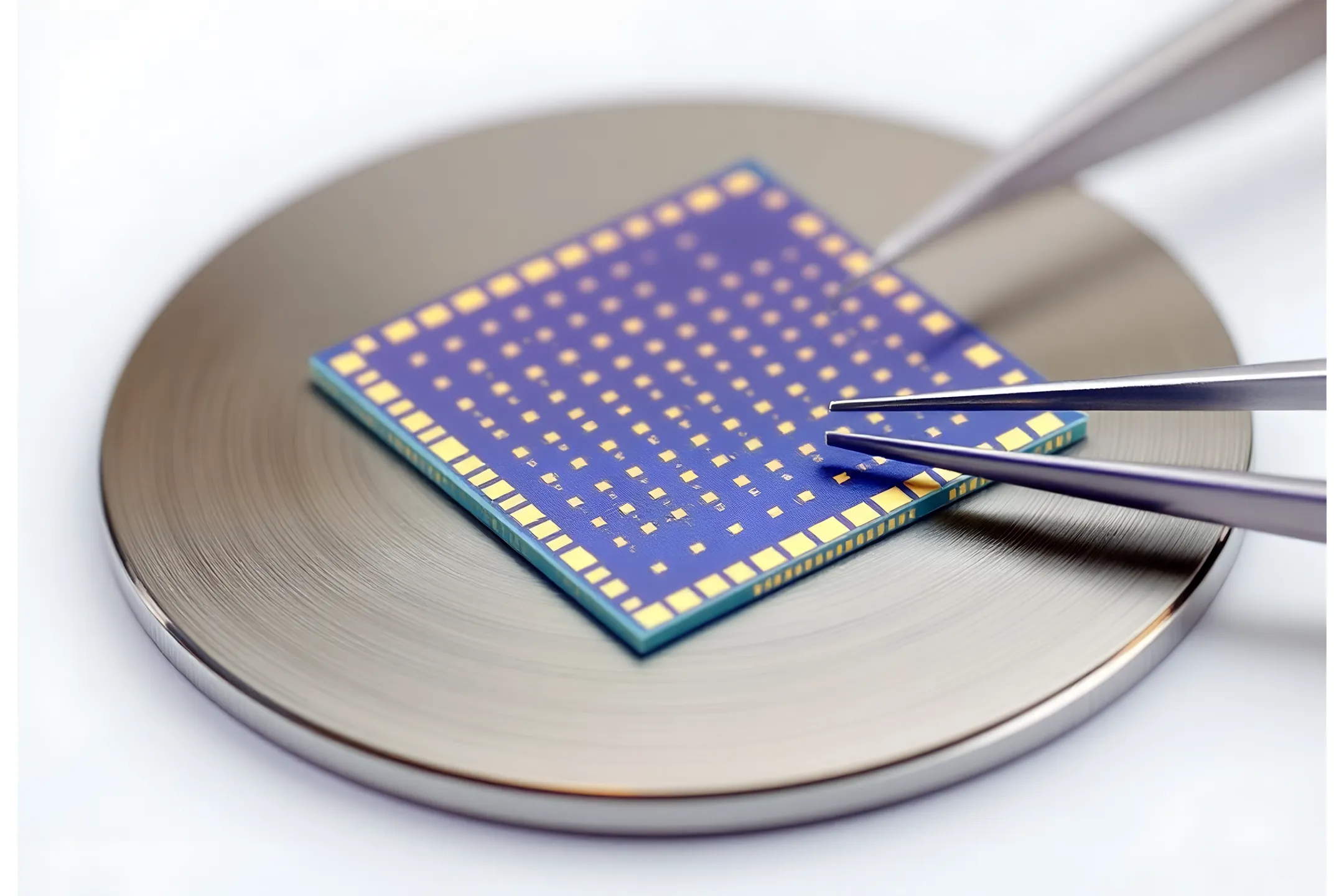

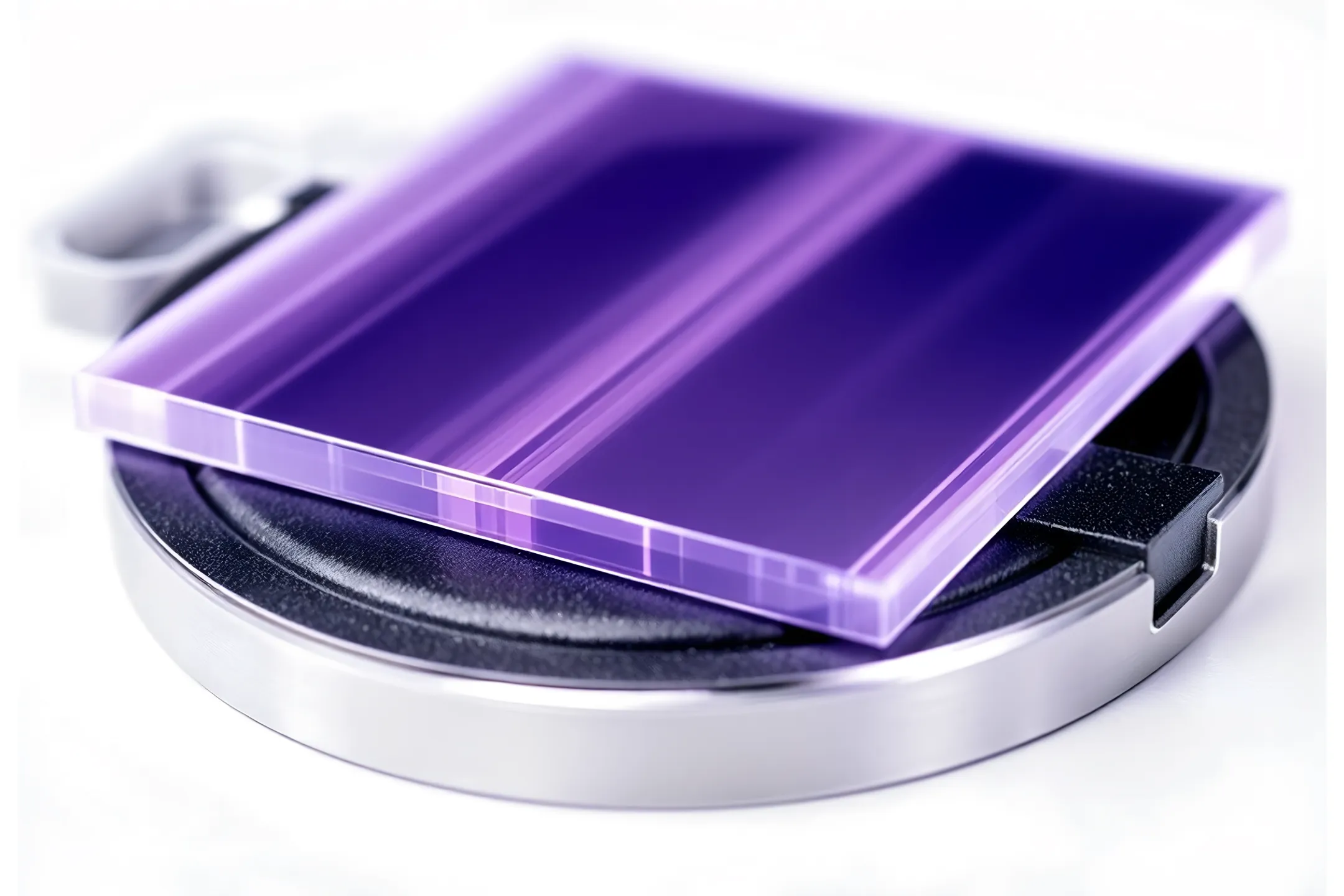

Dopant calibration standards provide known n-type or p-type dopant regions to enable quantitative calibration of dopant-profiling techniques, including scanning capacitance microscopy and scanning microwave microscopy. These reference samples allow researchers to perform reproducible electrical characterization and dopant concentration profiling on semiconductor devices, ensuring consistent measurement response and accurate validation during advanced materials and device research.
