Introduction
Standard atomic force microscopy has a blind spot. It can image a surface in air. It can image a surface sitting quietly in liquid. But it can't show you what happens at an electrode-electrolyte interface while a battery charges, a metal corrodes, or copper plates onto gold in real time.
That gap is a real research problem. Reactions like solid-electrolyte interphase (SEI) formation happen in seconds to minutes. Pull the electrode out to image it, and the surface has already changed.
Electrochemical Atomic Force Microscopy (EC-AFM) closes that gap. It pairs conventional AFM imaging with live electrochemical control so researchers can watch surface morphology shift at the nanometer scale while a reaction runs.
This article covers how EC-AFM works and where it is applied in battery, corrosion, and materials research. It also outlines practical lab challenges and what to look for when building or upgrading an EC-AFM setup.
Key Takeaways
- EC-AFM pairs standard AFM imaging with a three-electrode electrochemical cell to observe surfaces during live reactions
- Battery SEI research, corrosion studies, and electrodeposition rely on it for in-situ, nanoscale detail
- PeakForce tapping mode outperforms contact mode on fragile interfaces like the SEI
- Electrolyte choice, cantilever compatibility, and corrosion-resistant cell design determine image quality and artifact control
What Is EC-AFM?
EC-AFM is a scanning probe technique that integrates classical AFM with electrochemical measurements to study the solid-liquid interface in situ. Instead of just imaging a static sample, the AFM operates while a potentiostat actively drives a reaction on the surface.
The key structural difference from conventional AFM: the probe tip becomes a passive, non-conductive observer. The sample itself acts as the working electrode. This matters because it means the tip doesn't interfere electrically with the reaction it's imaging.
A Brief History
The earliest documented use of AFM in an electrochemical environment traces to 1991, when Manne and colleagues imaged potential-controlled copper deposition and stripping on gold at atomic resolution, according to their study published in Science.
That work built on the electrochemical STM concept Itaya and Tomita introduced in 1988, which used a conductive tip to track potentiostatic silver deposition and dissolution. A 1996 Kouzeki paper on electrochromism in naphthalocyanine thin films is sometimes linked to early EC-AFM development, though the paper itself does not describe an AFM role.
EC-AFM vs. EC-STM
The distinction comes down to what the tip senses:
- EC-AFM uses a non-conductive tip held at floating potential, so it doesn't participate in the electrochemistry. It works on conductive and non-conductive samples alike — metals, oxides, solid electrolytes, polymers.
- EC-STM measures tunneling current, requiring an electrically conductive path between tip and sample. It's limited to conductive surfaces.
That flexibility on real electrode materials is one reason in situ methods moved from specialty setups into routine materials work. A December 2022 literature search found 22,391 records referencing "battery and operando" or "battery and in situ" in the title, abstract, or keywords, with 8,411 mentioning cathodes and 9,569 mentioning anodes, according to research published in ACS Materials Letters.
EC-AFM belongs in that shift: it lets researchers watch surface reactions as they happen instead of reconstructing them afterward.
How EC-AFM Works: Setup and Core Principles

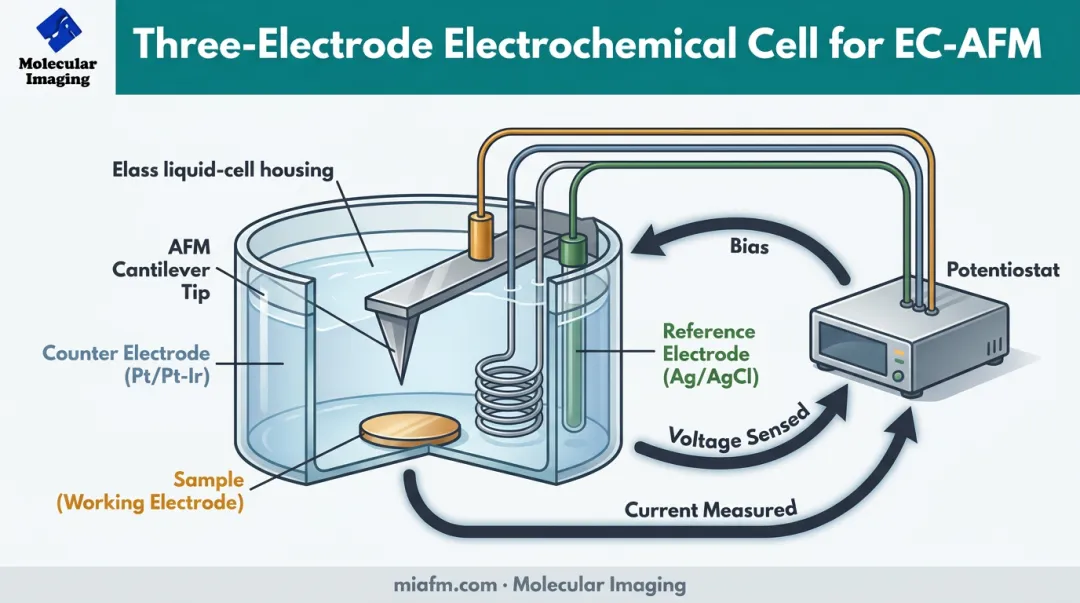

The Three-Electrode Electrochemical Cell
Every EC-AFM setup runs on the same electrochemical backbone:
- Working electrode — the sample being imaged, where the reaction of interest occurs
- Counter electrode — typically platinum or platinum-iridium wire, carrying current to close the circuit
- Reference electrode — commonly Ag/AgCl, providing a stable potential baseline
- Potentiostat — governs applied voltage or current, either holding potential while measuring current, or vice versa
For battery research specifically, configurations shift: a lithium-on-copper setup might use copper foil as the working electrode with lithium metal serving as both reference and counter electrode.
Specialized Hardware for Liquid-Environment Imaging
Submerging an AFM cantilever in electrolyte introduces problems a dry-air setup never faces. The liquid probehead design solves two of them:
- Piezo insulation — the piezo actuator must be sealed off from fluid to avoid electrical shorting
- Optical clarity — a glass window reduces unwanted reflection at the air-liquid boundary so the laser deflection signal stays clean
Cell bodies also need to survive the electrolyte in use. EC cells are commonly built from chemically resistant plastics such as PEEK, which holds up mechanically, thermally, and chemically against acids and aggressive solutions.
Platforms like Molecular Imaging's PicoPlus 5500 Series support acid-, base-, and organic-solvent liquid imaging—a baseline requirement for real electrochemistry beyond plain aqueous work.
Imaging Modes and Electrochemical Techniques
Not every imaging mode survives contact with a delicate reacting surface.
| Mode | Force Control | Best For |
|---|---|---|
| Contact mode | Continuous tip-surface contact, higher lateral force | Robust, hard surfaces |
| PeakForce tapping | Force curve at every pixel, taps and retracts | Soft, fragile interfaces like the SEI |
PeakForce approaches can reduce applied force to roughly 10 piconewtons, according to a 2024 review in Annual Review of Analytical Chemistry. That force level is gentle enough to avoid disturbing a freshly formed SEI layer that contact mode would likely tear apart.
EC-AFM is almost always paired with an electrochemical technique running in parallel, most commonly cyclic voltammetry, alongside controlled current or potential sequences. This pairing lets you correlate a specific voltage sweep or current step with the morphology change forming on the surface in real time.
Key Applications of EC-AFM Across Research Fields
Battery Interface and SEI Research
Battery interfaces are where EC-AFM has had its biggest research impact. Model surfaces like highly oriented pyrolytic graphite (HOPG) let researchers watch SEI form, thicken, and evolve during the first charge-discharge cycle.

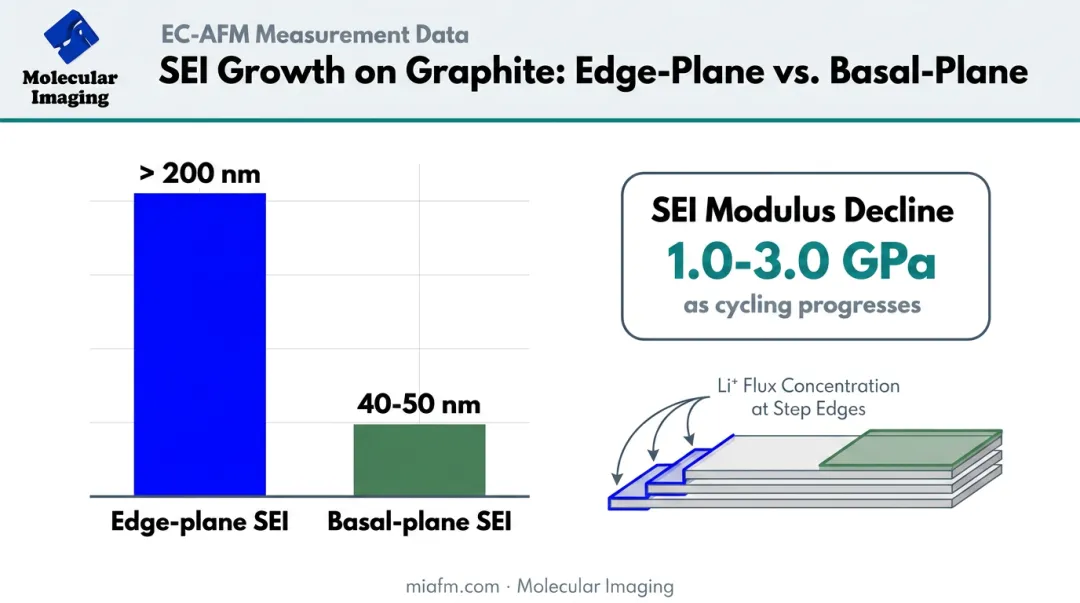

One operando PeakForce EC-AFM study tracking graphite in a standard lithium-ion electrolyte reported, per research published in PMC:
- Edge-plane SEI exceeding 200 nm in thickness
- Basal-plane SEI at only 40-50 nm
- SEI modulus dropping to 1.0-3.0 GPa as cycling progressed
Why the difference at edges? Higher lithium-ion flux concentrates at step edges where ions enter between graphite layers, driving thicker SEI accumulation exactly where reactivity is highest.
Corrosion Studies
EC-AFM captures surface roughening in real time as metal corrodes. Contact-mode imaging of high-chromium cast iron in 3.0 wt% sodium chloride solution revealed faster matrix dissolution near carbide boundaries and sharp edges, where corrosion typically starts.
The same approach evaluates inhibitors. Researchers have used EC-AFM to show:
- Sodium heptanoate forming a protective layer on copper at pH 8, but failing at pH 5.7 and pH 11
- Polyacrylic acid adsorbing onto cast aluminum, becoming more ordered when iodide is added
Electrodeposition and Nanofabrication
Manne's original 1991 work tracking copper deposition and stripping on gold set the template still used today: watch bulk metal deposit, strip back to a monolayer, then return to bare substrate, all while correlating lattice spacing changes with electrolyte composition.
EC-AFM has since extended into fabrication itself. Electrochemical "dip-pen" nanolithography uses the AFM tip to write metal and semiconductor nanostructures directly, with feature height tunable through experimental conditions.
Polymer and Materials Science
Conductive polymers like polyaniline swell and contract as their electrochemical state changes. EC-AFM has tracked these reversible volume changes across polyaniline islands, films, and nanowires in acidic electrolytes, connecting mechanical behavior directly to redox state.
Challenges and Best Practices in EC-AFM Measurements
Electrolyte selection matters more than it seems. Solutions need enough optical transparency for reliable laser deflection, but concentration also changes double-layer screening and interfacial behavior. Diluting purely for optical convenience can distort the electrochemistry you're trying to study.
Liquid also damps cantilever resonance and lowers the Q-factor. That reduces force sensitivity unless you recalibrate for the liquid environment.
Artifacts multiply during dynamic imaging. Skipped horizontal lines are one of the more common giveaways that you're seeing a scanning artifact rather than genuine surface change. Other risks include:
- Scan drift during long acquisitions
- Laser misalignment as refractive index shifts
- Reactions happening faster than the scan rate can capture
Repeat scans under the same conditions are the standard way to confirm whether a feature is real morphology or a one-off glitch.
Operando beats ex-situ whenever it's feasible. Moving an electrode out of its electrochemical cell for separate AFM analysis risks damage, degradation, and inconsistent repositioning. Delicate structures like the SEI are especially vulnerable during cell deconstruction and rinsing.
Recording morphology and electrochemistry simultaneously avoids that risk entirely.
Choosing the Right EC-AFM System for Your Lab
Not every AFM platform is built for electrochemistry. A few features separate a system that handles EC-AFM well from one that struggles with it:
- Modular design that lets you swap AFM, STM, and electrochemical configurations without rebuilding the setup
- External potentiostat compatibility for cyclic voltammetry and controlled current or potential sequences
- Environmental and temperature control for conditions from sub-ambient cooling to elevated-temperature reactions

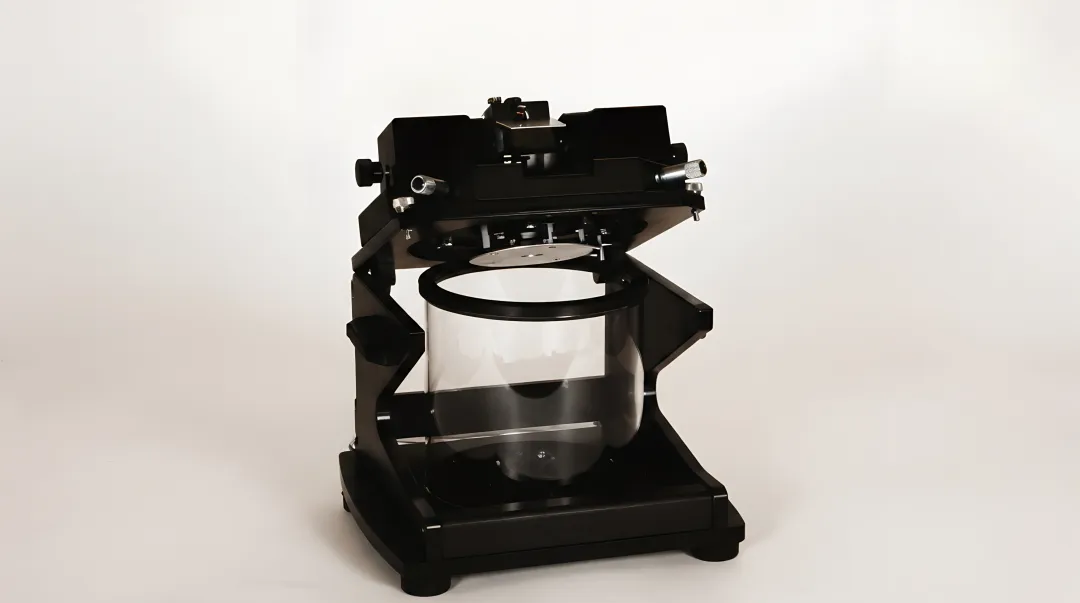

Molecular Imaging's modular AFM/STM platforms, including the PicoPlus 5500 Series, are built around this kind of flexibility. They support acid-, base-, and organic solvent-compatible liquid cells, co-axial optical access for watching reactions as they run, and temperature-controlled stages from -30°C to 250°C with anti-drift design so imaging stays stable as conditions change.
The same ecosystem covers day-to-day needs: liquid tapping cantilevers, gold-on-mica substrates for model electrodes, and calibration samples, plus ZoomAFM calibration and repair support for labs that keep systems running for years.
When you plan the lab around that platform, morphology still isn't the whole story. Pairing EC-AFM with XPS or Raman adds chemical composition data AFM cannot supply on its own, so you see not only how a surface changed shape but what it is made of.
Frequently Asked Questions
What is the difference between AFM and EC-AFM?
Standard AFM images surfaces in air or static liquid without any electrochemical control. EC-AFM adds a three-electrode cell and potentiostat, letting researchers observe surface changes while a reaction is actively driven.
Is it possible to study real battery electrodes with AFM, or only model systems?
Real electrodes can be studied, but their roughness limits achievable resolution. Model surfaces like HOPG are used first because they cleave into large, flat, reproducible areas ideal for nanoscale imaging.
Why is peak force tapping mode preferred over contact mode for EC-AFM?
Peak force tapping runs a force curve at every pixel, tapping and retracting rather than dragging continuously. The brief contact keeps applied force low enough to avoid damaging soft, fragile materials like the SEI.
Can EC-AFM determine the chemical composition of a surface layer like the SEI?
Not on its own. EC-AFM primarily measures mechanical and morphological properties, so techniques like XPS or Raman spectroscopy are typically needed to identify actual chemical composition.
How stable are AFM cantilevers when exposed to electrolyte solutions?
Properly selected cantilevers hold up well in common battery electrolytes without significant corrosion or performance loss, though material choice should match the specific electrolyte chemistry.
What is the difference between EC-AFM and EC-STM?
EC-STM requires a conductive tip and conductive sample since it measures tunneling current. EC-AFM uses a non-conductive tip and works on both conductive and non-conductive materials.
