Prices span an enormous range. According to Nanosurf, a basic system can run a few thousand dollars, while top-end research platforms exceed $500,000. That's a wider spread than almost any other lab instrument category.
This guide breaks down AFM pricing tiers, the specific factors that push costs up or down, the full cost of ownership beyond the purchase price, and how to budget for a system that actually fits your research.
Key Takeaways
- Lab-grade AFM systems typically cost $20,000 to $300,000+; DIY and educational units start near $4,000
- Resolution, imaging modes, and automation push prices higher; topography-only units stay lower
- Sub-50-picometer noise floors for battery, bio, and conductive work raise system cost substantially
- Factor probes, calibration, and service into total cost of ownership, not just sticker price
AFM Pricing at a Glance
There's no fixed price list for atomic force microscopes because cost depends on scanner type, resolution requirements, automation level, and the specific modes your application needs. Even major manufacturers frame their pricing conversations around "it depends."
That ambiguity trips up a lot of first-time buyers. The most common budgeting mistakes include:
- Underbudgeting for accessories and training: probes, calibration samples, and operator training often cost extra
- Buying a non-scalable configuration: a new research direction may need a mode the system doesn't support
- Ignoring recurring probe and maintenance costs: these add up over multi-year ownership

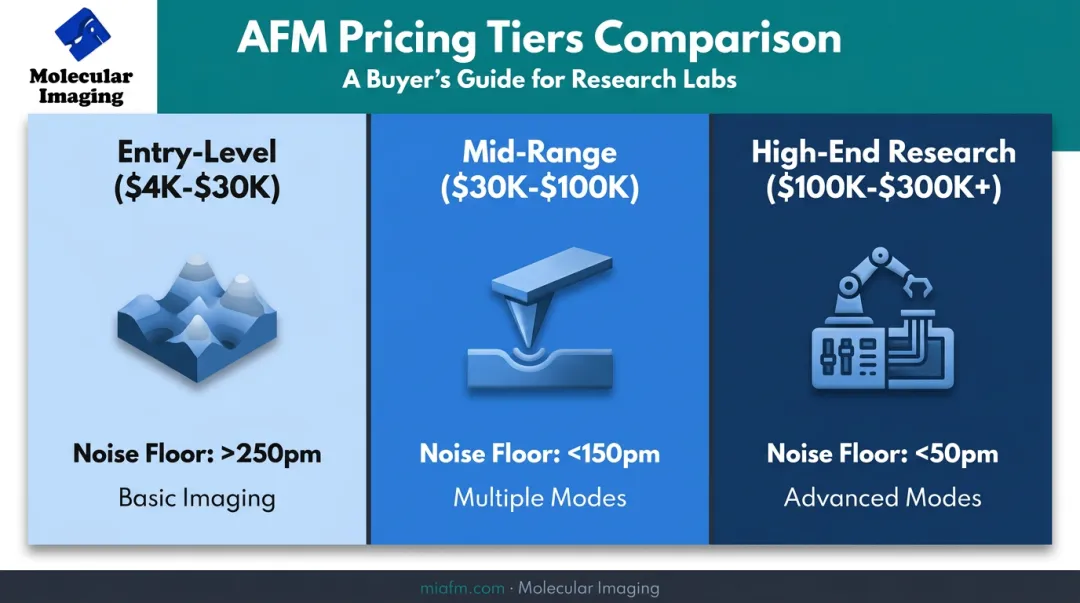

AFM systems fall into three broad price tiers:
| Tier | Typical Range |
|---|---|
| Entry-level | $4,000–$30,000 |
| Mid-range | $30,000–$100,000 |
| High-end research | $100,000–$300,000+ |
Ultra-specialized, fully automated, or industrial platforms can push past $500,000.
AFM Pricing by Tier
Entry-Level AFM ($4,000–$30,000)
Entry-level systems cover basic optics, a limited set of imaging modes, and a noise floor typically above 250 picometers. They're built for straightforward topography imaging, not atomic-scale precision.
- Common in teaching labs and university coursework
- Popular for DIY and open-source builds: one peer-reviewed open-source AFM design published in HardwareX reported total hardware costs under $4,000
- Best suited for simple sample screening rather than publication-grade data
If your work is educational or exploratory, this tier gets you imaging capability without a major capital outlay. Just don't expect atomic resolution or advanced electrical/magnetic modes.
Mid-Range AFM ($30,000–$100,000)
This is where most working research labs land. Mid-range systems are tabletop or standalone units offering multiple scan head options and several imaging modes, with a noise floor generally below 150 picometers.
- Reliable for university and industrial research applications
- Doesn't require "expert-level" customization to operate day to day
- Good balance of capability and cost for labs running routine characterization work
For most labs doing routine characterization, this range covers day-to-day needs without overbuying.
High-End/Research AFM ($100,000–$300,000+)
At the top tier, systems add automation, lower noise, and specialized modes built for demanding nanoscience work.
- Motorized stages with automated focus and analysis software
- Noise floors below 50 picometers
- Advanced modes: conductive AFM, electrostatic force microscopy (EFM), electrochemical AFM
This tier fits battery research, polymer characterization, and bio-imaging that need maximum precision. Modular platform design also starts to matter more than raw specs here.
Molecular Imaging's AFM/STM systems, for example, use interchangeable nose cones and temperature-controlled stages spanning -30°C to 250°C. That flexibility lets a lab add conductive AFM, MFM, or electrochemical capability later without replacing the whole instrument.

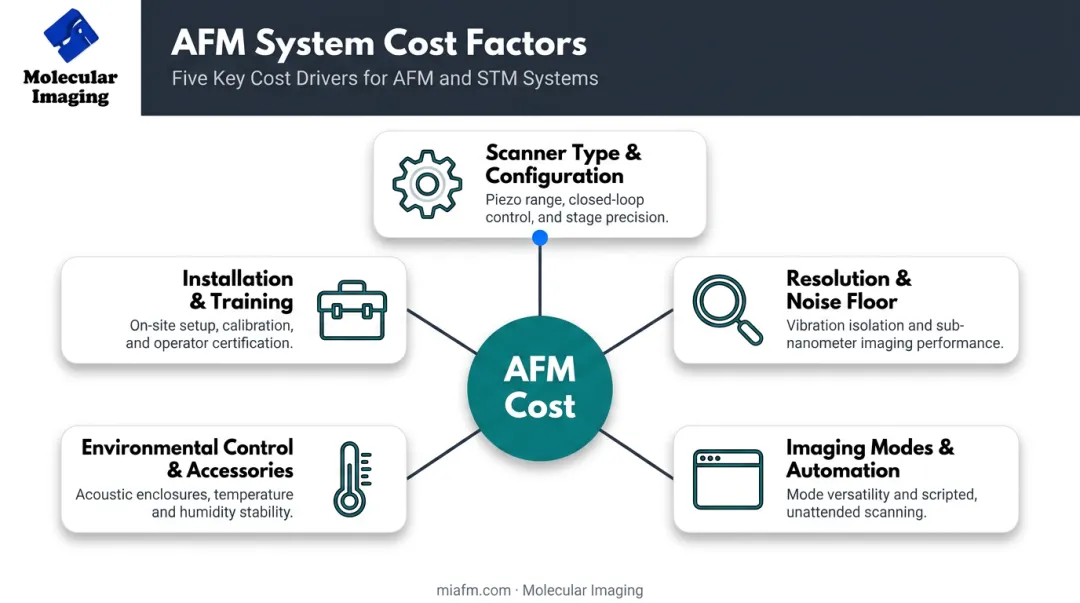

Key Factors That Affect the Cost of an AFM
AFM pricing isn't arbitrary. It reflects a combination of technical specifications, application requirements, and the support you'll need after purchase.
- Scanner type and configuration: Tip-scanning designs (probe moves over a fixed sample) and sample-scanning designs (sample moves under the probe) carry different base costs. Modular platforms also price differently than fixed standalone units.
- Resolution, scan range, and noise floor: Atomic-level lateral resolution and sub-angstrom vertical resolution need higher-grade detection electronics and vibration isolation, both costly to engineer.
- Imaging modes and software automation: Specialized modes like conductive AFM, magnetic force microscopy (MFM), electrochemical AFM, and STM each add cost, as does automated measurement software.
- Environmental control and accessories: Temperature-controlled stages, environmental isolation chambers, and liquid cells for biological imaging expand what a system can do, and what it costs.
- Installation, training, and support: On-site setup, operator training, and extended service or warranty packages are frequently priced separately from the base unit.
A system quoted at $80,000 with a conductive AFM module and an environmental chamber can easily land closer to $120,000 once accessories are added. Ask for an itemized quote before comparing prices across vendors.
Cost of Ownership: Beyond the Purchase Price
The sticker price is just the entry point. A realistic AFM budget accounts for costs across the instrument's full lifecycle.
| Cost Category | Timing | What It Covers |
|---|---|---|
| Initial purchase | One-time | Scanner, controller, standard software license |
| Installation & training | One-time | On-site or remote setup, operator training |
| Probes & cantilevers | Recurring | Consumable tips, typically tens to hundreds of dollars each |
| Maintenance & repair | Recurring | Calibration, part replacement, troubleshooting |
| Upgrades | Periodic | New modes, scanners, or automation as needs evolve |
Installation and training costs vary widely, from a few hundred dollars for a simple remote setup to over $10,000 for complex on-site installations with hands-on operator training.
Probes deserve special attention because they wear out. AFM probes are consumables, not one-time purchases. Specialized tips (conductive, diamond-coated, live-cell) cost more than standard contact-mode versions.
Molecular Imaging's web store stocks cantilevers across imaging modes, STM tips, calibration samples, and mica substrates so labs can keep systems running without long lead times.
Maintenance is the cost most buyers underestimate. Aging systems eventually need calibration, part replacement, or full repair, and finding support gets harder once a manufacturer discontinues a platform. Molecular Imaging's ZoomAFM service fills that gap with evaluation and repair for AFM and STM systems that might otherwise sit unused.
Low-Cost vs. High-Cost AFM: What You're Really Paying For
Price tracks performance, not quality labels. Budget and premium AFMs both serve real lab needs.
| Factor | Budget AFM | Premium Research AFM |
|---|---|---|
| Performance | Basic topography imaging | Multiple advanced modes, higher scan speeds |
| Noise floor | Often above 250 pm | Often below 50 pm; some systems reach 15 pm |
| Automation | Manual positioning | Motorized stages, automated focus and setup |
| Long-term value | More frequent recalibration | Better durability, modular upgrade path |
The gap matters most when your research trajectory is still taking shape. A grad student running a semester project does not need a $200,000 instrument.
A materials lab planning five years of battery or polymer work should avoid the cheapest option. Recalibration frequency and limited upgrade paths often cost more in downtime than the upfront savings.

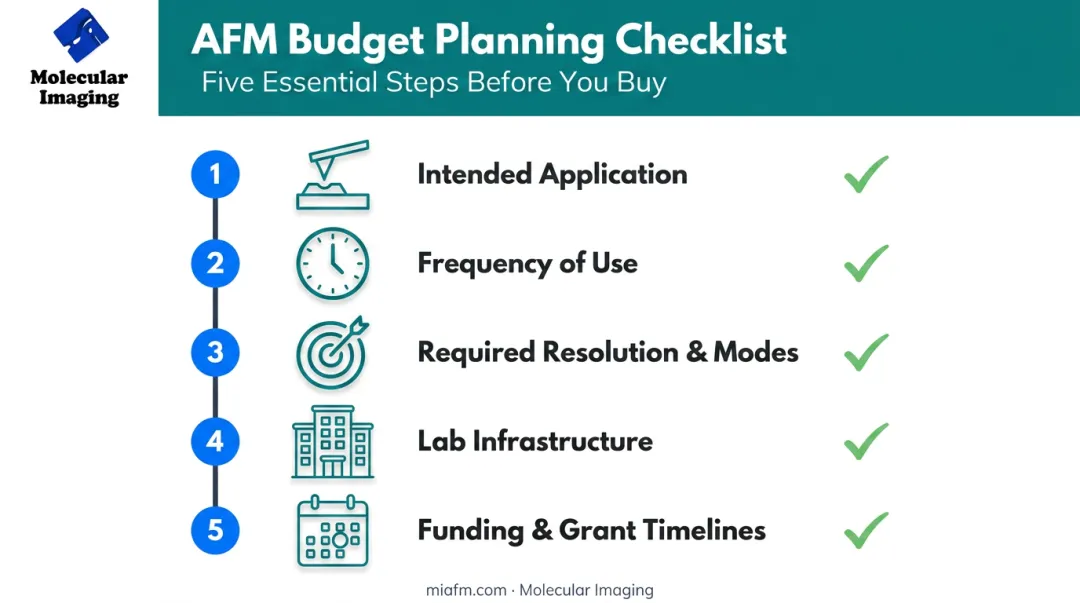

How to Estimate the Right AFM Budget for Your Lab
The right AFM budget is the configuration that fits your research goals, not the lowest number on a spec sheet.
Weigh these factors before requesting quotes:
- Intended application: education and basic screening need far less than advanced materials or bio-research
- Frequency of use: a shared core facility instrument justifies more automation than an occasional-use system
- Required resolution and modes: don't pay for sub-50-picometer performance you won't use
- Lab infrastructure: vibration isolation, bench space, and environmental controls affect what you can install
- Funding and grant timelines: some purchases need to align with fiscal-year deadlines
Common mistakes worth avoiding:
- Focusing only on the upfront price
- Ignoring recurring probe and maintenance costs
- Over-specifying features the research does not need
- Choosing the cheapest vendor without checking reliability or support history
Before committing, request a detailed, itemized quote and talk to people who've actually run these instruments. Molecular Imaging's team of former AFM engineers, working with academic advisor Dr. Stuart Lindsay, helps labs match system specs to real research needs instead of overbuilt configurations.
Conclusion
AFM costs vary enormously, from a few thousand dollars for a basic educational unit to $300,000 or more for an advanced research system with automation, multiple modes, and sub-50-picometer resolution. The variance isn't arbitrary; it maps directly to what the instrument can actually do.
Understanding the full cost breakdown — purchase price, installation, consumable probes, maintenance, and eventual upgrades — leads to fewer budget surprises down the line. The strongest AFM investment balances precision, reliability, and long-term support against what your research actually requires.
Frequently Asked Questions
What is the cost of an AFM instrument?
Lab-grade AFM systems typically range from $20,000 to $300,000+, depending on configuration. Final price depends on resolution, imaging modes, and automation level.
What is the cheapest type of atomic force microscope available?
Entry-level and open-source/DIY AFM builds can cost as little as about $4,000 in hardware. They trade resolution and mode support for that lower price point.
How much does an AFM probe or cantilever cost?
Probes are consumable items typically priced from $35 to $150 or more each, depending on specialization. Diamond-coated, conductive, and live-cell probes cost more than standard contact-mode tips.
Is it worth buying a used or refurbished AFM instead of new?
Refurbished systems can cut upfront cost, sometimes starting around $9,000. Confirm the seller provides a warranty and ongoing repair support before buying—unofficial channels often leave you without either.
How much does AFM repair or maintenance typically cost?
Repair costs depend on the fault, from routine calibration to full component replacement. Molecular Imaging’s ZoomAFM service evaluates and repairs aging AFM and STM systems to extend working life.
Is an AFM more expensive than an SEM?
Price ranges for AFM and SEM systems overlap significantly. However, AFM typically requires no vacuum system, which can lower long-term operating costs compared to electron microscopes.
