That's the problem vibration isolation solves. Building sway, HVAC rumble, foot traffic, and even distant elevators inject motion into your imaging system that passive isolation tables often can't fully suppress. Active vibration isolation systems exist specifically to close that gap.
This guide covers what active vibration isolation systems are, how they differ from passive approaches, why nanoscale instrumentation depends on them, and how to select the right system for your lab.
Key Takeaways
- Active systems cancel low-frequency vibration in real time with sensors and actuators; passive systems only absorb energy mechanically.
- AFM and STM need sub-nanometer stability—low-frequency floor motion that passive tables miss can ruin measurements.
- Pick a system based on floor type, your building’s vibration spectrum, and your instrument’s sensitivity requirements.
What Is an Active Vibration Isolation System?
An active vibration isolation system is a feedback- or feed-forward-controlled platform that detects incoming vibration and actively cancels it in real time, rather than simply absorbing it.
Manufacturer Herzan describes feed-forward systems as programmed to compensate for predictable periodic vibration, while feedback systems continuously sense and react to whatever motion arrives (Herzan).
Core Components

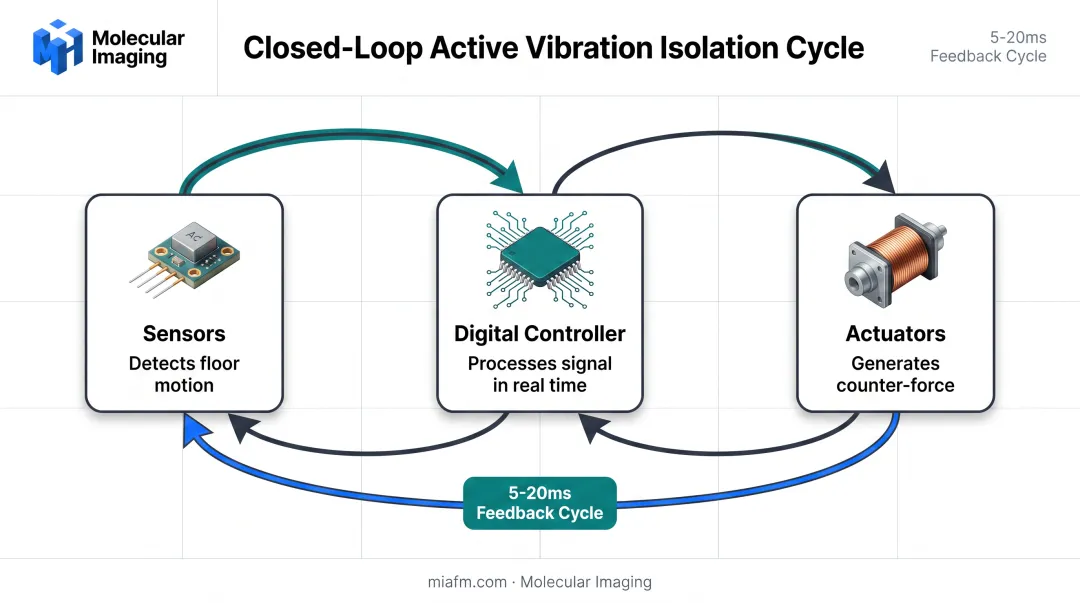

Active systems typically include three parts working in a closed loop:
- Sensors — accelerometers or piezo sensors that detect motion, often eight or more units oriented to cover all directions
- A digital controller — processes sensor data and calculates the correction signal
- Actuators — electromagnetic or piezoelectric elements that generate an equal, out-of-phase counter-force
According to Herzan, this sense-and-cancel loop typically completes within 5-20 milliseconds in their systems, fast enough to neutralize vibration before it reaches the payload (Herzan).
Six Degrees of Freedom
Real-world vibration isn't a single clean wave. It's a mix of motion along three translational axes (X, Y, Z) plus three rotational ones (roll, pitch, yaw). Active platforms commonly manage anywhere from three to all six of these degrees of freedom, depending on system sophistication.
Contrast this with passive systems, which rely purely on a mass-spring-damper design: no sensing, no correction, just mechanical decoupling. That difference is what tells you when passive isolation is enough—and when only active control will hold the floor still.
Typical use cases include:
- Research labs running AFM/STM
- Semiconductor fabs
- TEM/SEM suites
- Nanoscale tools sensitive to sub-10 Hz floor motion

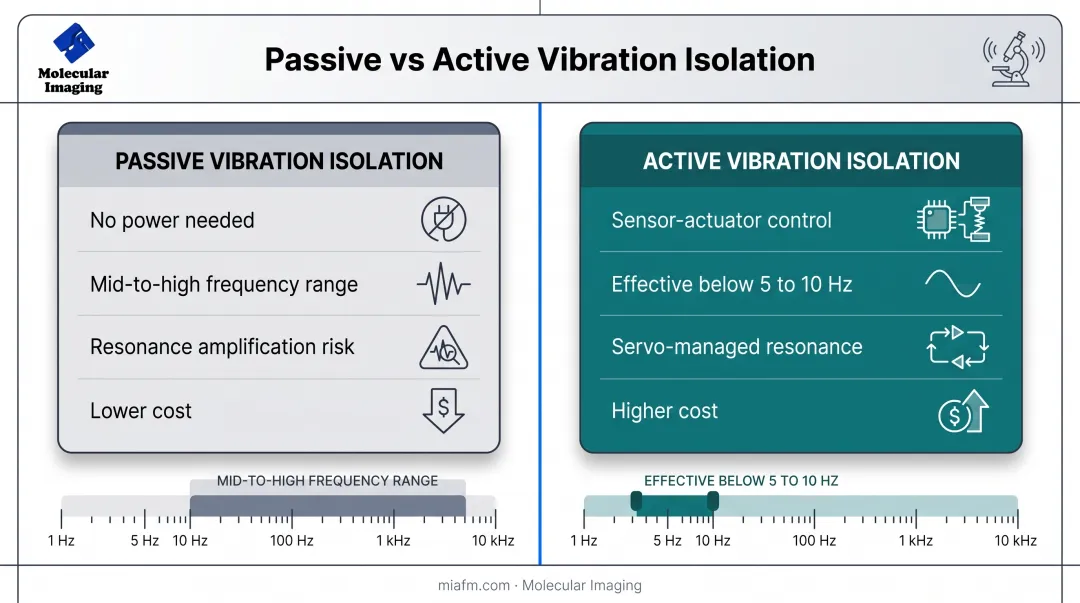

Active vs. Passive Vibration Isolation: Key Differences
Passive isolators (springs, rubber mounts, pneumatic legs) work well against mid-to-high frequency vibration. They're also considerably cheaper and require no electricity. The problem shows up at low frequencies.
Every passive isolator has a natural resonant frequency. Below that frequency, it doesn't isolate; it can actually amplify vibration, according to Bilz's technical glossary. Most passive systems bottom out somewhere between 1-2 Hz on the high-performance end (negative-stiffness designs can reach below 0.5 Hz), but ordinary building vibration often lives in that exact 5-10 Hz danger zone.
Active systems are built to attack precisely that range:
| Factor | Passive Systems | Active Systems |
|---|---|---|
| Power/control | No electricity, no sensing | Requires sensors, controller, actuators |
| Best frequency range | Mid-to-high frequency | Low frequency, often below 5-10 Hz |
| Resonance behavior | Can amplify vibration near natural frequency | Servo control actively manages resonance |
| Complexity/cost | Lower cost, simpler | More complex, higher cost |
| Bandwidth (typical) | Fixed by mechanical design | Herzan cites active isolation starting near 0.5 Hz; TMC cites practical servo bandwidth around 10-40 Hz |
TMC is careful to note active systems aren't a universal fix: structural resonances in the payload itself still limit how much bandwidth you can practically control. For AFM, STM, and other high-resolution instruments, that low-frequency gap is often where floor vibration, foot traffic, and HVAC show up as image noise or tip instability.
Vibration Absorbers vs. Dampers vs. Isolators
When you move from comparing architectures to reading quotes, three terms get used interchangeably in vendor literature, but they mean different things:
- Isolator — decouples the payload from the vibration source entirely
- Damper — dissipates energy from oscillation, converting it to heat
- Absorber — adds a secondary tuned mass to counteract specific frequencies
Bilz's glossary notes that "vibration damper" is often used loosely as a synonym for isolator, which muddies specification sheets. A vendor advertising "damping" is not necessarily offering isolation, so read the mechanism, not just the label, when you compare lab instrumentation quotes.
Why AFM, STM & Nanoscale Research Demand Active Isolation
Atomic force microscopy and scanning tunneling microscopy operate at sub-angstrom to nanometer precision. At that scale, vibration that would be completely invisible to almost any other instrument becomes the dominant source of image noise.
Where the vibration comes from:
- Building sway and structural resonance (often 10-25 Hz)
- HVAC and air-handling equipment (commonly 14, 29, and 42 Hz)
- Foot traffic and nearby mechanical equipment
- Construction or heavy vehicle traffic outside the building
A 2024 study comparing isolation methods for AFM height measurements found that switching off a pneumatic isolation table increased the average height measurement standard deviation from 28.70 pm to 88.32 pm, a 3.1-fold degradation in precision (AIP Conference Proceedings, 2024).
NIST's work on scanning tunneling microscopes found that upgrading a passive Mallock suspension to a six-degree-of-freedom active system produced 3-15 dB of additional attenuation within the active control band. That gain directly improved STM probe stability (NIST).

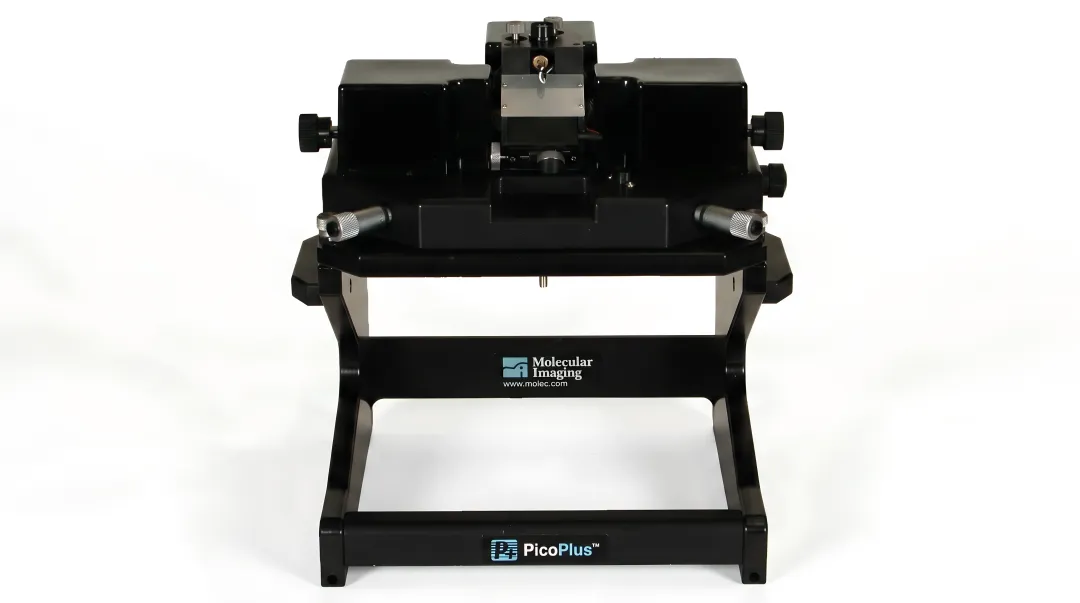

At Molecular Imaging, we build our AFM and STM platforms, including the 5500 PicoPlus, 5420 PicoAFM, and 4500 PicoSTM, around a rigid, low-noise mechanical loop designed to minimize susceptibility to ambient interference. Our modular environmental isolation chambers, available for the 5500, 5100, and 5420 series, add humidity, temperature, and gas-control stability that complements a properly specified active isolation platform underneath your bench.
Getting the environmental controls right on the instrument doesn't replace good site-level vibration isolation. The two work together.
University surface-science labs, materials science R&D groups, and shared instrumentation cores frequently pair active isolation platforms with their AFM/STM tools for this reason. These instruments are a significant capital investment, and unresolved vibration erodes their imaging potential for years.
Common Methods for Vibration Isolation & Control
Isolation methods fall into a handful of categories, each suited to different frequency ranges and budgets:
- Elastomeric/rubber mounts: simple, low-cost, good for higher-frequency noise
- Pneumatic isolators: air-spring platforms with strong mid-frequency attenuation
- Spring/negative-stiffness isolators: mechanical designs reaching very low natural frequencies without electronics
- Active electronic systems: sensor/actuator loops targeting the stubborn low-frequency range
A typical isolation table works by decoupling a rigid platform from the floor using one of the above methods, so incoming floor energy is dissipated or canceled before it reaches the mounted instrument.

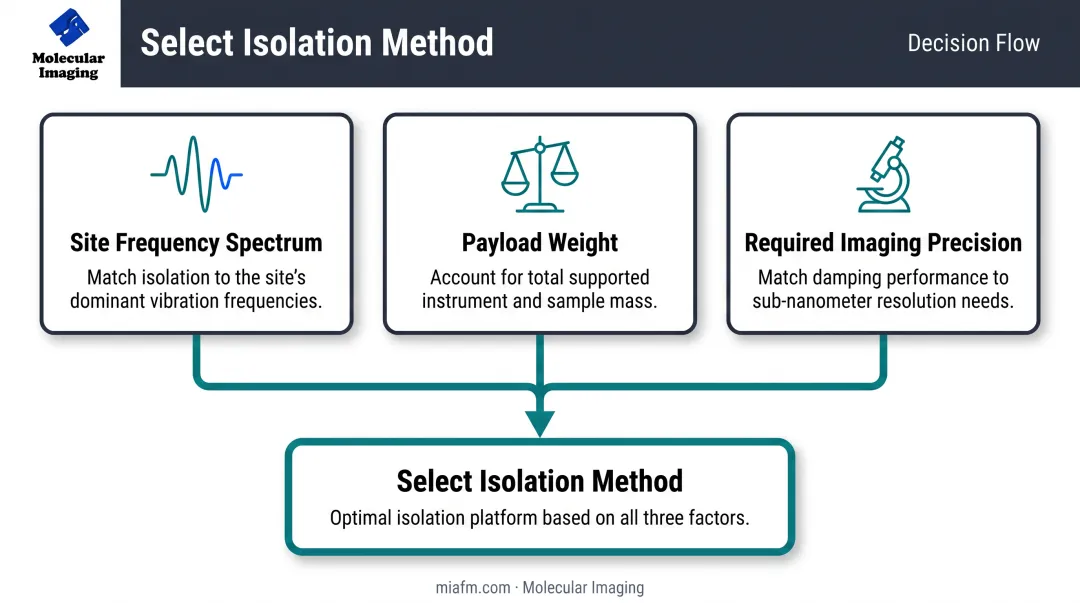

Passive options handle much of the spectrum well. When site noise and imaging precision push below what rubber, air, or springs can reject, active systems fill the gap. Method choice depends on:
- Frequency spectrum at your specific site
- Payload weight of the instrument and table
- Precision your imaging application demands
Choosing the Right Active Vibration Isolation System for Your Lab
Start with a site vibration survey: record the floor vibration spectrum where the instrument will sit. That data shows whether you face an 8 Hz building sway problem or a 40 Hz HVAC problem, and it changes which system makes sense.
Key selection factors:
- Payload capacity: instrument plus isolation platform weight
- Frequency range of concern: taken from your survey data
- Floor type: slab-on-grade ground floors usually carry less low-frequency motion than upper floors
- Instrument sensitivity: sub-angstrom AFM work needs tighter isolation than routine tapping-mode imaging
Placement matters too. Avoid the center of upper floors (the "trampoline effect") and stay clear of mechanical rooms when you can.
Once you have numbers, talk with the isolation vendor or a vibration engineering specialist. They can match a system's transfer function to your site data instead of a generic spec sheet.
If you are configuring a new AFM/STM installation, Molecular Imaging can help align environmental control (isolation chambers, temperature-controlled stages, and instrument setup) with the active isolation platform your site needs. Call 1-888-644-0389 for installation planning support.
Frequently Asked Questions
What are common methods for vibration isolation and control in mechanical systems?
Passive methods include rubber mounts, spring isolators, and pneumatic platforms, which handle mid-to-high frequency vibration well. Active systems use sensors, controllers, and actuators to cancel low-frequency vibration that passive methods can't fully suppress.
How do vibration isolation tables and pads work?
They use a mass-spring-damper principle: a rigid platform sits on isolators that decouple it from floor motion. Incoming vibrational energy is absorbed or dissipated before it reaches the instrument mounted on top.
What is the difference between a vibration absorber, a vibration damper, and a vibration isolator?
An isolator decouples the payload from the vibration source entirely. A damper dissipates oscillation energy as heat. An absorber adds a secondary tuned mass to cancel out specific frequencies.
What is a vibration isolation system?
A vibration isolation system is any mechanism, passive or active, designed to reduce the transmission of vibration between a source (like a building floor) and sensitive equipment sitting on top of it.
Why do AFM and STM systems need active vibration isolation?
These instruments operate at sub-angstrom to nanometer precision, making them highly susceptible to low-frequency building vibration. Passive isolation alone often can't suppress motion below 10 Hz enough to protect image resolution.
How much does an active vibration isolation system typically cost compared to passive isolation?
Active systems generally cost more than passive mounts or tables because of the added sensors, controllers, and actuators. Labs usually accept that premium when they need stable isolation below about 10 Hz—performance passive methods alone rarely deliver.
