Introduction
A conventional atomic force microscope needs anywhere from several seconds to about a minute to capture a single image. Meanwhile, a motor protein takes a molecular "step" in milliseconds, and an enzyme completes a catalytic cycle even faster.
That mismatch created a real problem: researchers could resolve molecular structures in high detail, but they couldn't watch them work.
High-speed atomic force microscopy (HS-AFM) closed that gap. By re-engineering the cantilever, scanner, and feedback loop as a single fast system, HS-AFM lets scientists record biomolecules "in action" at near-video rate, frame by frame, in liquid environments that mimic real biological conditions.
This article covers what HS-AFM is, the engineering that makes it fast, how it relates to standard AFM, where labs apply it today, and how to read the data without getting fooled by artifacts.
Key Takeaways
- Captures dynamic nanoscale events at up to roughly 20 frames per second, versus about a minute per frame for conventional AFM
- Speed comes from three coordinated upgrades: smaller cantilevers, faster piezo scanners, and dynamic feedback control
- Functions as a purpose-built, faster variant of standard AFM/SFM, not a separate technique
- Applications now span protein dynamics, polymer science, battery electrodes, and corrosion research
What Is High-Speed Atomic Force Microscopy?
HS-AFM is atomic force microscopy engineered specifically to increase imaging speed without sacrificing nanometer-scale resolution. Instead of one static topography snapshot, it produces a sequence of frames: a movie of a surface changing over time.
That distinction matters because standard AFM is simply too slow for many biological questions. Enzyme catalysis, membrane protein conformational shifts, and protein-protein binding events often happen in milliseconds. A technique that needs a full minute to scan one frame misses the action entirely.
A brief history: Toshio Ando's group published the first working HS-AFM instrument in 2001, imaging biological macromolecules in aqueous solution. Speed-improvement work had started earlier, around 1993.
By the late 2000s, HS-AFM had matured into a reliable, sub-100-millisecond tool. It is now mainstream, with hundreds of published biological studies built on the technique.
HS-AFM Speed Benchmarks
A widely cited 2014 Chemical Reviews analysis of biomolecular HS-AFM reports conventional AFM at roughly one minute per image. Experimental HS-AFM setups in that review reached 1 to 12.5 frames per second, with a calculated maximum near 14.8 fps for a 100-line, 150-nanometer-wide scan.
More recent instrumentation work puts practical biomolecular imaging closer to 10 fps. At that rate, researchers watch molecular events unfold instead of reconstructing them from still frames.

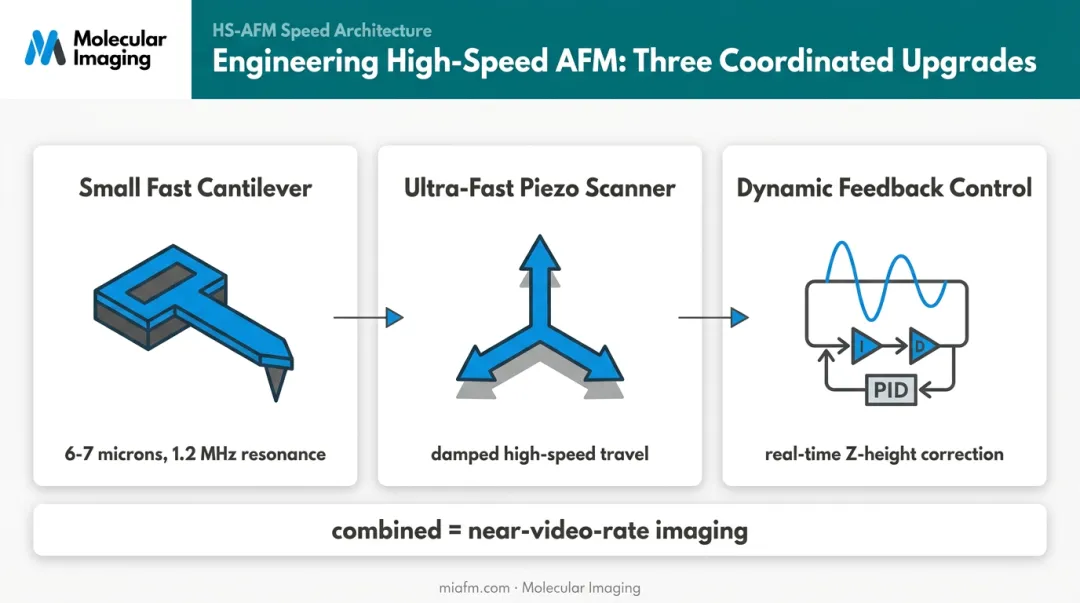

How HS-AFM Works: The Engineering Behind the Speed
Every component in an AFM's feedback loop (cantilever, piezo scanner, optical detector, controller) adds a small time delay. In standard AFM, those delays don't matter much. In HS-AFM, they compound into the difference between capturing real dynamics and missing them entirely. Engineers had to shrink every delay simultaneously.
Small, Fast Cantilevers
Cantilevers used in HS-AFM are dramatically smaller than conventional probes. A representative research cantilever measures roughly 6-7 microns long, 2 microns wide, and 90 nanometers thick, with a resonance frequency near 1.2 MHz in water and a spring constant around 0.2 N/m.
The small mass raises resonance frequency so the tip can track a moving sample surface. The low spring constant keeps tapping forces gentle enough not to damage fragile proteins.
The trade-off: cantilevers this small are hard to align with standard optical lever detection systems, so HS-AFM instruments often require specialized, more compact detection optics.
Standard tapping-mode research still benefits from elevated resonance frequencies even outside true HS-AFM territory. Molecular Imaging's NCH-30-10 High Frequency Tapping Cantilever, for example, is built for rapid surface scanning and dynamic imaging. It is a useful bridge for labs pushing standard tapping mode toward faster acquisition before investing in a dedicated HS-AFM cantilever.
Ultra-Fast Piezo Scanners
The scanner moves the sample or tip through X, Y, and Z at high speed while damping unwanted vibrations. Active damping (sometimes called Q-control) and inverse compensation techniques counteract the scanner's own mechanical ringing, which would otherwise blur fast frames.
Recent research has pushed scanner design further. A 2021 flexure-based scanner design published in Scientific Reports achieved over 40 microns of x-y travel and recorded images up to 16 megapixels, including a 35 x 35 micron collagen scan at 8.8 nanometers per pixel.
Full-range, high-pixel-density scans ran around 0.5 fps. Shrinking the field to under 1 square micron pushed frame rates up to 10 fps. Scan area, resolution, and speed stay locked in a three-way trade-off:
- Larger scan area slows frame rate at a given pixel density
- Higher resolution (more pixels) costs speed or field of view
- Faster frames require a smaller field, coarser pixels, or both
Dynamic Feedback Control
The feedback controller keeps constant force between tip and sample by adjusting Z-height in real time. At high scan speeds, a steep downhill feature can outrun the controller's response. The tip briefly loses contact, a phenomenon researchers call parachuting. It shows up as horizontal scarring in the image and falsely elevated topography.
Dynamic PID gain scheduling addresses this by adding corrective gain whenever the oscillation amplitude exceeds the setpoint, restoring tip-sample contact faster without cranking up force on the sample. Some newer methods compare forward and reverse scan passes to detect and correct parachuting artifacts after the fact.
HS-AFM vs. AFM vs. SFM: Clearing Up the Terminology
This trips up a lot of new researchers, so let's settle it directly: Scanning Force Microscopy (SFM) and Atomic Force Microscopy (AFM) are the same technique. SFM emphasizes the force-sensing mechanism in its name; AFM simply became the more widely adopted industry term over time. If you see "SFM" in an older paper, mentally substitute "AFM" and you'll lose nothing.
HS-AFM is not a third, separate category. It's AFM/SFM with every component of the imaging loop re-engineered purely for speed:
| Consideration | Standard AFM/SFM | HS-AFM |
|---|---|---|
| Typical frame time | Seconds to ~1 minute | ~50 ms–1 s |
| Best suited for | Static topography, mechanical property mapping | Observing change over time |
| Cantilever type | Standard-size probes | Miniaturized, high-resonance probes |
| Common use case | Surface roughness, film thickness, hardness testing | Protein dynamics, reaction monitoring |
The practical decision is simple:
- "What does this surface look like?" — Standard AFM gives better precision and easier setup.
- "What happens over the next few seconds?" — You need HS-AFM's speed.
Applications: Where HS-AFM Is Making an Impact

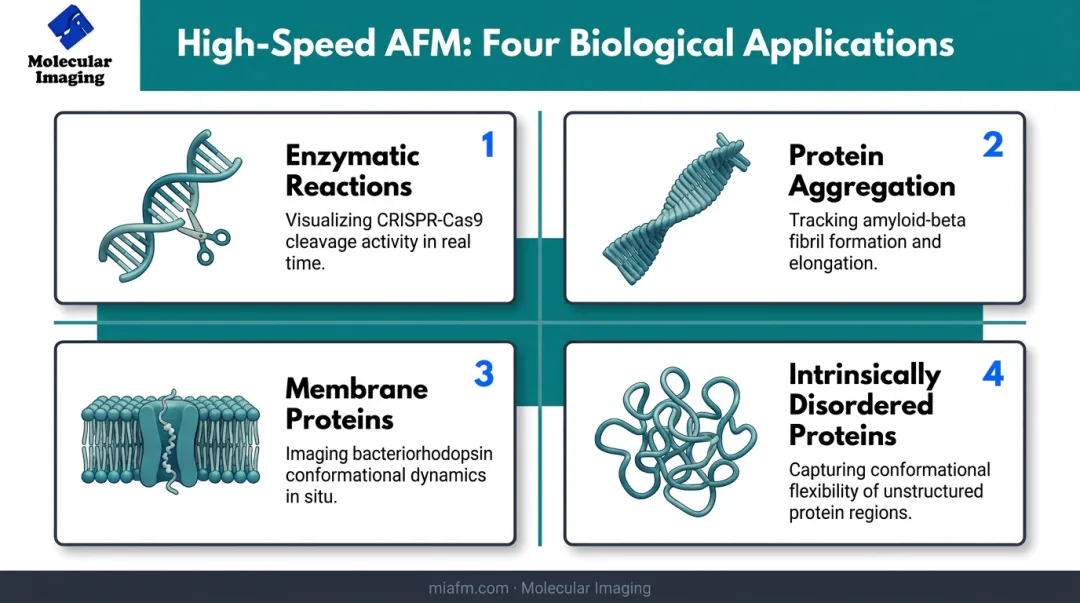

Biological and Life Science Applications
HS-AFM's landmark result came in 2010, when Kodera and colleagues filmed myosin V walking along an actin filament. The footage showed the hand-over-hand stepping motion and lever-arm swing that biochemists had debated for years.
Fluorescence and optical trap methods had hinted at the mechanism; HS-AFM showed it happening. Since then, the technique has spread across several life-science problems:
- Enzymatic reactions — CRISPR-Cas9 complex assembly, target search, and DNA cleavage captured in real time
- Protein aggregation — Amyloid-beta fibril elongation, growth pauses, and structural switching linked to neurodegenerative disease
- Membrane proteins — Bacteriorhodopsin monomers forming transient contacts tied to cooperative photocycle kinetics
- Intrinsically disordered proteins — Folded vs. disordered regions distinguished on PQBP-1 and Atg13 in aqueous buffer
For labs doing this work, gentle sample handling matters as much as speed. Molecular Imaging's 5500 ILM PicoPlus BioAFM uses MAC Mode (magnetically driven oscillation) to cut lateral forces on soft biological samples in liquid, which helps when fast scanning meets fragile proteins.
Materials Science and Industrial Applications
HS-AFM's reach extends well past biology. Materials researchers use it to watch processes that were previously invisible in real time:
- Polymer dynamics — Real-time crystallization tracking in polyethylene oxide
- Surfactant self-assembly — Micelle transformations on mica, with salt concentration altering structure and formation time
- Battery electrodes — EC-HS-AFM monitoring of solid-electrolyte interface formation and over-discharge surface changes
- Corrosion — Metastable pitting and grain-boundary dissolution on stainless steel, including short-crack initiation in saline solution
Labs running these experiments often need integrated electrochemistry setups. Molecular Imaging's in-situ electrochemistry tools support real-time monitoring of corrosion, deposition, and battery interface reactions, including lithium battery SEI imaging with potentiostat integration in an oxygen-free glove box.
Related methods notes on electrocatalytic reduction and STM tip preparation are available on the electrochemistry application page.
Beyond single-process movies, wide-area high-resolution scanning is opening another path. Megapixel-class scanners can capture crystal growth or heterogeneous cell surfaces in one acquisition instead of stitching dozens of smaller scans.
Interpreting HS-AFM Data and Selecting the Right System
How to Interpret HS-AFM Results
An HS-AFM dataset is a sequence of topographic height maps, typically color- or brightness-coded by Z-height. Real dynamics should track consistently frame to frame. A feature that flickers, jumps erratically, or appears only once is more likely an artifact than genuine molecular behavior.
Watch for these common issues before drawing conclusions:
- Tip convolution: Probe geometry broadens fine features, so lateral measurements run somewhat larger than true size
- Parachuting: Feedback lag on steep downhill slopes creates falsely high topography and horizontal scarring
- Thermal drift: Sample tilt and instrument drift build up over long runs and need preprocessing correction
- Trace/retrace mismatch: Forward and reverse passes can disagree, especially when the tip disturbs fragile samples
Cross-check anything surprising against a complementary method, or against a simulated AFM image from molecular dynamics data. Evaluate frame rate, pixel resolution, and scan area together: gaining on one almost always costs you another.
Choosing the Right HS-AFM System for Your Lab
Those same trade-offs should drive instrument choice. Before you compare systems, pin down four requirements:
- Required frame rate: Fast enzyme kinetics need higher fps than slower structural transitions
- Sample environment: Liquid imaging for biology versus air or vacuum for many materials applications
- Scan range: Small, high-detail fields versus wider survey areas
- Primary use case: Biological dynamics versus materials or electrochemical characterization

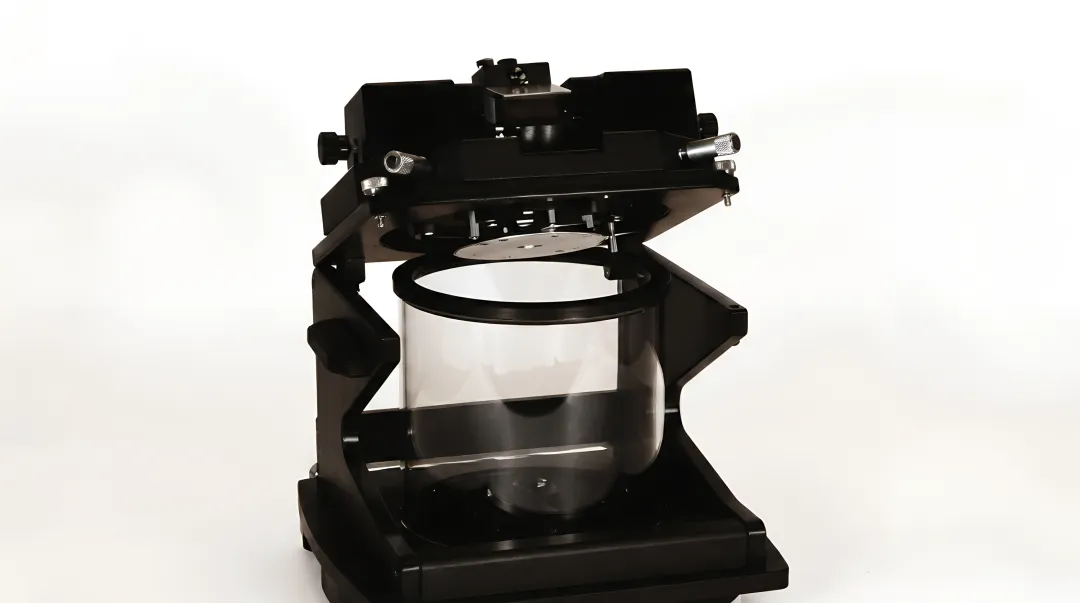

Many labs can meet those needs without replacing an entire platform. Molecular Imaging's modular AFM/STM systems let you match scanners, environmental accessories, and imaging modes to the research question instead of a fixed instrument category. Temperature-controlled stages from -30°C to 250°C and environmental isolation chambers cover phase-transition studies, battery work, and reactive gas experiments on one configurable setup.
If you already run legacy Agilent or Keysight AFM-STM systems, a full swap is often unnecessary. Molecular Imaging's ZoomAFM service handles repair, calibration, and technical support for those installed platforms so you can extend working life instead of buying new.
Frequently Asked Questions
What is high-speed atomic force microscopy?
HS-AFM is a form of atomic force microscopy designed to capture nanoscale dynamic processes at near-video-rate speeds. It retains the molecular-scale resolution of standard AFM while adding the speed needed to film biomolecules and materials as they change.
What is the difference between SFM and AFM microscopy?
There isn't a technical difference. SFM and AFM describe the same underlying technique. AFM simply became the more widely used term over time, while SFM emphasizes the force-sensing mechanism in its name.
How do I interpret AFM results?
Read height maps as Z-height data, checking that features track consistently between frames. Watch for tip convolution, feedback lag, and drift artifacts. Resolution, speed, and scan area always trade off against each other.
What frame rates can HS-AFM achieve?
Published benchmarks range from roughly 1 to 12.5 fps for typical biomolecular imaging, with some setups reaching around 14-20 fps under specific scan conditions. Actual rates depend heavily on scan area and how fragile the sample is.
Can HS-AFM be used on materials other than proteins?
Yes. Beyond biomolecules, HS-AFM has been applied to polymer crystallization, surfactant self-assembly, battery electrode surfaces, and corrosion processes at solid-liquid interfaces.
Do I need a specialized cantilever for HS-AFM?
Generally, yes. True HS-AFM relies on small, high-resonance-frequency cantilevers, often just a few microns long, unlike standard probes used in conventional AFM.
