Atomic Force Microscopy (AFM) sidesteps both problems. It doesn't use light or electrons at all—it feels the surface with a physical probe, working in air or liquid, on live or fixed samples.
This article covers how AFM works, what resolution it actually delivers on bacteria like E. coli, where researchers are using it, how to prepare bacterial samples correctly, and what to look for in a bio-AFM system.
Key Takeaways
- AFM resolves bacterial surface features at 1-5 nm lateral resolution, far below what optical microscopy can see
- Live bacteria can be imaged in liquid, preserving near-native shape and behavior
- The same AFM scan can measure cell stiffness and adhesion forces, not just topography
- Sample immobilization method directly determines whether your images reflect biology or artifacts
What Is Atomic Force Microscopy and Why Use It on Bacteria
What Is Atomic Force Microscopy and Why Use It on Bacteria?

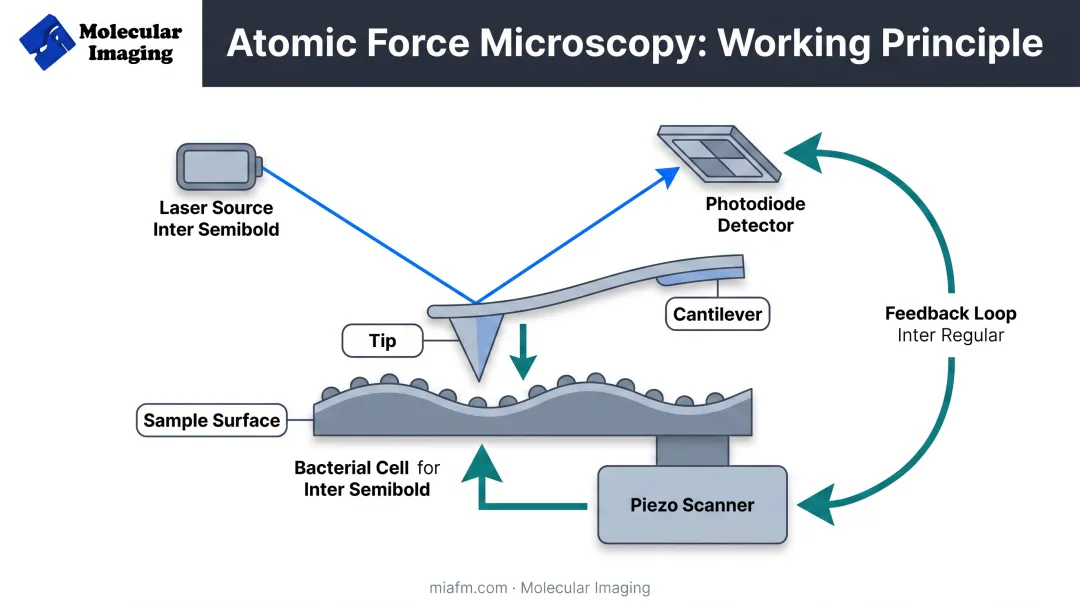

AFM works through mechanical contact, not light or electrons. A cantilever with a nanometer-sharp tip scans across the sample surface. A laser reflects off the cantilever onto a photodiode, tracking tiny deflections as the tip rises and falls over surface features (Dzedzickis et al., 2023). The feedback signal builds a 3D topographic map, point by point.
Gerd Binnig, Calvin Quate, and Christoph Gerber invented AFM in 1986, publishing the original technique in Physical Review Letters (Binnig, Quate & Gerber, 1986). Its ability to resolve nanometer-scale surface features without killing the cell is why it became a standard tool in bacteriology.
Why AFM Beats the Alternatives for Live Bacteria
- Optical microscopy: diffraction-limited to roughly 250 nm, too coarse for pili, membrane pores, or fine surface texture
- SEM/TEM: requires vacuum, fixation, and often coating: kills the cell and can distort morphology
- AFM: works in air or liquid, meaning bacteria stay hydrated and alive during imaging
High-speed AFM variants push this further. They capture dynamic processes, such as antimicrobial peptides tearing into a bacterial membrane, in real time, image by image, rather than a single frozen snapshot.
At What Magnification Can Bacteria Like E. coli Be Seen Under AFM
AFM doesn't have "magnification" in the traditional sense. There's no lens system enlarging an image. Instead, resolution is measured directly in nanometers.

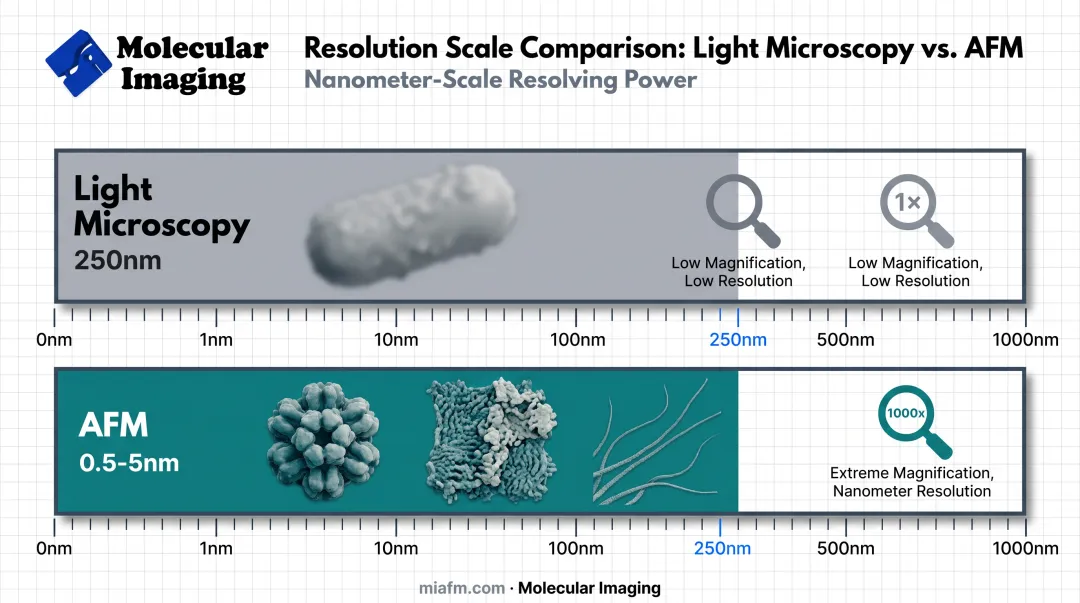

Documented resolution figures on bacterial surfaces:
- 0.5-1 nm lateral resolution on individual biological structures, including native E. coli OmpF porins (Dufrene, 2004)
- 5 nm lateral / 0.5 nm vertical resolution reported specifically on native E. coli outer membranes (Amro et al., 2000)
- Sub-nanometer vertical precision under favorable scan conditions
This level of detail reveals structures invisible under light microscopy: membrane pores, LPS patches (thousands of molecules), and pilus mechanics measured through force spectroscopy rather than static images.
What actually determines your resolution:
- Cantilever tip sharpness (a dull tip blurs fine features)
- Scan speed (faster scans trade detail for throughput)
- Air vs. liquid imaging: air is typically sharper, liquid more biologically accurate
One caveat: there's no universal guarantee of 1-5 nm resolution on every live bacterium. These are study-specific benchmarks tied to particular tips, samples, and conditions, not a blanket promise.
Key Applications of AFM in Bacterial Research
Antimicrobial Mechanisms in Real Time
High-speed AFM has captured antimicrobial peptides attacking individual E. coli cells at 13 seconds per frame. Researchers observed a variable incubation phase lasting seconds to minutes, followed by rapid membrane destruction (Fantner et al., 2010).
In related work, melittin-treated E. coli showed pore-like lesions measuring 65.7 ± 7.9 nm below the peptide's lethal concentration threshold, growing to 87.5 ± 12.9 nm above it (Meincken et al., 2005).
Mechanical Fingerprinting via Nanoindentation
AFM force spectroscopy presses on the cell and measures mechanical resistance. In one study of multidrug-resistant E. coli strains treated with ampicillin, persister cells became measurably stiffer. Surface roughness rose 16-39% and adhesion increased 70-77% compared to untreated controls (Uzoechi et al., 2020).
Adhesion and Biofilm Mapping
Single-molecule force spectroscopy quantifies how hard bacteria grip surfaces. S. epidermidis SdrG-fibrinogen bonds measure roughly 2 nN, while E. coli type-I fimbrial adhesin to mannose ranges from under 60 pN at slow loading to 180 pN under rapid loading (Beaussart et al., 2020 review).
These force maps show how bacteria colonize skin, medical devices, and each other in biofilms, and how pili and fimbriae drive that process.
Antibiotic Resistance Research
The CDC reports over 2.8 million antimicrobial-resistant infections and 35,000+ deaths annually in the US. AFM tracks morphological and mechanical shifts as bacteria develop resistance, giving researchers physical markers of how resistance appears—not only genetic ones.
Sample Preparation Techniques for Bacterial AFM Imaging

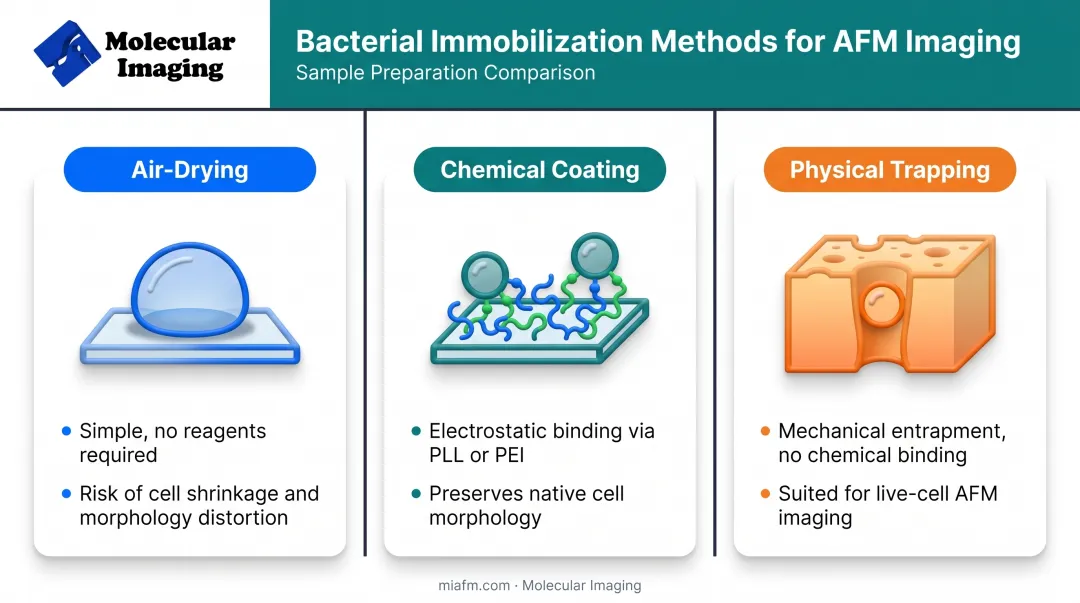

Clean bacterial AFM images start with immobilization, before the probe ever touches the sample. How you fix cells in place—air-drying, chemical coating, or physical trapping—sets resolution, viability, and whether morphology still matches the living cell.
Air Imaging: Drying Onto Surfaces
Simple and fast, but risky. Air-drying can:
- Shrink hydrated cell envelopes
- Flatten or collapse surface structures
- Distort morphology away from the living cell
Use air imaging when you need sharper resolution and can accept that tradeoff.
Liquid Imaging: Chemical Immobilization
For physiologically relevant results, researchers coat glass with:
- Poly-L-lysine (PLL) — brief exposure (~10 seconds), then thorough washing
- Polyethyleneimine (PEI) — similar short incubation; poor washing causes blebbing and cell death
One comparison study found PLL, PEI, and similar coatings produced comparable bacterial growth rates and cell sizes—provided the protocol was followed carefully (Wang et al., 2019).
Physical Trapping for Spherical Bacteria
For cocci-shaped bacteria, polycarbonate membranes with pores sized to match cell diameter (around 1.2 micrometers for S. aureus) physically wedge cells in place. This method has captured live division—a shallow midline cleft growing inward into a full septum (Touhami et al., 2004).
Choosing the Right AFM System for Bacterial and Bio-Imaging Research
Bacterial imaging demands specific hardware. You need liquid-cell compatibility, low-noise scanning, and environmental control that keeps live samples stable.
What to look for:
- Liquid cells compatible with acids, bases, and organic solvents
- A gentle imaging mode for soft biological materials in fluid
- Top and bottom optical access for correlating AFM data with light microscopy
- Temperature and humidity control for live-sample stability

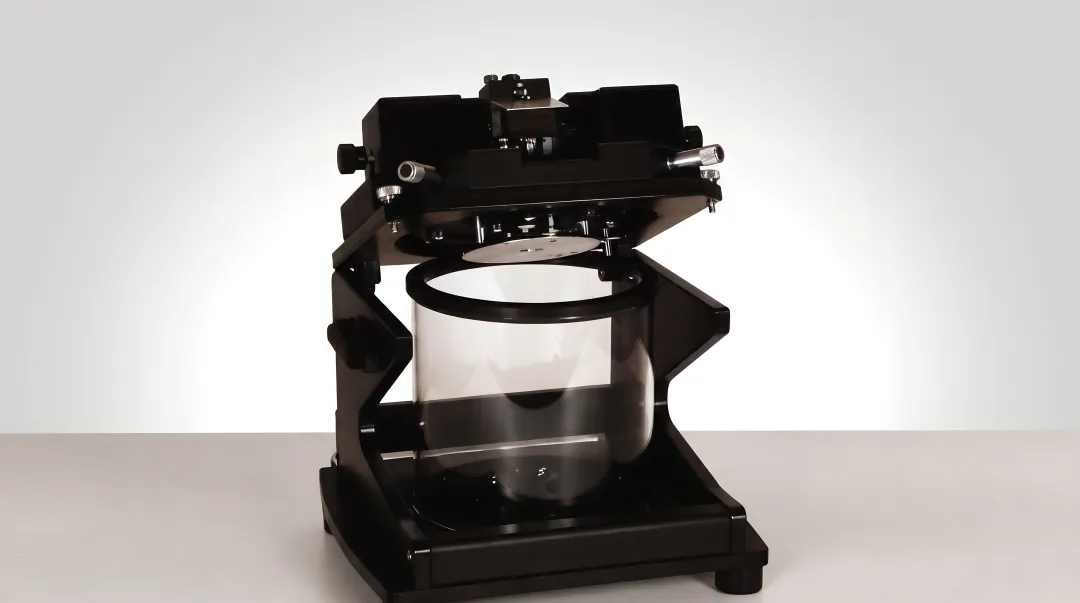

Molecular Imaging's 5500 ILM PicoPlus BioAFM addresses these requirements directly. It delivers 0.2 nm vertical resolution with scan ranges up to 90 μm × 90 μm (or 9 μm × 9 μm for atomic-resolution work). It also supports MAC Mode, a gentler scanning approach suited to soft biological samples in fluid.
For temperature-sensitive live bacterial work, Molecular Imaging also offers:
- Temperature-controlled stages spanning −30°C to 250°C
- An Environmental Isolation Chamber controlling humidity, temperature, and gas atmosphere
- Liquid tapping cantilevers (Si-L-10 and Si3N4-L-10) designed for aqueous, physiological conditions
Labs new to bacterial AFM can use Molecular Imaging's tutorial library for sessions on in-liquid imaging, contact-mode optimization, and biological sample preparation before the first scan.
Frequently Asked Questions
At what magnification can bacteria like E. coli be seen under AFM?
AFM does not use optical magnification; it reports spatial resolution in nanometers. That resolution is high enough to show sub-cellular features that light microscopy cannot resolve.
Can AFM image living bacteria?
Yes. AFM can operate fully submerged in liquid, so bacteria can be imaged alive and hydrated without fixation or staining.
How does AFM differ from SEM for bacterial imaging?
SEM requires a vacuum and typically fixation or coating, which kills the sample. AFM works in ambient air or liquid, allowing live, unmodified samples to be scanned.
What can AFM reveal about antibiotic resistance?
AFM tracks changes in cell stiffness and surface adhesion as bacteria are exposed to antibiotics. Those physical readouts show how resistant strains respond differently from susceptible ones.
Do bacteria need special preparation before AFM imaging?
Yes. Air imaging typically involves drying onto a surface, while liquid imaging uses PLL or PEI coatings, or physical trapping in porous membranes for spherical bacteria.
What resolution can AFM achieve on bacterial surfaces?
Documented studies report roughly 0.5–5 nm lateral resolution and sub-nanometer vertical resolution, enough to resolve pili, membrane pores, flagella, and fine surface texture.
