CV underpins battery research, corrosion science, electrocatalysis, biosensors, and molecular electronics. It's the diagnostic baseline researchers return to again and again, whether they're screening a new catalyst or characterizing a novel electrode coating.
This guide covers the fundamentals of CV, how to read a voltammogram, and where advanced techniques like in-situ electrochemical AFM/STM extend what CV alone can tell you.
TL;DR
- Bidirectional voltage sweeps at the working electrode produce a current–potential (I–E) plot
- Peak positions, formal potential, and peak current ratio reveal reversibility and reaction identity
- Scan rate determines whether you're probing diffusion-limited or surface-confined kinetics
- Usually the first experiment before EIS, chronoamperometry, or in-situ imaging
- Paired with AFM/STM, CV links electrochemical peaks to real-time electrode surface changes
What Is Cyclic Voltammetry?
Cyclic voltammetry (CV) is an electrochemical technique that sweeps potential linearly across a working electrode, then reverses direction, while recording the resulting current. Plotted as current versus potential, the result is a cyclic voltammogram: a curve with characteristic forward and reverse peaks.
Researchers in electrochemistry, materials science, and surface science labs use CV for:
- Redox characterization of new compounds or materials
- Mechanism studies of multi-step reactions
- Quick screening before committing to longer experiments
Related techniques built on the same core principle include linear sweep voltammetry (LSV), differential pulse voltammetry (DPV), and chronoamperometry. Each modifies the potential waveform to extract different information. We'll compare these below.
Why Cyclic Voltammetry Is Critical for Electrochemical Research
CV data connects directly to reaction kinetics, material stability, and surface behavior. Elgrishi et al. (2018) describe it as one of the most popular tools for investigating oxidation and reduction processes.
CV is valuable because it:
- Reveals redox potentials and reaction reversibility
- Identifies electrode surface area and active sites
- Screens new catalysts, battery materials, and coatings quickly
- Supports quantitative analysis of analyte concentration
- Provides a diagnostic baseline before more advanced techniques
- Correlates electrochemical behavior with surface structural changes
A 2025 battery electrode review confirms CV's role in characterizing new energy-storage materials. Corrosion work shows the same diagnostic reach: a 2012 carbon-steel study used CV to identify chloride-associated pitting.
How Cyclic Voltammetry Works — Step by Step
Understanding CV means following the sweep, the redox response, and how to read the resulting peaks. Common mistakes include:
- Skipping electrode polishing
- Choosing too narrow a potential window
- Misinterpreting asymmetric peaks as instrument error rather than chemistry

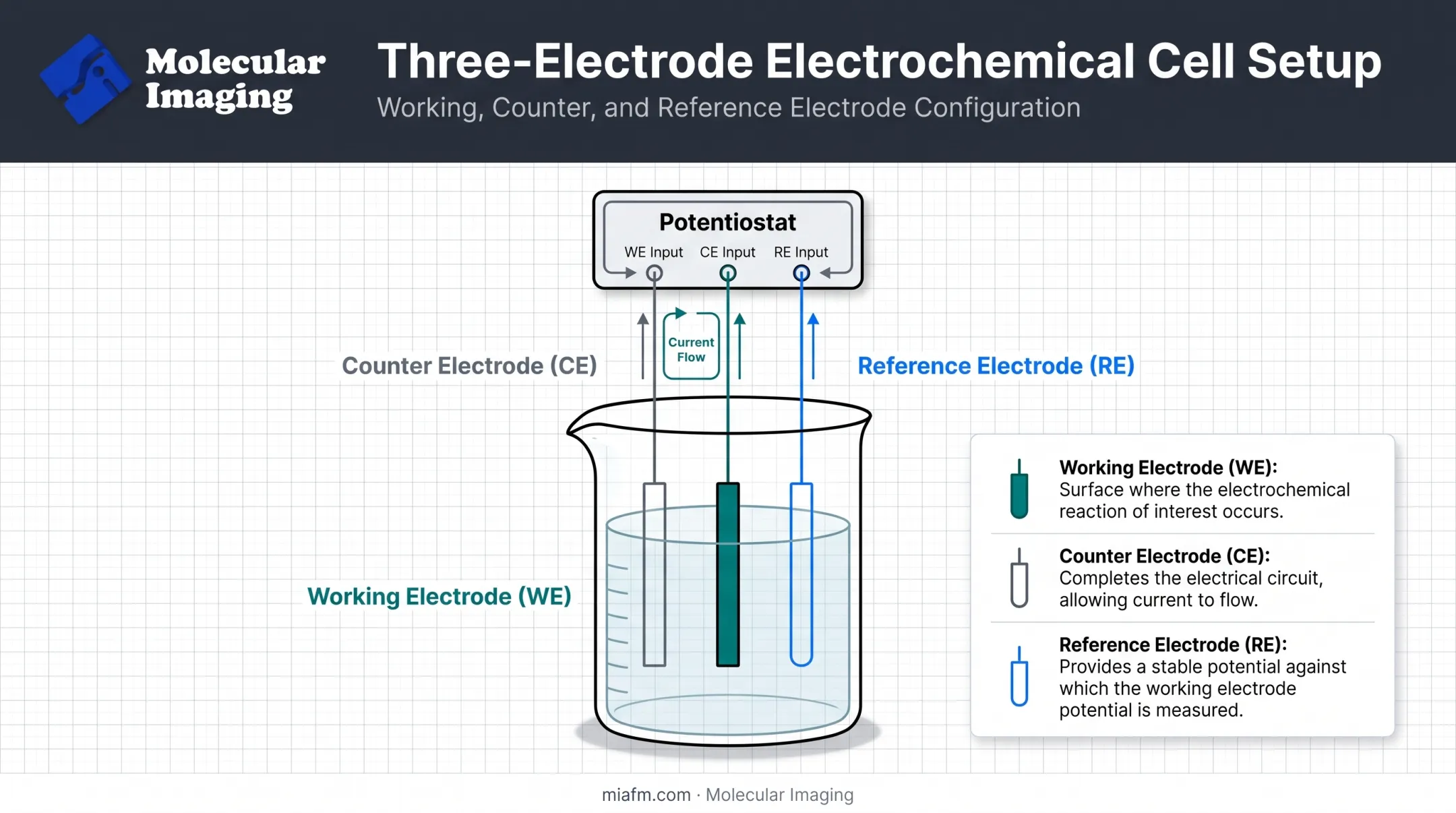

Step 1 – Set Up the Three-Electrode System
Every CV experiment uses three electrodes:
- Working electrode — where the redox reaction occurs
- Counter electrode — completes the circuit
- Reference electrode — supplies a stable, well-defined potential baseline
For aqueous systems, saturated Ag/AgCl or the saturated calomel electrode (SCE) are standard choices, offering comparable stability. For non-aqueous work, an Ag/Ag+ reference (such as Ag/AgNO₃ in acetonitrile) is more appropriate, though it requires daily calibration against a known redox couple like ferrocene.
Step 2 – Define the Potential Window and Scan Rate
The start and stop potentials set the "window" you're scanning. Go too narrow, and you'll miss redox events entirely. Scan rate (measured in mV/s) affects peak resolution. Faster scans reduce diffusion-layer thickness and generally increase current.
Step 3 – Run the Forward and Reverse Sweep
As voltage rises, oxidation occurs and a current peak forms. Reverse the sweep, and reduction produces a corresponding peak in the opposite direction. This forward-and-back motion is what separates CV from linear sweep voltammetry (LSV).
Step 4 – Record and Plot the Voltammogram
You plot current against potential, with scan-direction arrows marking forward and reverse segments. A flat curve within the solvent-stability window usually means no redox event occurred there. Oxygen contamination, though, can create misleading peaks.

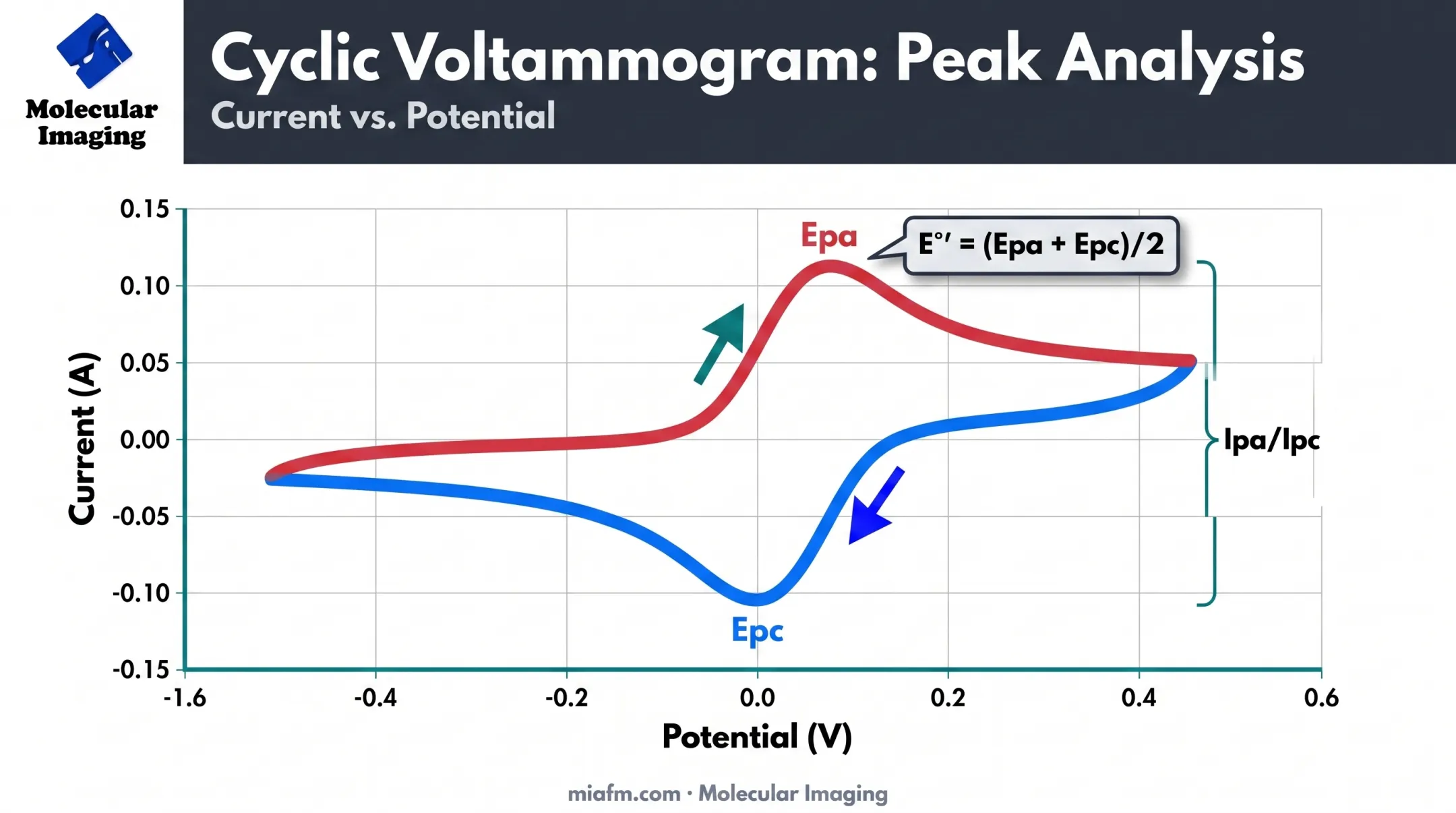

Step 5 – Interpret Peaks and Calculate Formal Potential
Once you have peaks, calculate the formal potential:
E°′ = (Epa + Epc) / 2
Also check the peak current ratio (Ipa/Ipc). A ratio near 1 suggests good reversibility; deviations point toward side reactions or slow electron transfer.
Step 6 – Vary Scan Rate to Assess Kinetics
Run CV at multiple scan rates, then plot peak current against the square root of scan rate (the Randles–Ševčík relationship). The result tells you whether the process is diffusion-controlled or surface-confined. This single check separates freely diffusing species from adsorbed or immobilized ones.

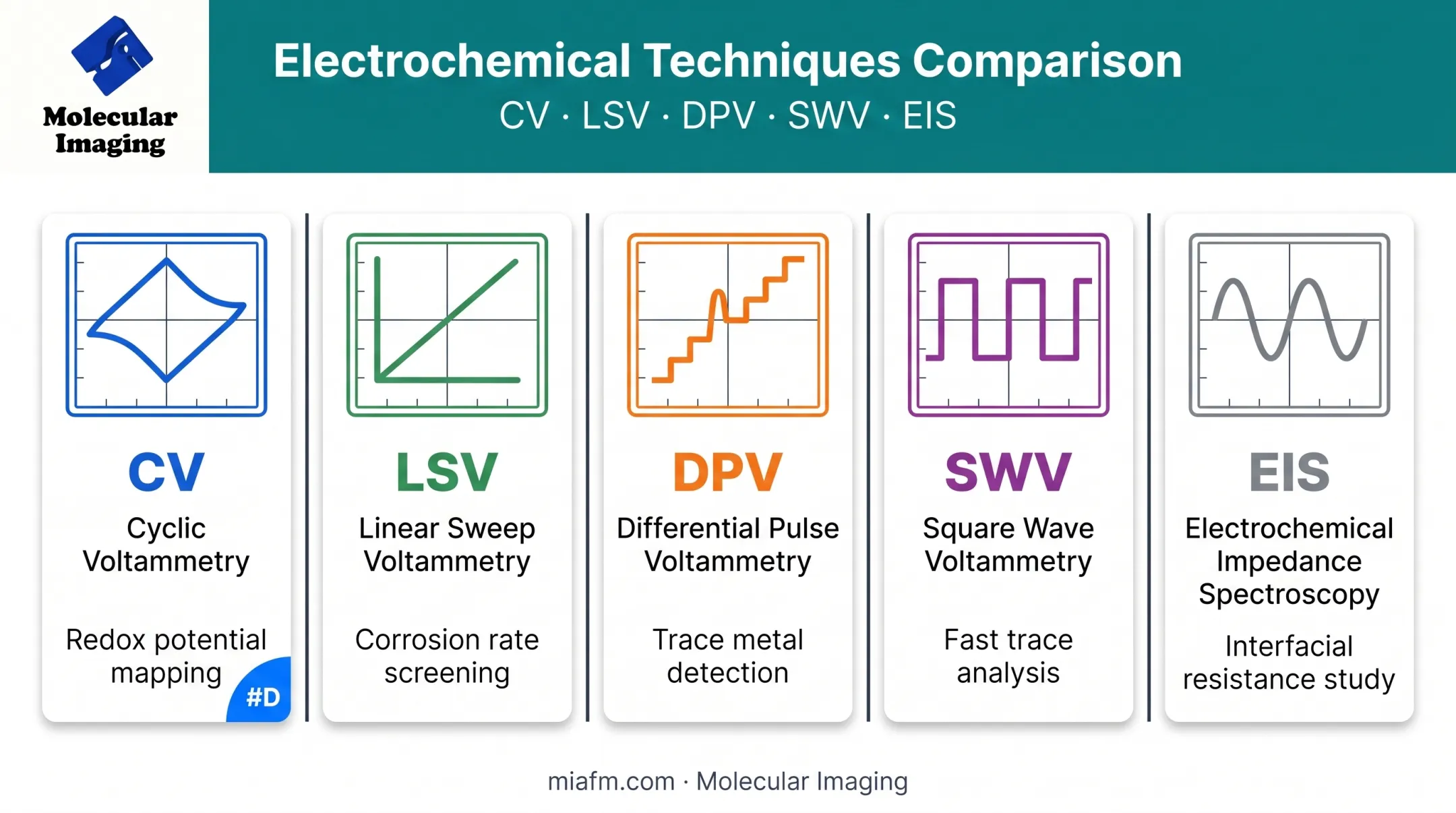

Cyclic Voltammetry vs. Related Electrochemical Techniques
CV sits next to several related methods. Which one you pick depends on whether you need mechanism insight, kinetic detail, or the lowest practical detection limit.
| Technique | What It Measures | Best Use Case |
|---|---|---|
| CV | Current vs. potential, bidirectional sweep | Redox behavior, mechanism screening |
| LSV | Current vs. potential, one-directional sweep | Electron-transfer kinetics, catalysis |
| DPV | Difference current from pulsed potential steps | Trace-level, low-detection-limit analysis |
| SWV | Difference current from square-wave pulses | Fast trace analysis, low detection limits |
| EIS | Impedance response to AC perturbation | Interfacial and charge-transfer resistance |
Labs usually choose DPV or square-wave voltammetry (SWV) over CV when detection limits matter most. Their pulse-and-subtract design suppresses background charging current. That said, detection limits are assay-specific, not universal; one 2022 biosensor study reported DPV limits as low as 0.18 nM for epinephrine detection, a result tied to that specific electrode and matrix.
When you need to understand why a material behaves a certain way, not just whether it responds, pairing CV with EIS (for interfacial resistance) or in-situ imaging (for structural change) fills in what a current-voltage curve alone can't show.
Real-World Applications and Advanced Extensions of CV
CV shows up across nearly every corner of electrochemical research:
- Battery materials — screening new electrode chemistries for stability and capacity
- Corrosion science — identifying pitting behavior and passivation
- Electrocatalysis — evaluating catalyst efficiency and selectivity
- Biosensors — establishing redox baselines before switching to more sensitive pulse techniques
Where AFM/STM Imaging Extends CV's Insights
CV tells you that something changed electrochemically. It doesn't show you what changed on the surface. That's where in-situ electrochemical AFM/STM comes in.
Published studies make the link concrete. A 2018 JACS study used in-situ EC-AFM to track a platinum electrode through 50 potential cycles in sulfuric acid, watching nanoparticles form, disappear, and reappear at specific voltage thresholds.
A 2024 EC-STM study on Au(111) tracked surface roughening across 200 cycles, linking island growth directly to cycle count.

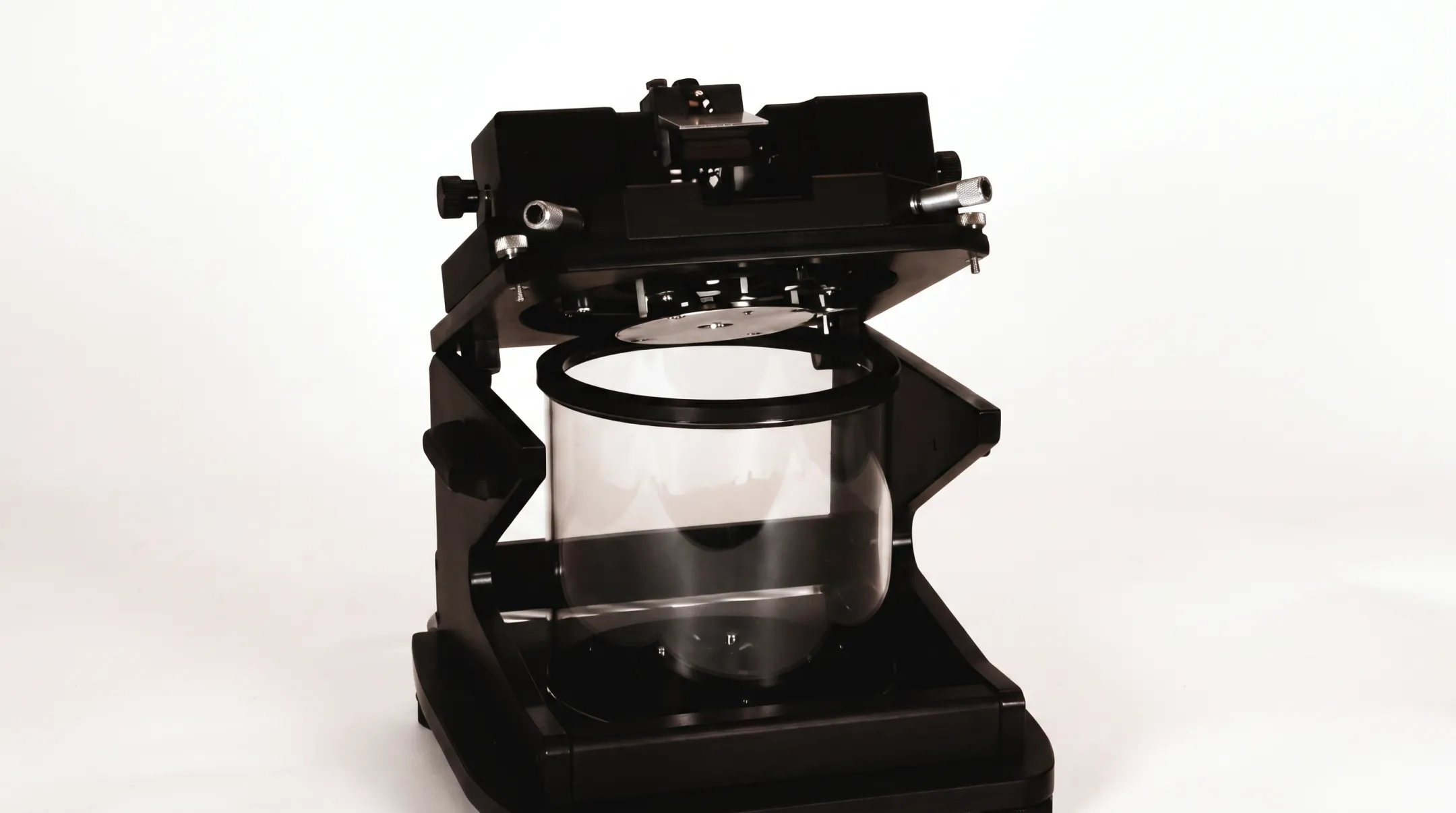

Molecular Imaging's 5500 PicoPlus AFM+STM platform supports this kind of paired experiment: in-situ electrochemical imaging alongside CV, liquid-cell configurations, and integrated potentiostat compatibility. One documented run pairs CV on Au(111) in 100 mM H₂SO₄ with 5 mM CuSO₄ at 10 mV/s, capturing deposition peaks at 0.278 V and 0.269 V versus Cu/Cu²⁺ while imaging copper crystal growth in real time.
For molecular electronics researchers, similar setups combine STM tunneling-current measurement with electrochemical gating to study redox-active molecular junctions. Published work has shown transistor-like behavior in individual molecules under potential control.
If you're studying electrode roughening, deposition, or dissolution, CV alone gives the electrical signature. Simultaneous AFM/STM imaging shows the surface morphology producing it.
Conclusion
CV remains one of the fastest, most information-rich methods for probing redox behavior. It tells you where reactions happen, how reversible they are, and roughly how fast electron transfer occurs.
But current-voltage data only tells part of the story. Pairing CV with complementary techniques (EIS for interfacial resistance, or in-situ AFM/STM for real-time surface imaging) gives you a fuller picture of what is happening at the electrode over time.
Frequently Asked Questions
What is a CV in electrochemistry?
CV, or cyclic voltammetry, is a potential-sweep technique that measures current response as voltage moves forward and then reverses. The resulting voltammogram reveals redox behavior, reversibility, and reaction kinetics.
What is the difference between CV and LSV?
LSV sweeps potential in one direction only, capturing a single oxidation or reduction event. CV reverses direction after reaching a switching potential, capturing both oxidation and reduction in one experiment.
Why is DPV better than CV?
DPV isn't universally better. It's better suited for trace-level quantitative analysis. Its pulsed waveform suppresses background charging current, often producing lower detection limits than CV for specific analytes.
What does a flat cyclic voltammogram mean?
A flat curve usually means no redox event occurred within your scanned potential window. It can also indicate low analyte concentration, a fouled electrode, or an inactive analyte.
How do I choose the right reference electrode for aqueous vs. non-aqueous CV?
For aqueous systems, use saturated Ag/AgCl or SCE, both of which offer stable, well-characterized potentials. For non-aqueous solvents, use an Ag/Ag+ reference like Ag/AgNO₃ in acetonitrile, calibrated regularly against ferrocene.
Can cyclic voltammetry be combined with surface imaging techniques?
Yes. In-situ electrochemical AFM/STM lets researchers watch surface changes (roughening, deposition, dissolution) while simultaneously recording the CV curve, linking electrical behavior directly to structural evolution.
