Researchers running potentiostat experiments know the common headaches: potential drift mid-experiment, contamination from a leaking junction, or confusion over whether a result was reported versus SHE, Ag/AgCl, SCE, or RHE. These aren't minor annoyances — they're often the real reason "the potentiostat is broken."
This guide covers reference electrode fundamentals, common types, selection and conversion, and maintenance — plus how these same principles apply to in-situ electrochemical AFM/STM (EC-AFM/EC-STM) imaging.
Key Takeaways
- A reference electrode holds a stable, known potential and doesn't participate in the reaction under study
- SHE, Ag/AgCl, SCE, Hg/HgO, and RHE each suit different pH, solvent, and temperature conditions
- Dry junctions, wrong filling solutions, and contamination cause most unreliable electrochemical data
- Always report reference type, filling solution, and temperature for reproducible results
- EC-AFM/STM setups need reference electrodes sized for small-volume liquid cells
What Is a Reference Electrode in Electrochemistry?
A reference electrode maintains a fixed, reproducible potential used as the baseline for measuring or controlling a working electrode in a three-electrode cell. IUPAC defines it as an electrode with a "virtually invariant potential" that permits observation or control of the indicator electrode's potential.
Most reference electrodes are electrodes of the second kind: a metal in equilibrium with its sparingly soluble salt, sitting in an electrolyte that shares a common ion with that salt. This equilibrium is what locks the potential in place, regardless of what's happening at the working electrode.
Basic Construction
A typical reference electrode has four parts:
- Internal metal element — usually silver or mercury
- Internal electrolyte — a fixed-concentration filling solution (like saturated KCl)
- Porous junction — a frit or capillary that lets ions pass without mixing solutions
- Contacting sample electrolyte — the external solution the junction meets in the cell
The mechanism works in stages: the metal element reaches equilibrium with its internal electrolyte, ionic contact forms through the junction, and the resulting stable potential becomes the yardstick against which the working electrode is measured.
Why SHE Isn't Used Day-to-Day
The Standard Hydrogen Electrode (SHE) is defined as the universal 0.00 V reference point : every other electrode potential is ultimately traceable to it. But SHE requires platinized platinum, hydrogen gas at 1.013 bar, and hydronium activity of exactly 1 mol/L. That gas-handling setup is impractical for routine bench work, so sealed secondary references dominate laboratory use.
Reference Electrode vs. Working Electrode

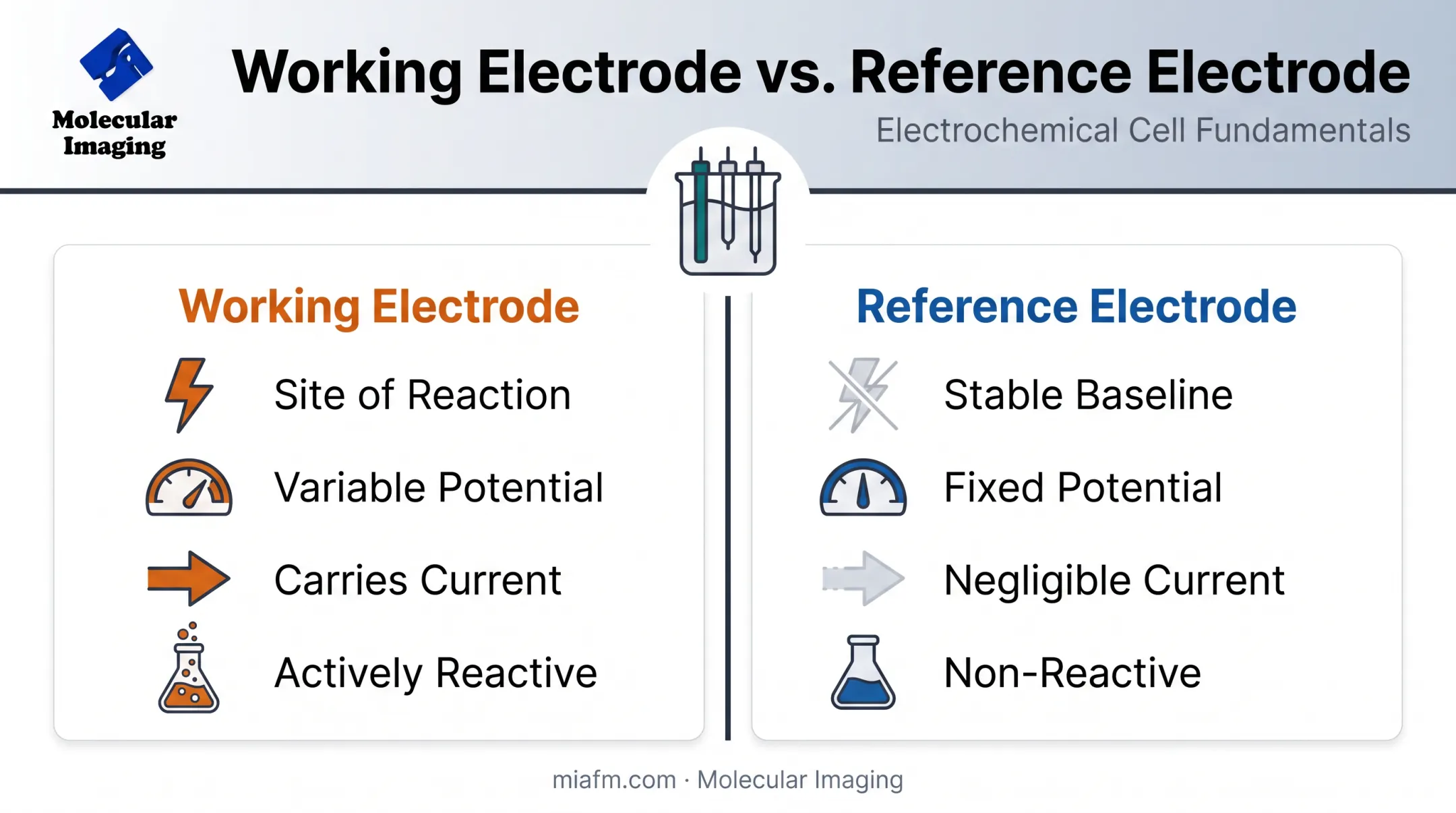

| Attribute | Working Electrode | Reference Electrode |
|---|---|---|
| Purpose | Site of the reaction being studied | Provides stable potential baseline |
| Potential | Variable, controlled by potentiostat | Fixed and reproducible |
| Current flow | Carries significant current | Draws negligible current |
| Reactivity | Actively participates in redox | Deliberately non-reactive |
Common Types of Reference Electrodes and When to Use Them
Choosing the right reference electrode comes down to matching chemistry to conditions. Here's how the major types stack up.
Ag/AgCl is the workhorse for aqueous electrochemistry. In saturated KCl, it reads around +0.197 V vs. SHE. It's mercury-free, mechanically robust, and forgiving of general lab handling: a solid default for most aqueous work.
Saturated Calomel Electrode (SCE) sits near +0.242 V vs. SHE and dominated electrochemistry for decades. Its downside: it contains mercury, and BioLogic notes that calomel electrodes shouldn't be used above 50–60°C, where drift becomes noticeable.
Mercury-based alternatives fill specific niches:
- Hg/HgO — suited to alkaline systems, roughly +0.098 V vs. SHE, though the value shifts with NaOH/KOH concentration
- Hg/Hg2SO4 — useful when chloride contamination must be avoided, since it uses sulfate-based filling solutions instead
When aqueous references hit their limits, solvent-matched and pH-normalized options take over.
Non-aqueous Ag/Ag+ addresses organic electrolytes. Aqueous references dropped into organic solvents create large, unstable liquid-junction potentials. Pine Research's non-aqueous guide reports non-aqueous junctions can drift by hundreds of millivolts, versus just a few millivolts per year in aqueous systems.
RHE takes a different path. It is pH-normalized rather than pH-invariant, shifting with the Nernstian pH term so results stay comparable across electrolytes. That is a major reason it is the default in electrocatalysis research.

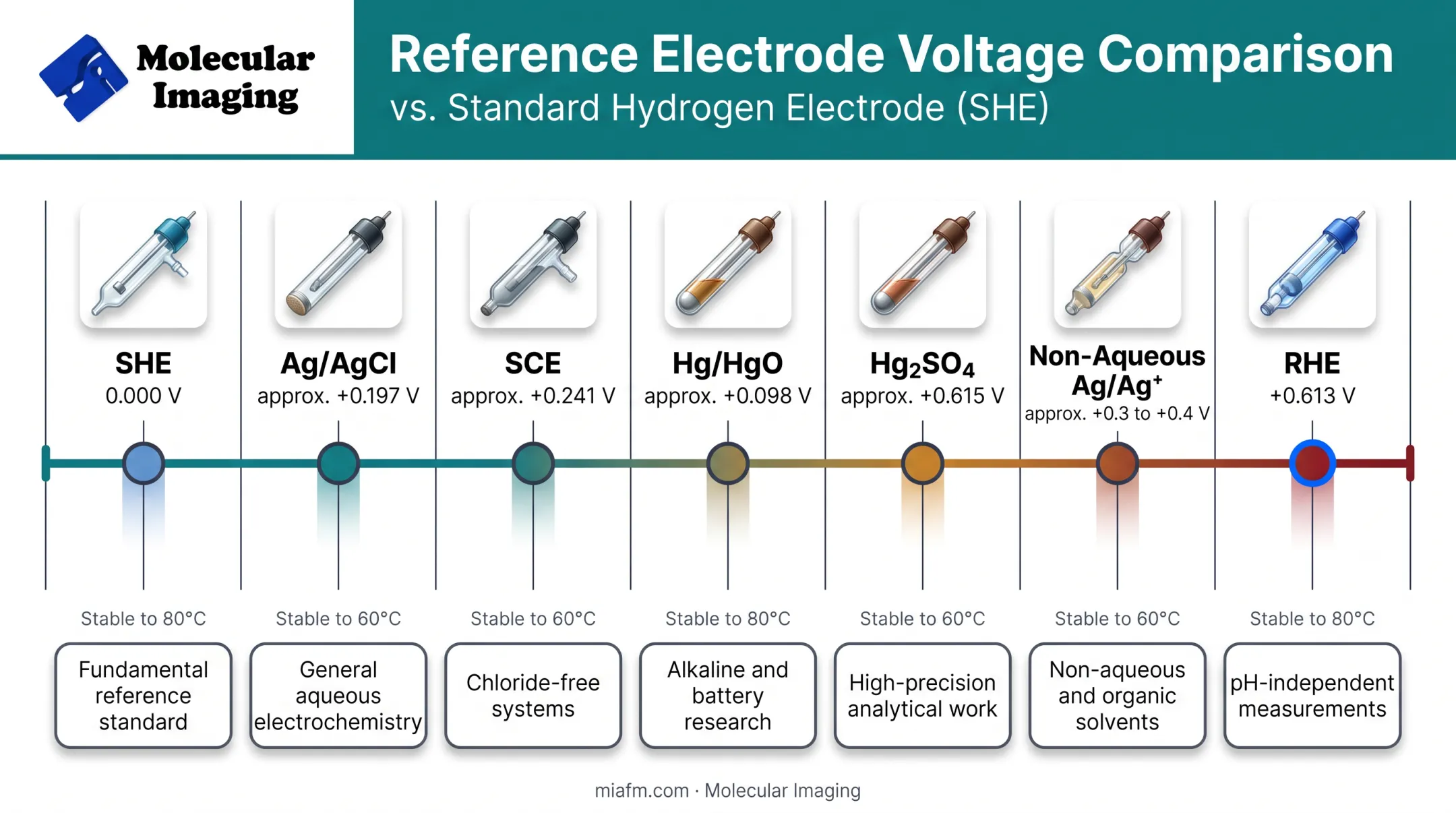

| Reference | Typical Potential vs. SHE | Best Suited For | Temperature Limit |
|---|---|---|---|
| SHE | 0.000 V | Absolute calibration standard | N/A |
| Ag/AgCl (sat. KCl) | ~+0.197 V | General aqueous work | Room to moderate |
| SCE | ~+0.242 V | Legacy aqueous methods | Below 50–60°C |
| Hg/HgO | ~+0.098–0.164 V (conc.-dependent) | Alkaline electrolytes | Moderate |
| Hg/Hg2SO4 | ~+0.613 V | Chloride-sensitive systems | Moderate |
| Non-aqueous Ag/Ag+ | Solvent-dependent | Organic electrolytes | Requires daily calibration |
| RHE | pH-dependent (0.059 V/pH) | Electrocatalysis, fuel cells | Aqueous only |
How to Select and Convert Between Reference Electrodes
Picking a reference electrode is a matter of matching it to your experimental conditions:
- Media type — aqueous vs. non-aqueous
- pH range — alkaline systems favor Hg/HgO; acidic systems tolerate Ag/AgCl
- Temperature — SCE breaks down above 50–60°C
- Contamination risk — chloride-sensitive samples need Hg/Hg₂SO₄ or a double junction
- EIS compatibility — high-impedance junctions distort impedance spectra
The Liquid Junction Problem
Every reference electrode leaks a tiny amount of its internal filling solution through the junction. In aqueous systems, this is a slow, minor process. In non-aqueous or sensitive samples, even trace chloride or mercury ions can contaminate results.
Double-junction designs solve this by adding an intermediate electrolyte chamber that isolates the reference filling solution from the test sample. Gamry notes double-junction impedance typically runs more than double that of a single junction, a tradeoff worth factoring into EIS work.
Converting Between Reference Scales

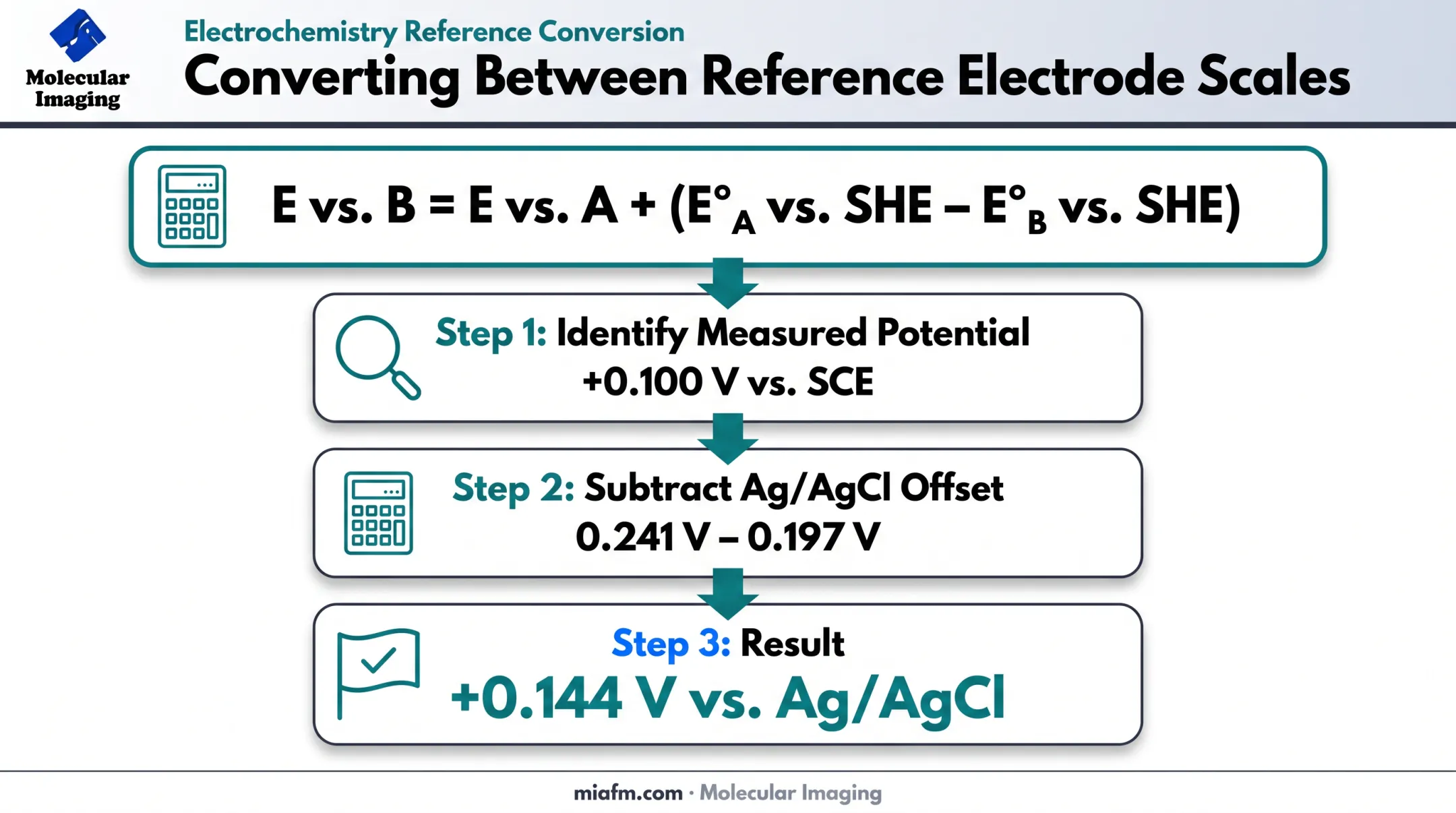

The conversion formula:
E vs. B = E vs. A + (E°A vs. SHE − E°B vs. SHE)
Worked example: A measured potential of +0.100 V vs. saturated SCE, converted to Ag/AgCl:
- SCE vs. SHE: +0.241 V
- Ag/AgCl vs. SHE: +0.197 V
- +0.100 + 0.241 − 0.197 = +0.144 V vs. Ag/AgCl
Always report the exact filling concentration and temperature alongside any converted value — a value without that context isn't reproducible.
Reference Electrodes for EC-AFM/STM Work
Selecting a reference electrode gets more constrained inside an in-situ imaging cell. Small liquid-cell volumes, tight electrode spacing, and the need to avoid interfering with cantilever or tip motion all narrow the field.
A documented electrochemical AFM example uses a Cu/Cu²⁺ reference electrode with an Au(111) working electrode in 100 mM H₂SO₄ containing 5 mM CuSO₄, scanned at 10 mV/s. The setup shows how a compact, chemistry-matched reference fits a three-electrode configuration without disrupting imaging.

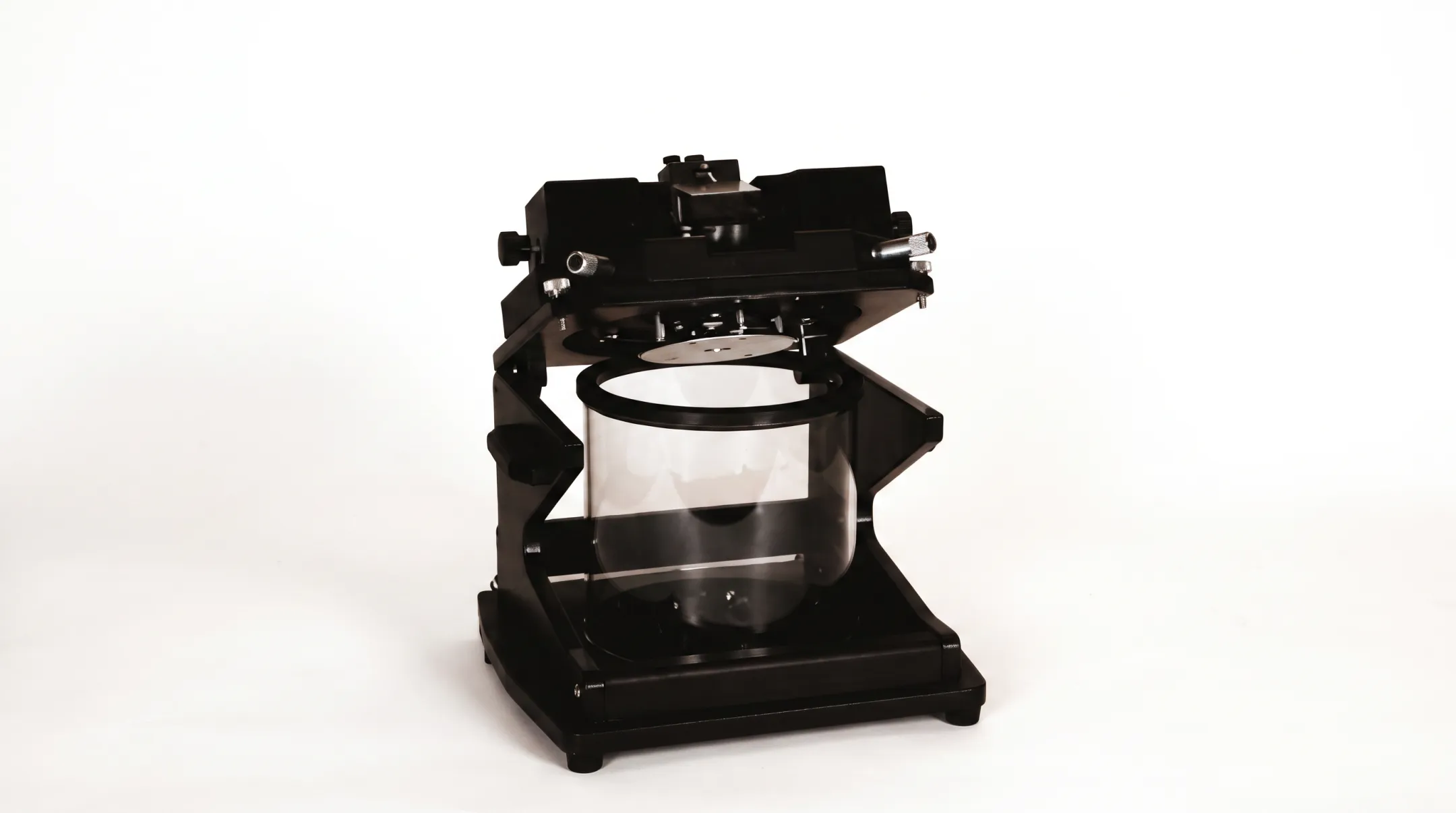

Molecular Imaging's modular Pendulum Multipurpose Scanner supports AFM, STM, and force-measurement configurations with liquid-cell designs for controlled aqueous or organic environments. Researchers can integrate a reference electrode alongside working and counter electrodes for operando imaging.
Maintenance, Storage, and Troubleshooting
A reference electrode is only as reliable as its junction. If the porous frit dries out, the electrode's potential becomes unpredictable, sometimes permanently.
Storage basics:
- Keep electrodes in filling solution matching their internal chemistry (near-saturated KCl for Ag/AgCl and SCE)
- Never let the junction sit dry, even between experiments
- Replace a frit that's cracked, chipped, or discolored rather than trying to revive it

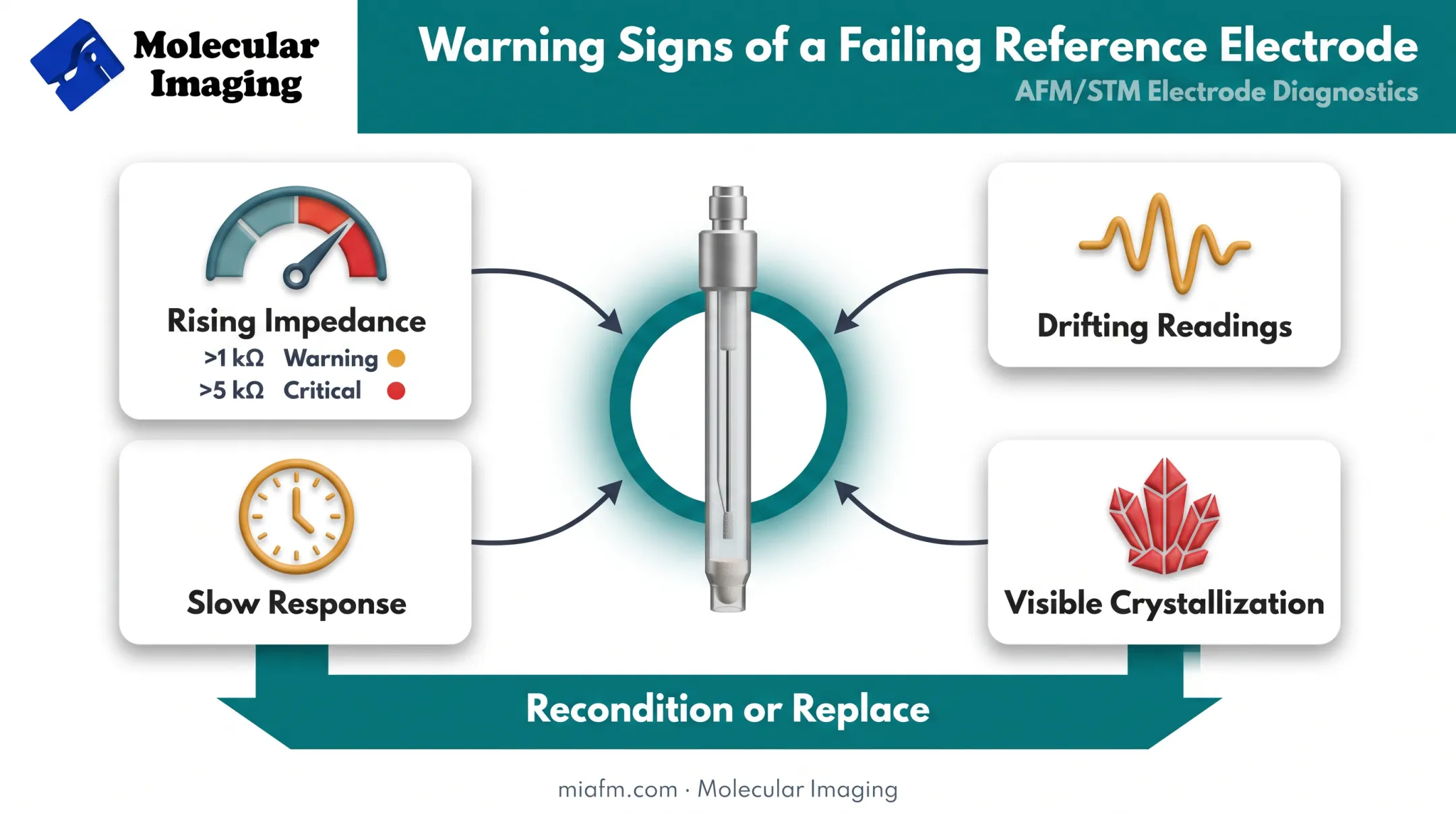

Warning signs of a failing electrode:
- Rising impedance (Gamry flags over 1 kΩ as concerning, over 5 kΩ as unacceptable)
- Drifting readings during equilibration
- Slow response to potential changes
- Visible salt crystallization or fouling on the junction
If you see these signs, stop and recondition the electrode or replace the frit before trusting new data.
Routine checks: Test against a known standard before each experiment. Allow 10–15 minutes for equilibration in the sample electrolyte. Pine Research considers less than 5 mV drift acceptable; anything higher calls for reconditioning.
Non-aqueous Ag/Ag+ electrodes need daily ferrocene calibration due to faster junction drift.
Frequently Asked Questions
What is a reference electrode in electrochemistry?
A reference electrode maintains a fixed, known potential that serves as the baseline for measuring or controlling a working electrode. It doesn't participate in the reaction under study.
Why is the standard hydrogen electrode (SHE) called a reference electrode?
SHE is defined as the universal zero-potential standard. Every other reference electrode's potential is ultimately expressed relative to it, even though SHE itself is rarely used in routine lab work.
What is the difference between a working electrode and a reference electrode?
The working electrode is where the reaction of interest happens, with a potential that changes during the experiment. The reference electrode stays fixed and non-reactive, providing a stable comparison point.
How often should a reference electrode be calibrated or refilled?
Check before each experiment if possible, and monitor impedance regularly. Refill or recondition when drift exceeds roughly 5 mV or impedance climbs above 1 kΩ.
Can I use an Ag/AgCl reference electrode in a non-aqueous solvent?
Not reliably. The aqueous filling solution creates a large, unstable liquid-junction potential in organic solvents. Use a solvent-matched non-aqueous Ag/Ag+ reference instead.
