Researchers in semiconductors, batteries, photovoltaics, and corrosion science run into this constantly. They need nanoscale-resolution mapping of work function and surface potential, but conventional electrical characterization tools operate at scales too coarse to catch localized defects, grain-boundary effects, or early corrosion sites.
This article breaks down what Kelvin Probe Force Microscopy (KPFM) actually measures, how the technique works at the physics level, where it delivers real research value, how it stacks up against related methods like EFM and classical SKP, and what to look for when selecting an AFM system built for this kind of work.
Key Takeaways
- KPFM maps contact potential difference (CPD) and work function at nanoscale resolution using a noncontact AFM mode
- AC/DC bias on a conductive tip nullifies electrostatic force or force gradient, yielding quantitative CPD
- Labs use KPFM on semiconductors, photovoltaics, batteries, corrosion systems, and biological samples
- AM-KPFM and FM-KPFM trade off setup simplicity against spatial and electrical sensitivity
- Modular AFM/SPM platforms run KPFM with complementary modes on a single system
What Is Kelvin Probe Force Microscopy?
KPFM is a noncontact atomic force microscopy mode that measures the electronic properties of a surface, not just its shape. It generates a map of contact potential difference that correlates directly with material composition, doping, charge trapping, and surface chemistry.
The Physics Behind KPFM: Work Function and Contact Potential Difference
Work function is defined by IUPAC as the minimum energy needed to remove an electron from a solid's surface to a point in the vacuum nearby. Every material has its own characteristic value, and that value shifts with doping level, surface chemistry, and even localized strain.
When a conductive AFM tip and a sample come into electrical contact, their Fermi levels equalize. This creates a measurable voltage difference between them called the contact potential difference, or CPD. That CPD is directly tied to the work function difference between tip and sample.

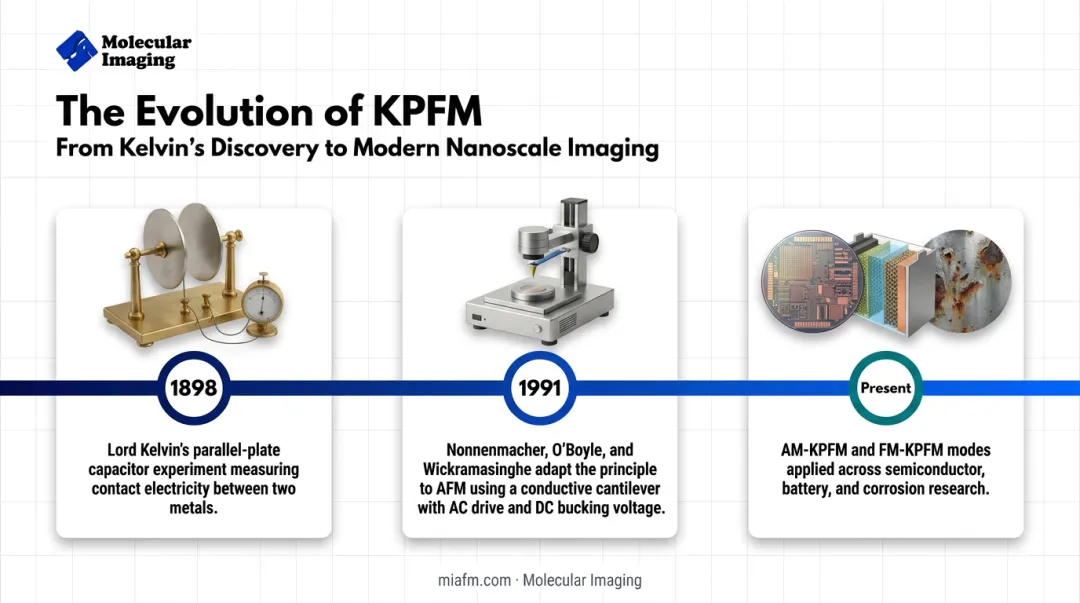

That idea goes back more than a century. Lord Kelvin described the underlying physics in his 1898 parallel-plate capacitor experiments, measuring contact electricity between two metals.
Nearly a century later, Nonnenmacher, O'Boyle, and Wickramasinghe adapted the principle to AFM, publishing the first Kelvin probe force microscopy paper in 1991. Their approach used a conductive cantilever as one plate of a Kelvin capacitor, with an AC drive voltage and a DC bucking voltage adjusted until electrostatic force vanished.
KPFM as a Noncontact AFM Mode
KPFM uses a conductive-coated cantilever, commonly platinum, gold, or doped diamond, scanned at constant height above the sample surface. That noncontact approach sets it apart from contact-mode techniques that drag a tip across the sample.
What does a KPFM scan actually show you? A CPD map that correlates to:
- Surface composition and chemical variation
- Semiconductor doping profiles
- Band bending at junctions and interfaces
- Charge trapping sites
- Corrosion susceptibility in metal alloys
You'll also see KPFM referred to as Surface Potential Microscopy in some literature and product documentation. On many commercial systems, including Molecular Imaging’s Kelvin Force Microscope, it runs simultaneously with topography imaging—so you get matched physical and electronic maps from one scan session.
How Does Kelvin Probe Force Microscopy Work?
The core mechanism is a feedback loop that nulls an electrostatic signal until it hits zero, and the voltage required to do that becomes your measurement.
The Tip-Sample Bias and Electrostatic Force
An AC+DC voltage is applied between the conductive tip and the sample. This generates an electrostatic force with three components: a DC term, a term at the AC drive frequency (ω), and a term at its second harmonic (2ω).
A feedback loop continuously adjusts the DC bias until the ω-component of that force drops to zero. When it does, the applied DC bias equals the contact potential difference. That's your surface potential value at that pixel.
Amplitude-Modulation vs. Frequency-Modulation KPFM
Two implementations dominate KPFM practice.
AM-KPFM nullifies the electrostatic force amplitude at the first harmonic. It's the more common closed-loop setup, generally easier to configure. Bruker's technical documentation describes conventional AM-KPFM as a dual-pass process: a TappingMode topography pass followed by a LiftMode electrical pass.
FM-KPFM nullifies the force gradient instead of the force itself. Because the measured CPD is weighted by the second capacitance derivative rather than the first, FM-KPFM suppresses the nonlocal cantilever contribution that can blur AM measurements.
Research from Satzinger, Brown, and Westervelt quantified this: their simulations showed cantilever contributions to the first capacitance derivative ranged from 0.066 to 0.139 fF/µm, comparable to the tip's own contribution, while the cantilever's contribution to the second derivative used by FM-KPFM was much smaller.
The practical tradeoff:
| Mode | Strength | Weakness |
|---|---|---|
| AM-KPFM | Simpler setup, widely available | More sensitive to long-range capacitive coupling |
| FM-KPFM | Better local sensitivity, less stray capacitance | More complex instrumentation |

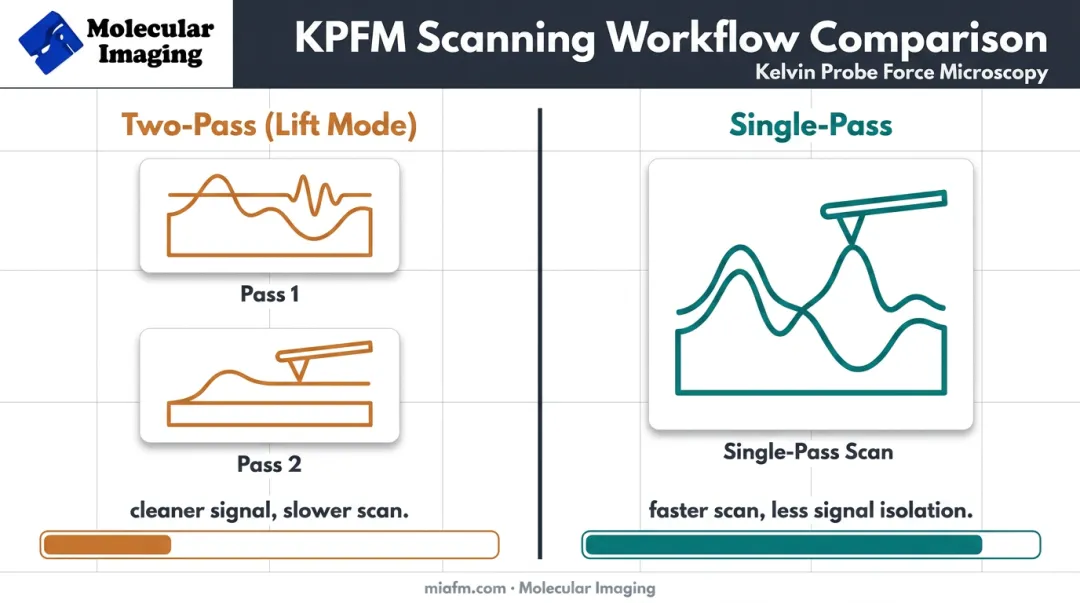

Single-Pass vs. Two-Pass (Lift Mode) Scanning
Two-pass scanning captures a topography line, stores it, then retraces the same line at a fixed lift height to record CPD separately. This keeps mechanical tapping forces from contaminating the electrical signal, but it doubles scan time and can miss fast surface changes.
Single-pass scanning captures both signals simultaneously, trading some signal isolation for speed. Newer open-loop variants push this further.
NIST researchers developed a high-speed digitization approach for sideband FM-KPFM that digitized the frequency response at 4 MHz. That speed enables observation of fast electrodynamic processes that closed-loop feedback would otherwise smear out.
A follow-up NIST study demonstrated open-loop AM-KPFM in single-pass PeakForce tapping mode, timing electrical modulation to each mechanical tap and removing an unwanted average cantilever contribution.

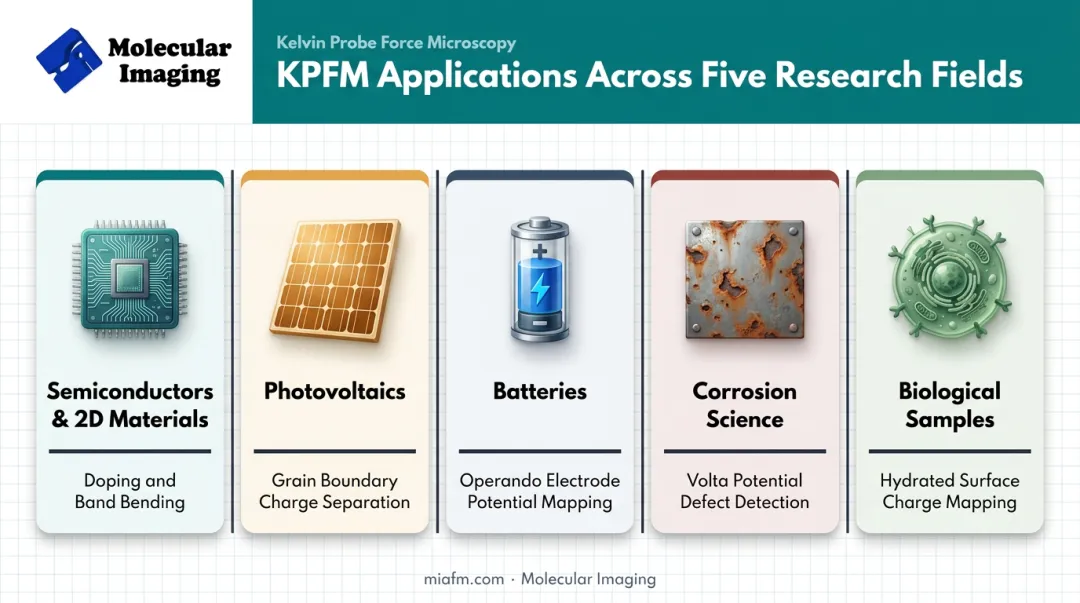

Applications of KPFM Across Research Fields
KPFM matters in labs where surface electronics—not just topography—decide whether a device works. Across semiconductors, energy materials, corrosion, and bio samples, the same CPD maps answer different questions.
Semiconductors and 2D materials
KPFM maps doping profiles, band bending, and charge transfer at heterostructure interfaces.
In a MoS2/GaN heterojunction diode study, KPFM showed GaN's surface potential roughly 100 mV above MoS2. That offset matched a ~100 meV work-function difference and a derived junction barrier of 0.23 eV. The same dataset yielded depletion widths of 104 nm in MoS2 and 2.26 nm in GaN.
Typical outputs researchers extract include:
- Local work-function and CPD contrast at interfaces
- Band-bending and barrier height estimates
- Depletion-width values from potential profiles
Photovoltaics and solar cells
The same surface-potential contrast explains how charge separates near grain boundaries. Perovskite studies report lower work function at boundaries, with local built-in fields on the order of 10²–10³ V/cm. Those fields pull electrons toward boundaries and repel holes toward grain interiors, improving charge separation.
Batteries and energy storage
In energy-storage cells, operando KPFM tracks electrode surface potential during cycling.
One all-solid-state Li-ion study showed charging starting at particles near the current collector and advancing toward the solid electrolyte, while discharge ran more uniformly. Full CPD frames took about 4 minutes; stationary-tip setups reached roughly 1 ms temporal resolution for fast dynamics.
Corrosion science and protective coatings
Volta potential maps flag localized corrosion before it is visible. On aluminum alloy AA2024-T3, intermetallic particles—including Mg-containing S-phase—registered as noble versus the surrounding matrix, marking where galvanic attack is likely to start.
Biological and life-science imaging
Extending KPFM to hydrated and biological samples is harder: standard assumptions about dry, conductive surfaces often fail. Molecular Imaging bio-focused platforms pair MAC Mode with liquid-cell compatibility so researchers can probe surface charge in these environments without forcing ambient-style KPFM conditions.
KPFM vs. Related Surface Potential Techniques
KPFM shares naming DNA with several other surface-potential and electrical methods. The differences matter when you pick a tool.
| Technique | What it measures | Typical scale | Quantitative CPD? |
|---|---|---|---|
| KPFM | Contact potential difference via AFM | nm resolution; scans usually <100 µm | Yes (DC nulling) |
| SKP | Work-function / potential via vibrating capacitor | Hundreds of µm or larger | Yes (macro) |
| EFM | Electrostatic force or frequency shift | AFM-scale | No (qualitative) |
| 4-probe | Sheet resistance / contact quality | ~mm probe spacing | N/A (not CPD) |
KPFM vs. Classical Scanning Kelvin Probe (SKP)
SKP uses a macroscopic vibrating capacitor probe, not an AFM cantilever. BioLogic guidance puts typical SKP resolution at hundreds of micrometers or larger, with scan areas often in the thousands of micrometers.
That scale makes SKP a workhorse for macro corrosion and coating work. KPFM reaches nanometer resolution but is usually limited to scan areas under 100 µm.
KPFM vs. Electrostatic Force Microscopy (EFM)
EFM measures raw electrostatic force or frequency shift from surface charge. It has no nulling DC feedback loop.
The result is qualitative output mixed with trapped charge, permittivity, and conductivity—and more topographic crosstalk. KPFM's DC-nulling step turns that fuzzy electrostatic signal into a quantitative CPD value.
KPFM vs. the "Kelvin 4-Probe" Method
This one trips people up in search results. The four-point (or "4-probe") method is an unrelated resistance technique for sheet resistance and contact quality, not work function.
NIST's Four Dimensions 280DI, for example, is a contacting probe system with a 1 mΩ to 800 GΩ range and 1 mm probe spacing. If you're after work function, this is not the tool.
Choosing the Right AFM System for KPFM Research
Not every AFM is set up to do KPFM well, and picking the wrong system means fighting your instrument instead of your sample.
Key technical considerations:
- Tip coating and material options (platinum, gold, doped diamond cantilevers built for electrical modes)
- Availability of both open-loop and closed-loop KPFM implementations
- Environmental control: ambient air, humidity control, vacuum, or temperature-controlled staging depending on your sample

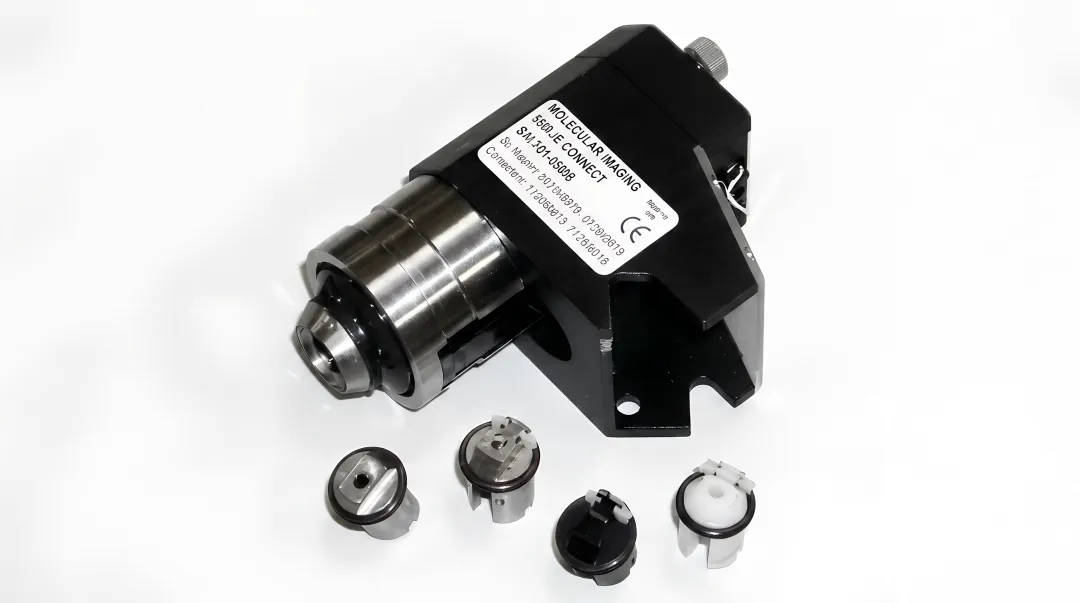

Those criteria only help if the platform can switch modes without a second instrument. Molecular Imaging's 5500 PicoPlus AFM/STM platform supports KPFM as a native mode through its interchangeable nose cone system, alongside EFM, MFM, conductive AFM, and electrochemical STM.
A battery lab studying electrode degradation, for instance, can map surface potential with KPFM one day and switch to conductive AFM the next on the same scanner body.
For electrical probes, the EFM-10 cantilever is built for EFM and KPFM on electronic materials and semiconductor surfaces. Pair it with gold-on-mica calibration substrates as work-function references. Gold's well-characterized ~5.1 eV work function gives you a solid baseline before you measure the real sample.
Instrument downtime is the enemy of any multi-week KPFM study. Molecular Imaging backs its systems with ZoomAFM repair and service—hardware diagnostics, calibration, and remote troubleshooting for Agilent-legacy AFM and STM systems.
Researchers setting up KPFM from scratch can also pull a dedicated KFM Technical Note and Surface Potential Measurement manual from the documentation library.
Frequently Asked Questions
What does a Kelvin probe measure?
A Kelvin probe measures the contact potential difference between a probe tip and a sample surface. That CPD value converts directly into the sample's work function or, in corrosion contexts, its Volta potential.
What is the Kelvin 4-probe method used for?
The four-point (4-probe) method is an electrical resistance technique, unrelated to Kelvin probe work function measurement. It's commonly used for sheet resistance and contact quality testing on films and substrates.
What is an AFM Kelvin probe?
An AFM-based Kelvin probe, or KPFM, uses a conductive cantilever to map surface potential and work function at nanoscale resolution. It typically runs alongside standard topography imaging in the same scan.
What is the difference between KPFM and EFM?
KPFM uses DC feedback to null electrostatic force and report quantitative CPD values. EFM records raw force or frequency shifts, giving qualitative contrast that is more prone to topographic artifacts.
What spatial resolution can KPFM achieve?
Resolution depends on tip geometry, tip-sample distance, and mode. Ambient pulsed-force KPFM can reach under 10 nm; FM-KPFM in ultra-high vacuum has shown sub-nanometer CPD contrast.
Can KPFM be used on non-conductive or biological samples?
KPFM needs enough conductivity for a measurable CPD, but it works on thin insulating layers and hydrated biological samples. AC-KPFM has mapped charged particles in water up to about 20 mM ionic strength; full physiological conditions remain difficult.
