Mica's perfect basal cleavage produces surfaces flat down to the atomic level, but that flatness comes with a catch. The moment you cleave it in air, atmospheric water and CO2 start reacting with the exposed surface. Understanding that timeline, and what it means for your imaging results, is the difference between reproducible data and mystery artifacts.
This article covers mica's atomic structure, what actually happens during and after cleavage, how quickly the surface ages, and practical steps for getting consistent results in the lab.
Key Takeaways
- Perfect basal cleavage yields atomically flat surfaces for AFM/STM calibration and deposition
- Air-cleaved surfaces change within minutes as CO2 and water react with exposed potassium ions
- Fresh cleavage is critical for high-resolution DNA and protein imaging
- Muscovite remains the standard mica for research-grade substrates
What Happens When Mica Is Cleaved in Air
Mica is a phyllosilicate built from stacked tetrahedral-octahedral-tetrahedral "sandwiches." Within each sandwich, bonding is strong. Between sandwiches, weak interlayer potassium ions hold the layers together. That weak bond is exactly what makes clean, single-plane cleavage possible.
Splitting the crystal along its {001} plane exposes a negatively charged basal surface almost instantly to the surrounding air. This surface doesn't stay pristine for long.

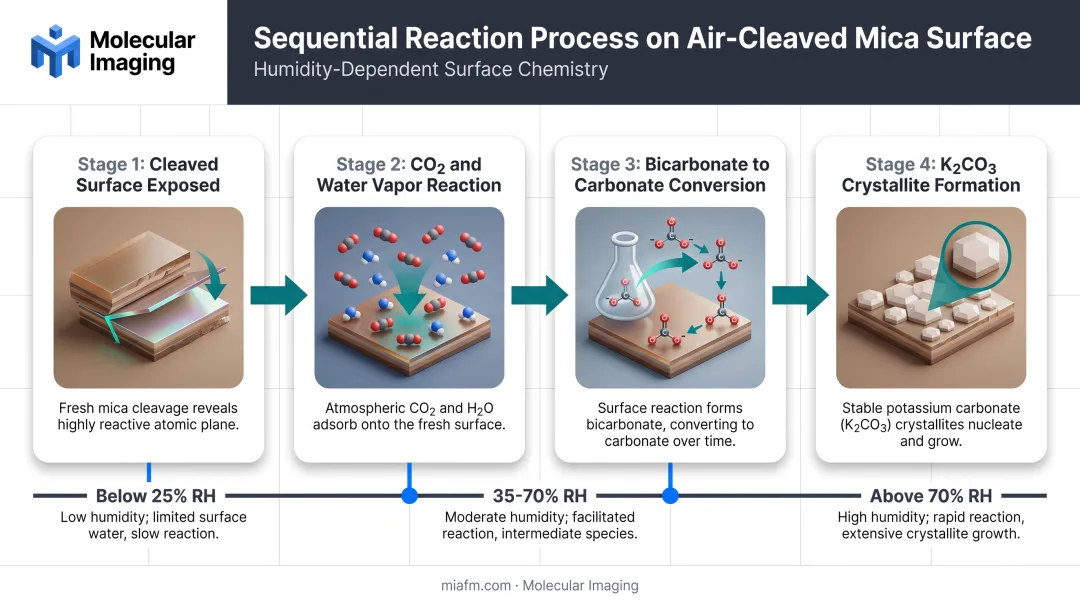

Atmospheric CO2 reacts with surface hydroxyl groups in the presence of water vapor, forming bicarbonate intermediates that convert to carbonate. Potassium ions combine with these carbonate species to form K2CO3.
High-resolution NC-AFM work published in Langmuir confirms this directly: flat hexagonal islands with lattice patterns consistent with potassium carbonate crystallites appear scattered across air-cleaved surfaces.
Humidity controls how this layer behaves:
- Below ~25% RH: Potassium carbonate crystallites stay relatively rigid and localized
- 35-70% RH: Crystallites begin dissolving, potassium becomes mobile
- Above 70% RH: The reaction layer behaves more like a fluid film
Surface charge shifts quickly as well. Freshly cleaved mica can carry charged domains that neutralize within 2-8 minutes at 30-48% relative humidity. Give it several days, and an adsorbed contamination layer can grow to roughly 2-3 nanometers thick.
Despite this surface chemistry, the underlying crystallographic flatness stays intact at the nanometer scale. The reaction layer sits on top of an atomically smooth foundation. It doesn't destroy it.
Why the Freshly Cleaved Surface Matters for Nanoscale Imaging
AFM and STM measurements only mean something if you can tell sample features apart from substrate noise. That requires near-zero background roughness, which is precisely what mica delivers immediately after cleavage.
This matters most in BioAFM applications, where researchers image DNA, proteins, and other biomolecules, often in liquid. A freshly cleaved surface gives you a clean, chemically defined starting point with no prior adsorbates obscuring your data.
A 2013 review on AFM imaging of DNA and protein-DNA complexes makes the point directly: surface preparation is critical for reliable, reproducible results. The review describes functionalized variants like AP-mica and APS-mica, engineered to control surface charge for nucleic acid binding. Those smooth backgrounds let researchers visualize supercoiled plasmid DNA without ambiguity.
Practical deposition examples on mica substrates:
- Plasmid DNA adsorbed using 1 mM magnesium chloride
- Ferritin protein imaged in water
- Peptide structures examined via tapping-mode AFM
- Lipid bilayers characterized in buffer solution

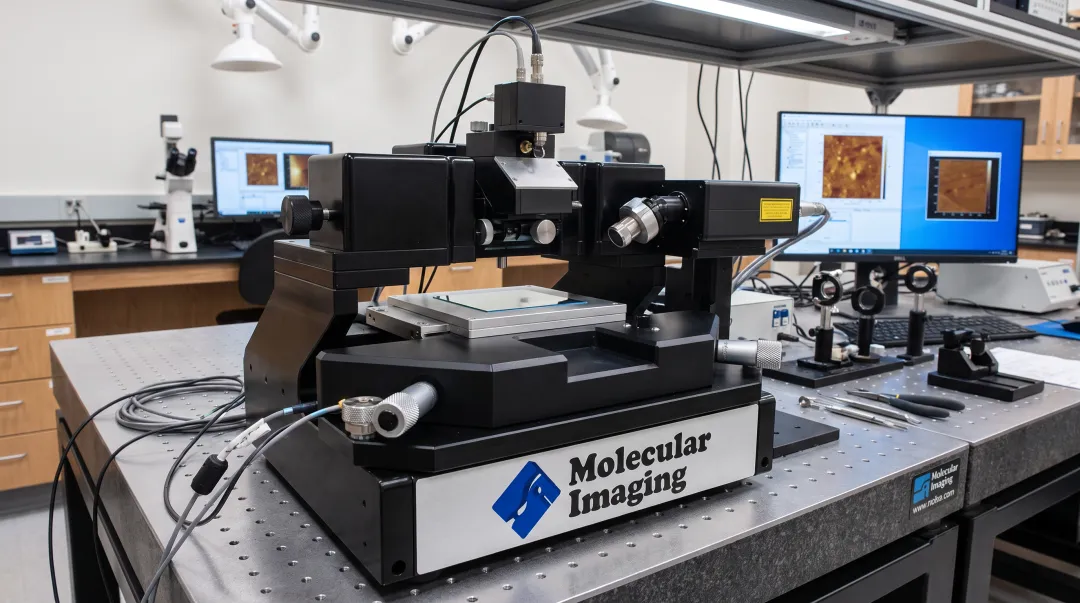

That same clean-substrate workflow is what Molecular Imaging's 5500 PicoPlus AFM+STM and 5500 ILM PicoPlus BioAFM systems are built around. Interchangeable tapping, contact, MAC-mode, and liquid-imaging configurations pair naturally with mica substrates, whether you need a 9 µm × 9 µm scan for atomic resolution or a 90 µm × 90 µm range for broader surveys.
Surface Aging: How Long Does a Cleaved Mica Surface Stay Usable?
There's no single universal "shelf life" number for cleaved mica. Published data still shows how fast the surface changes.

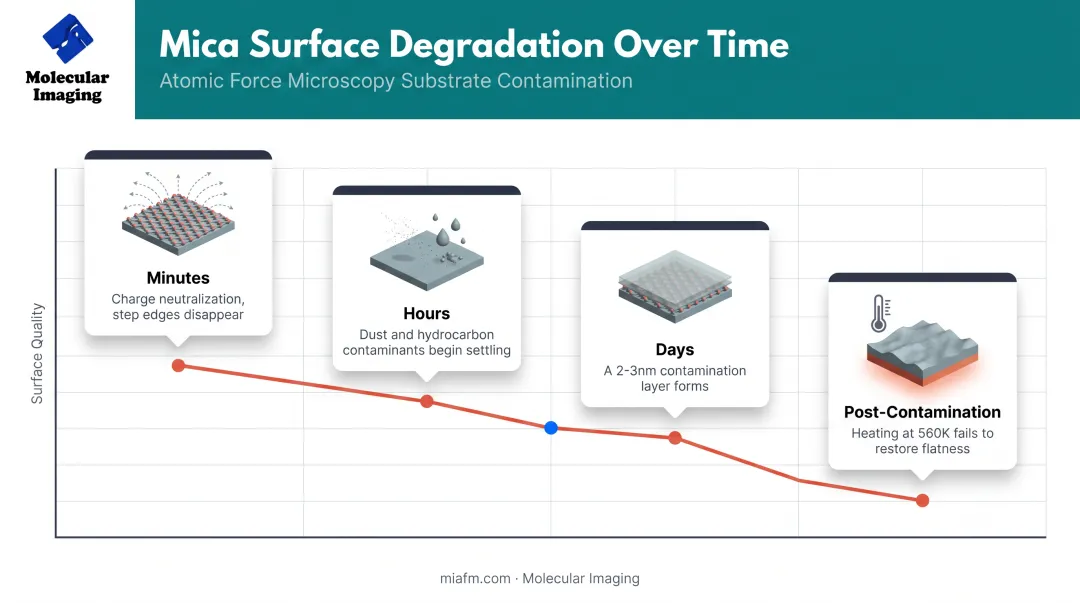

Within minutes of cleavage:
- Surface charge begins neutralizing (2-8 minutes at 30-48% RH)
- Mobile atomic-scale steps start disappearing
- Airborne dust, hydrocarbons, and moisture begin settling
Over longer timescales, an adsorbed contamination layer reaches roughly 2-3 nm after several days. A 2013 study in the Journal of Chemical Physics found that prolonged exposure at 70-90% RH altered both conservative and dissipative nanoscale interaction measurements. The authors attributed the shift to accumulating water and carbonate species (AIP Publishing study).
Temperature and humidity speed or slow this buildup, but neither gives a fixed countdown that holds across every lab.
That is why researchers cleave mica immediately before mounting samples instead of pre-cleaving and storing sheets. Once contamination sets in, degassing or heating rarely restores the original atomically flat state.
One NC-AFM study found that even prolonged heating at 560 K under ultra-high vacuum failed to fully recover a flat surface once particles had formed.
Muscovite vs. Other Mica Types for Surface Science
Not all mica performs equally in the lab. Here's how the three common types stack up:
| Type | Cleavage Quality | Optical Character | Research Suitability |
|---|---|---|---|
| Muscovite | Single, perfect cleavage | Light, transparent | Standard for AFM/STM; step-free areas can exceed 1 cm² |
| Phlogopite | Perfect cleavage, flexible sheets | Light to golden brown | Usable but lacks muscovite's documented flatness benchmark |
| Biotite | Excellent cleavage, variable chemistry | Darker, often pleochroic brown | Not preferred for high-resolution imaging |
Muscovite (KAl2(AlSi3O10)(OH,F)2) is the workhorse. Its transparency and consistent basal cleavage make it easy to inspect visually before use. High-quality specimens have been documented with step-free regions larger than 1 cm² (De Poel et al., Surface Science, 2014).
Phlogopite cleaves cleanly and yields flexible sheets, so it can serve as a substrate. It still lacks the extensive flatness documentation that makes muscovite the default for AFM and STM work.
Biotite's darker coloring and more variable iron content translate to less uniform cleavage. For most surface-science work, that variability is a dealbreaker. It's fine for petrology thin sections, but not for nanoscale substrate work where you need every square micron to behave the same way.
Best Practices for Preparing and Handling Air-Cleaved Mica Substrates
Getting consistent results starts with disciplined technique, not fancy equipment.

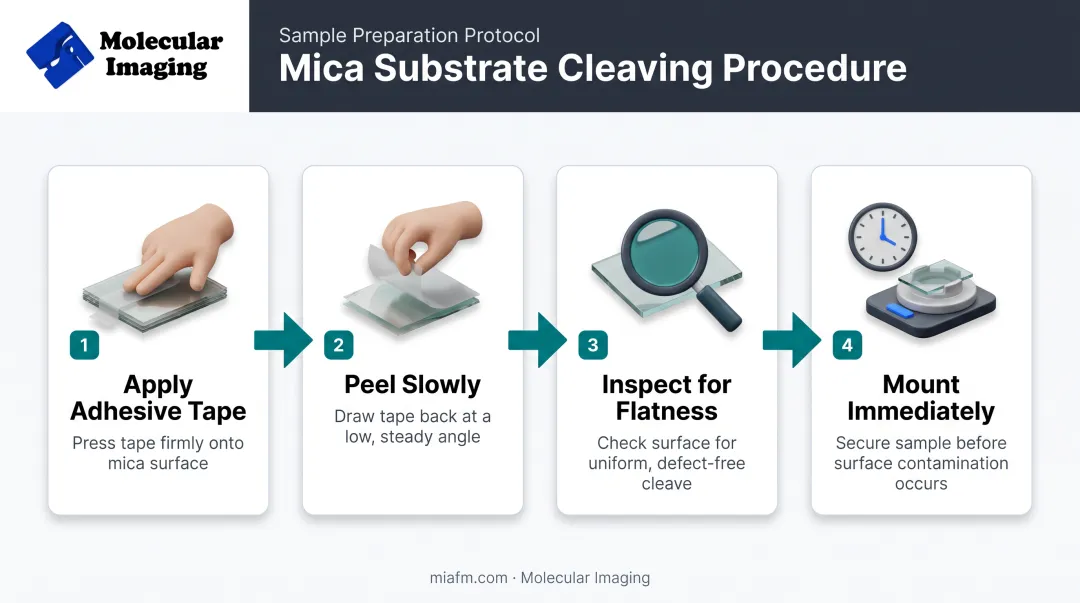

Standard cleaving procedure:
- Press adhesive tape firmly against the top mica layer
- Peel slowly and steadily to lift a clean layer without tearing
- Inspect visually (or under low magnification) for uniform flatness
- Mount immediately, minimize the time between cleaving and deposition or imaging
Handle mica by its edges whenever possible. Fingerprints and stray particulates introduce contamination that no amount of careful cleaving can fix afterward.
Ambient conditions matter just as much once the fresh face is exposed:
- Cleave in a low-humidity, particulate-controlled space when possible
- Avoid cleaving near airflow sources like vents or open windows
- Record the interval between cleaving and imaging—that gap drives run-to-run reproducibility
Calibration-grade mica keeps cleave quality consistent from batch to batch. Molecular Imaging stocks 2 cm mica substrates and Au gold thin film on mica (large and small formats) for fresh cleaves, calibration, and surface-roughness checks alongside routine imaging substrates.
For uncleaved sheets waiting to be used, keep them sealed away from humidity and dust until you're ready to cleave. Once the tape comes off, the clock starts—mount and image before the fresh surface has time to age.
