Atomic Force Microscope

Introduction

A strand of DNA is roughly 2 nanometers wide. A single graphene layer is one atom thick. Neither shows up under a standard light microscope, no matter how sharp the lens.

Researchers in nanotechnology, materials science, and biology face a real problem: they need atomic-level detail, but many samples can't survive a vacuum chamber, a conductive coating, or aggressive sample prep. Cells die. Polymers deform. Delicate molecular structures get destroyed before anyone gets a usable image.

The atomic force microscope (AFM) solves this by physically "feeling" a surface instead of photographing it. This guide covers what an AFM is, how it works, where it's used, how it stacks up against scanning electron microscopy (SEM), and what actually drives the cost of a system.

Key Takeaways

• AFM senses force—not light or electrons—so it images in air, liquid, or vacuum without sample damage
• Sub-nanometer resolution is achievable; tip, sample, and mode determine real-world results
• Modes like KPFM, MFM, and conductive AFM map electrical and magnetic properties with topography
• AFM trades scan speed and field size for 3D quantitative data and minimal sample prep
• Modular systems add electrochemistry or bio-imaging capabilities without new hardware

What Is an Atomic Force Microscope?

An atomic force microscope (AFM) is a scanning probe microscope that maps a surface by dragging or tapping a sharp tip across it, rather than bouncing light or electrons off it. There's no lens, no electron beam, and no vacuum requirement. Just a physical probe reading the forces between itself and the sample.

To grasp the scale involved: if an atom were the size of a tennis ball, a tennis ball would be roughly the size of Earth. That's the jump AFM makes routinely, resolving features measured in fractions of a nanometer.

Gerd Binnig, Calvin Quate, and Christoph Gerber introduced the AFM in a 1986 Physical Review Letters paper, building on the Nobel Prize-winning scanning tunneling microscope. Their original prototype achieved a lateral resolution near 30 angstroms and vertical resolution below 1 angstrom in air, figures that still impress even though modern results vary by tip, sample, and mode. Digital Instruments released the first commercial AFM in 1989.

The Three Core Subsystems of an AFM

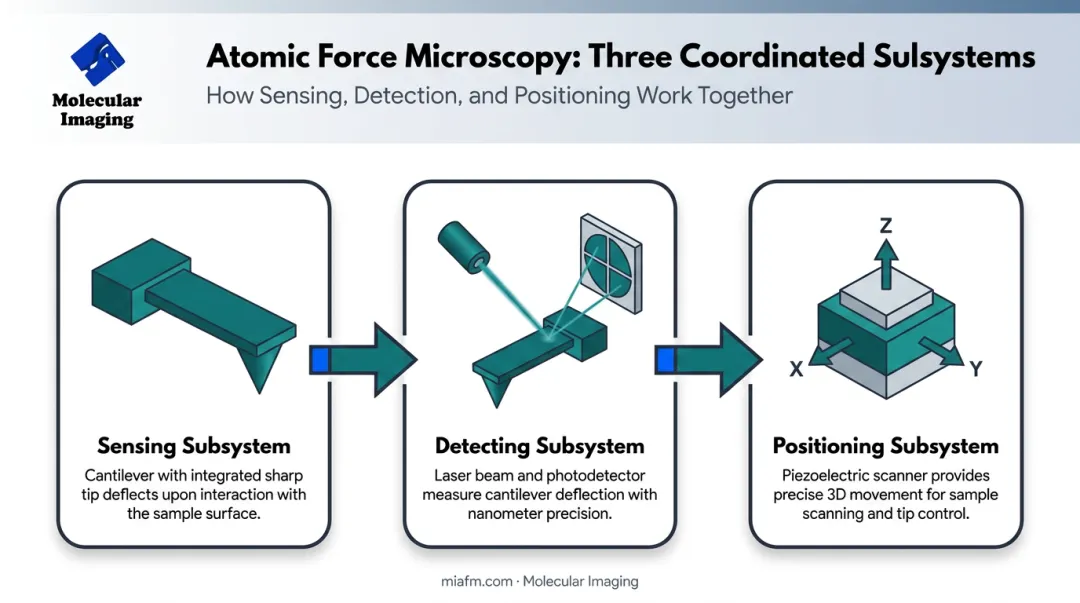

Every AFM, regardless of manufacturer, relies on three coordinated subsystems:

• Sensing subsystem: A sharp tip (often just a few nanometers at the apex) sits at the end of a flexible cantilever that bends in response to surface forces
• Detecting subsystem: A laser reflects off the cantilever onto a position-sensitive photodetector, converting tiny deflections into a measurable signal
• Positioning subsystem: Piezoelectric scanners move the tip (or sample) with sub-nanometer precision in X, Y, and Z

Because this whole process relies on physical force rather than optics or electron beams, AFM doesn't need a vacuum chamber or conductive staining. That's a major advantage for biological samples and in-situ experiments, where researchers need to watch a reaction or a cell behave in real conditions — not a chamber built for an electron microscope.

How Does an Atomic Force Microscope Work?

As the tip approaches a sample, attractive forces (van der Waals interactions, electrostatic pull) draw the cantilever downward. Once contact occurs, repulsive forces take over and push it back. This whole dance follows Hooke's law, where cantilever deflection is directly proportional to the force applied.

Here's the feedback loop in practice:

1. The laser reflects off the cantilever onto the photodetector
2. Any change in cantilever position (deflection or oscillation amplitude) shifts where the laser lands
3. A feedback controller adjusts the piezoelectric Z-scanner to maintain a constant force or oscillation setpoint
4. The Z-adjustments, recorded across the scan, become the topographic map

Primary AFM Imaging Modes

Mode selection depends entirely on the sample: there's no single "best" mode for every scenario.

• Contact mode: The tip drags across the surface under constant force. It's fast and straightforward but risks shear damage on soft or fragile samples.
• Tapping mode (intermittent contact): The cantilever oscillates near resonance, touching the surface briefly each cycle. Lower lateral forces make it the standard general-purpose mode.
• Non-contact mode: The tip oscillates above the surface, sensing attractive forces without ever touching it. Ideal for soft, sticky, or easily damaged materials, though it demands a fast, low-noise feedback loop to stay stable.

Beyond topography, specialized modes capture different data channels:

• Conductive AFM maps current flow
• Kelvin probe force microscopy (KPFM) maps surface potential
• Magnetic force microscopy (MFM) isolates magnetic domain structure with a two-pass lift technique

Modular AFM/STM platforms make that expansion practical. With Molecular Imaging's interchangeable nose cone systems, a lab can start with basic tapping-mode imaging and add conductive or magnetic capability later, without replacing the entire instrument.

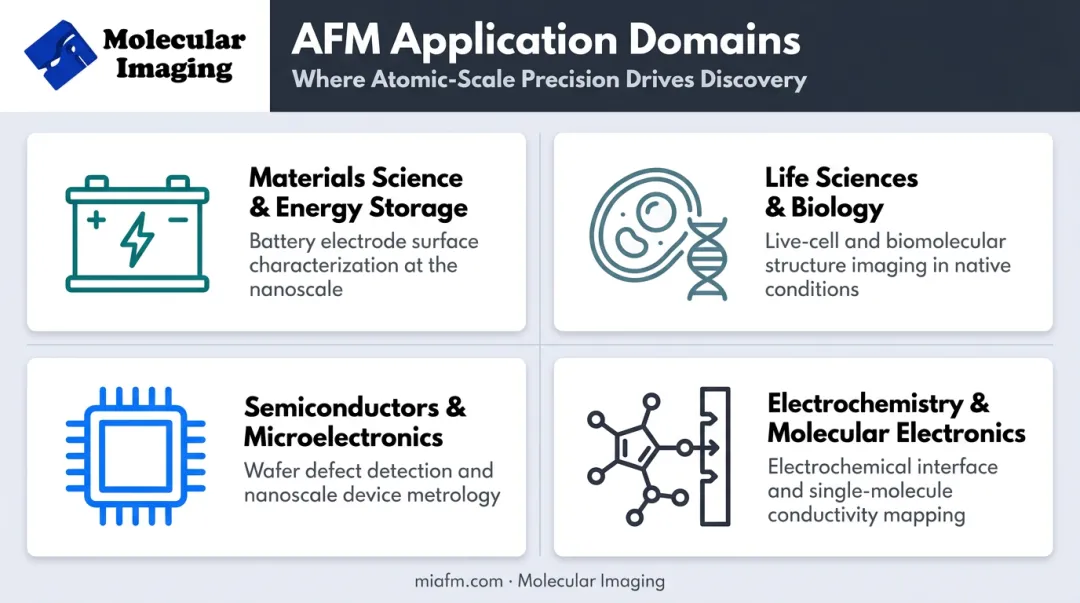

Key Applications of Atomic Force Microscopy

Materials Science and Energy Storage

AFM is a workhorse for characterizing thin films, polymers, and 2D materials like graphene. In battery research specifically, a 2020 Scientific Reports study used in-situ AFM to observe solid-electrolyte interphase (SEI) nucleation and growth on graphite and hard-carbon anodes in real time, showing that formation potential and adhesion varied by material and surface roughness. Few other techniques deliver that operando view of the interface as it forms.

Typical materials and energy work with AFM includes:

• Thin-film roughness, adhesion, and mechanical mapping
• Polymer morphology and phase separation
• 2D materials such as graphene and related stacks
• In-situ SEI and electrode interface studies in battery cells

Life Sciences and Biology

Beyond solid-state samples, the same probe methods extend into liquid. Tapping and non-contact modes let researchers image proteins, DNA, membranes, and even living cells without fixing or staining them.

Specialized BioAFM systems, including designs that use magnetic-field-driven cantilever oscillation instead of acoustic excitation, cut background noise enough to resolve delicate structures such as chromatin or liposomes in physiological buffer.

Semiconductors and Microelectronics

Where biology needs gentle liquid imaging, device work needs electrical contrast on the same topography scan. Conductive AFM and KPFM map electrical properties directly on wafers and devices, including:

• Dopant profiling
• Dielectric defect inspection
• Work-function mapping

Conductive AFM modes let a single probe capture topography and conductivity at the same time.

Electrochemistry and Molecular Electronics

The same need for in-situ electrical data shows up at electrochemical and molecular interfaces. Electrochemical AFM (EC-AFM) tracks redox reactions, corrosion, and battery interfaces as they happen in liquid electrolyte.

Combined STM/AFM systems go further: simultaneous imaging and electrical measurement of molecular junctions for researchers studying charge transport at the single-molecule level. Modular platforms that combine AFM, STM, and electrochemical accessories can cover electrochemistry, molecular electronics, and standard topography on one system instead of three separate instruments.

AFM vs. SEM: What's the Difference?

Both tools image at scales invisible to light microscopy, but they work on fundamentally different principles.

Factor	AFM	SEM
Image type	True 3D topography with quantitative height	2D projection; height is less direct to quantify
Sample prep	Minimal; no coating needed for insulators	Often needs conductive coating for non-conductors
Environment	Ambient air, liquid, or vacuum	Requires vacuum
Field of view	Smaller (about 100 x 100 µm typical max)	Much larger — millimeters across
Extra data	Mechanical, electrical, and magnetic properties with topography	Primarily imaging; elemental analysis with add-ons
Speed	Minutes per image (faster on specialized systems)	Generally faster for large-area surveys

Choose AFM when you need:

• Quantitative roughness and true 3D surface metrology
• Soft or biological samples with minimal prep
• Mechanical, electrical, or magnetic data alongside topography
• Imaging in air or liquid without a vacuum chamber

Choose SEM when you need:

• Rapid imaging over large fields of view
• Surveying very rough, high-relief surfaces
• Fast sample screening before higher-resolution work

Neither replaces the other. Pick AFM for quantitative surface properties; pick SEM for fast, wide-area structural context.

Advantages and Limitations of AFM

Advantages:

• Operates in air, liquid, or vacuum — no forced environment
• Minimal sample preparation for most insulating or hydrated samples
• Delivers quantitative 3D height data, not just a flat image
• Can measure mechanical, electrical, and magnetic properties in the same scan

Limitations:

• Smaller scan areas and generally slower imaging than SEM
• Tip wear and contamination can blur or duplicate features over time
• Susceptible to thermal drift, scanner creep, and vibration artifacts

Modern instrumentation addresses many of these weak points. Temperature-controlled stages—such as Molecular Imaging environmental accessories that run -30°C to 250°C—pair with anti-drift stage designs and isolation chambers to hold steady conditions during long scans.

That stability matters for phase-transition studies and reactive gas experiments, where drift alone can ruin a dataset.

How Much Does an Atomic Force Microscope Cost — and How to Choose the Right System

AFM system pricing varies widely based on automation level, imaging modes, and modularity. A basic research-grade system sits at the lower end; a fully automated, multi-technique industrial platform costs significantly more. Prices change quickly, so focus on the factors that drive cost rather than a single sticker number.

Cost factors to weigh:

• Base system: Scanner design, automation, and included software
• Optional modules: Environmental control, electrochemistry cells, conductive AFM add-ons, KPFM/MFM nose cones
• Consumables: Cantilevers and probes, from tens to a few hundred dollars each by coating and type
• Service and calibration: Ongoing costs that keep measurements trustworthy over years of use

For labs already running a system, full replacement isn't always necessary. Molecular Imaging's ZoomAFM Fast Online Service supports existing Agilent and Molecular Imaging AFM/STM owners with diagnostics, hardware repair, calibration, and remote troubleshooting, often without an on-site visit.

The company's web store also carries cantilevers, STM tips, calibration samples, and gold-on-mica substrates for labs that maintain systems in-house. Those ongoing costs belong in the same decision as the initial purchase.

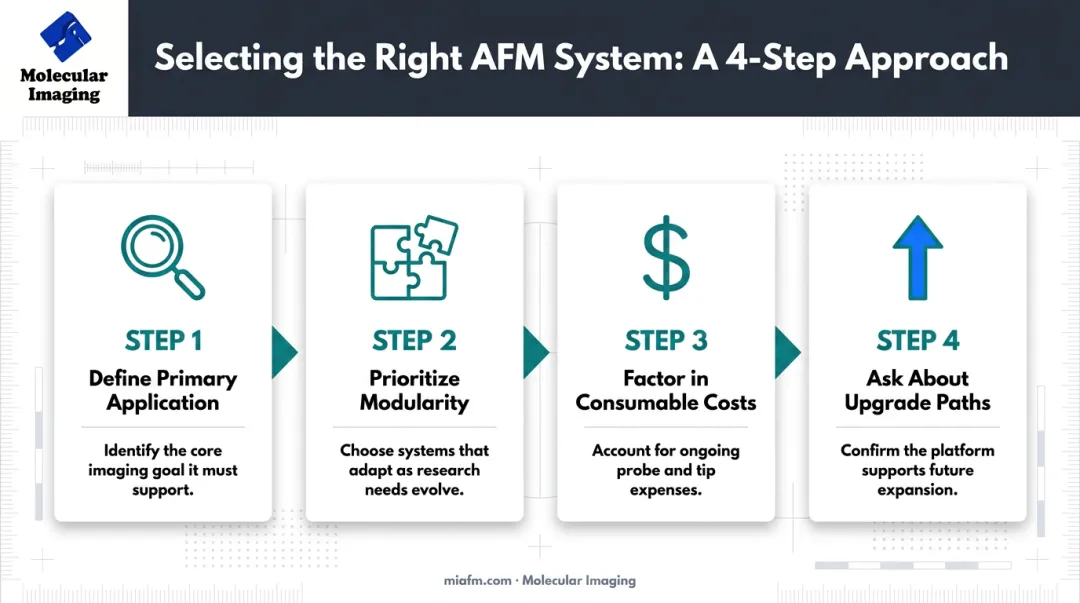

A practical approach for choosing a system:

1. Define your primary application (biology, semiconductors, electrochemistry) before comparing specs
2. Prioritize modularity if your research direction might shift toward new imaging modes later
3. Factor in consumable costs, not just the sticker price
4. Ask about upgrade paths — a modular nose cone system can add KPFM or MFM years after initial purchase, avoiding a full system swap

Frequently Asked Questions

How much does atomic force microscopy cost?

Entry-level systems start in the tens of thousands of dollars; fully configured research platforms can reach several hundred thousand, depending on automation, modes, and accessories. Service and modular upgrades for existing owners usually cost far less than a full replacement.

What is the basic principle of atomic force microscopy?

A sharp tip on a flexible cantilever senses forces from the sample surface. A laser reflecting off the cantilever onto a photodetector measures these deflections, which a feedback loop translates into a topographic image.

What is atomic force microscopy used for?

AFM is used across materials science, life sciences, semiconductor inspection, and electrochemistry — anywhere researchers need nanoscale topography plus mechanical, electrical, or magnetic property data.

What is the difference between atomic force microscopy and scanning electron microscopy (SEM)?

AFM produces true 3D topography without a vacuum or conductive coating, while SEM generates a 2D projection and typically requires vacuum conditions. AFM suits soft or insulating samples; SEM covers larger areas faster.

What is the resolution of an atomic force microscope?

AFM can achieve sub-nanometer to near-atomic resolution on suitable samples. Actual results depend on tip quality, sample properties, and imaging mode—not a fixed number for every scan.

Can AFM be used to study living cells or biological samples?

Yes. Tapping and non-contact modes on BioAFM systems built for liquid imaging can resolve live cells and biomolecules near physiological conditions with minimal sample disruption.
