Introduction
Atomic force microscopy has become a workhorse for nanoscale imaging across materials science, nanotechnology, and life-science research. Day to day, image quality still hinges on a few high-wear parts staying clean, aligned, and within spec.
Many researchers struggle with the same frustrating pattern: a system that worked perfectly last month suddenly produces noisy, distorted scans. The cause is rarely mysterious—usually a worn cantilever, a misaligned laser, or a piezo scanner that hasn't been checked in months.
Skip maintenance long enough, and you risk more than a bad image. You risk calibration drift that quietly compromises published data, unplanned downtime mid-experiment, and premature failure of expensive components like scanners and photodetectors.
This guide covers why AFM maintenance matters, the different maintenance types you'll encounter, warning signs that servicing is overdue, a general maintenance schedule, and the questions researchers ask most often.
TL;DR
- Routine cleaning, cantilever checks, and calibration keep AFM imaging consistent session to session.
- Scale maintenance to usage—from daily tip inspections to periodic major overhauls.
- Noise, drift, or inconsistent scans on known samples are early red flags.
- A structured schedule, correct-spec parts, and expert service (like ZoomAFM) protect your instrument investment long-term.
Why Maintenance of AFM Is Important
An AFM system represents a significant lab investment, often the centerpiece of a shared research facility. Treating maintenance as optional puts that investment at risk in ways that aren't always obvious until it's too late.
Small Neglect, Big Image Problems
Laser alignment on the cantilever is one of the most critical setup steps in any AFM session; it directly determines your signal-to-noise ratio. A misaligned laser doesn't just slightly reduce quality. It can push a system into unusable territory.
Cantilever tips are similarly fragile. Loose debris can attach to a tip, and blunted or contaminated tips degrade image quality. A damaged tip can even develop two or more sharp points, producing images with duplicated surface features that look like real topography but aren't.
Tips also wear during normal use. NIST research found that changes in tip size and shape alter resonant frequency, and that real-time frequency monitoring resolved tip-size changes down to 0.1 nm increments to improve nanometer-scale measurement accuracy. In other words, wear happens whether you notice it or not.
The Data Integrity Problem
Here's the part researchers sometimes underestimate: an AFM that's slightly out of calibration doesn't just produce a bad-looking scan. It can throw off an entire project's data set.
Piezo creep is a good example. After a sudden voltage, offset, or scan-size change, most scanner motion happens quickly, but some continues slowly afterward, distorting features along that scan direction. Without regular scanner checks and calibration, those artifacts are easy to mistake for real topography.

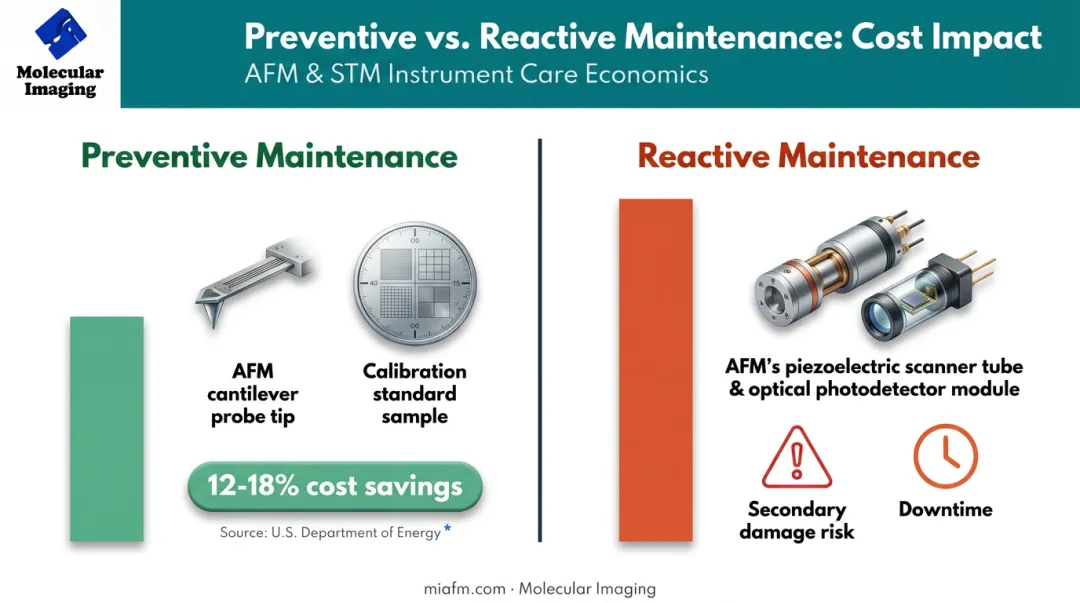

Preventive Costs Less Than Reactive Repairs
Poorly maintained lab equipment drives up replacement-parts costs, unplanned repairs, and downtime, while preventive maintenance supports accuracy, precision, and longer equipment life.
The math backs this up. The U.S. Department of Energy's operations and maintenance guide found that preventive maintenance can save 12% to 18% compared to reactive maintenance across industrial equipment categories.
For AFM specifically, that means:
- Cantilevers and calibration standards cost far less than a scanner or photodetector replacement.
- Reactive repairs often come with secondary damage from continued use of a struggling system.
- Downtime during a critical experiment carries costs that never show up on an invoice.

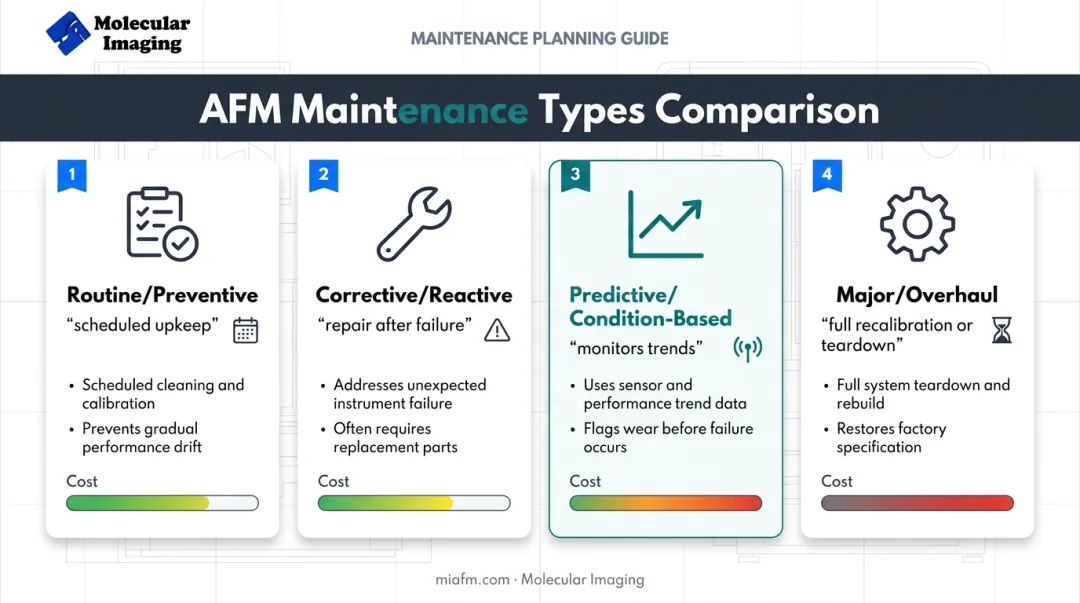

Types of Maintenance for AFM
AFM upkeep isn't one-size-fits-all. What your instrument needs depends on usage intensity, sample types, and how much risk you're willing to tolerate. Four approaches cover most labs.
Routine / Preventive Maintenance
This is scheduled, predictable upkeep performed regardless of whether anything seems wrong yet.
Typical tasks include:
- Optics cleaning and laser alignment checks before each session
- Cantilever and tip inspection prior to engaging the sample
- Wiping down the sample stage
- Checking vibration isolation components
- Verifying software calibration settings
Routine maintenance alone is usually sufficient for labs with moderate, consistent usage and stable environmental conditions. Costs stay low because they center on consumables—cantilevers, tips, and calibration samples.
When restocking, Molecular Imaging's web store carries mode-specific cantilevers (contact, tapping, liquid, MFM, EFM/KFM) plus 500nm grating and gold-on-mica standards for verification checks.
Corrective / Reactive Maintenance
This is repair after something has already gone wrong: a broken cantilever, a sudden image artifact, or a controller error that stops a scan mid-session.
The risk with relying too heavily on reactive maintenance is that problems compound. A struggling scanner or contaminated tip that keeps getting used can cause secondary damage to electronics or other components. Reactive repairs, particularly scanner or photodetector replacement, typically cost significantly more than the preventive alternative would have.
Predictive / Condition-Based Maintenance
Rather than fixing things after failure, this approach monitors performance indicators over time to anticipate problems before they interrupt work.
Useful metrics to track include:
- Noise floor trends across sessions
- Drift rate on known reference samples
- Resonance frequency shifts (an early sign of tip wear)
- Environmental conditions like temperature and humidity
This approach requires more discipline and, often, monitoring tools or logging software. But it reduces surprise breakdowns and the higher costs that come with them.
Major / Overhaul Maintenance
Deep servicing covers full system recalibration, scanner or electronics replacement, or complete teardown and cleaning. This level of work typically becomes necessary after years of heavy use, after relocating an instrument, or when performance has degraded well beyond what routine adjustments can fix.
Major overhauls are costly and technically demanding. For aging Agilent-era systems specifically, dedicated providers matter. Molecular Imaging's ZoomAFM service specializes in evaluating and restoring legacy Agilent 5500 PicoPlus and 4500 PicoSTM platforms, using replacement parts matched to the platform and hands-on familiarity with these discontinued systems.
How to Check If AFM Needs Maintenance
Catching warning signs early prevents small issues from becoming expensive ones. Here's what to watch for.
Performance or Output Changes
- Reduced image resolution or a rising background noise floor
- Inconsistent height or measurement results on a sample you've imaged before
- Difficulty achieving stable tip-sample engagement, or scans that won't complete
Unusual Behavior or Operation
- Abnormal vibration or noise from the isolation system, pump, or scanner assembly
- Erratic scanner movement or feedback loop instability
- Controller or software freezing, or unexplained error codes appearing mid-scan
Image artifacts often map to a specific cause:
- High-frequency noise → feedback gain set too high (loop oscillation)
- Blurring or poor tracking → scan speed too high or gains too low
- Horizontal banding → external mechanical vibration (footsteps, elevators, nearby equipment)
Visible Wear, Errors, or Irregularities
- Physical wear or contamination visible on cantilever tips or optics
- Recurring calibration warnings from the control software
- Signs of thermal drift, piezo creep, or misalignment showing up in captured images
Repeated or oddly shaped features in your scans are a near-certain sign of a contaminated, blunt, or multi-point tip, not a genuine sample characteristic.
Recurring Issues and Increased Maintenance Demands
- Cantilever replacements or recalibrations more often than your historical pattern
- Unplanned downtime interrupting research schedules with growing frequency
- Manual realignment or temporary fixes that no longer hold between sessions
If two or more of these patterns show up at once, reassess whether your maintenance schedule still matches how heavily the instrument is used.
AFM Maintenance Schedule (General Guidelines)
There's no universal schedule that fits every lab. Frequency depends on how often the instrument runs, what samples you're imaging, and whether you're operating in a cleanroom or a standard shared lab space. That said, most maintenance tasks fall naturally into four tiers.
| Frequency | Tasks |
|---|---|
| Daily / Per-use | Cantilever/tip inspection, laser alignment check, sample stage cleaning |
| Weekly / Periodic | Vibration isolation check, software calibration verification, optics cleaning |
| Monthly / Quarterly | Performance benchmarking against reference samples, environmental control system checks |
| Annual / Long-term | Full recalibration, scanner inspection, professional servicing or overhaul |
Adjust this schedule to your lab:
- Low-usage academic labs running occasional experiments can often extend weekly and monthly intervals without issue.
- High-throughput core facilities with continuous multi-user operation need tighter checks, since wear accumulates faster and more people depend on consistent output.
- Manufacturer benchmarks such as Bruker's public service matrix commonly recommend annual maintenance visits alongside annual software updates.
For instrument-specific guidance, start with Molecular Imaging's technical documentation library. Scanner calibration guides and system user manuals help you tailor this schedule to a 5500 PicoPlus, 4500 PicoSTM, or Benchtop 5400.
Conclusion
AFM maintenance protects the resolution, accuracy, and reproducibility your research depends on. Match the plan to how heavily your lab uses the instrument, balancing cost, reliability, and uptime.
A structured maintenance schedule, quality parts, and knowledgeable service keep your AFM delivering reliable results for years rather than months.
Frequently Asked Questions
Who manages AFM maintenance in a shared facility?
In shared instrumentation core facilities, facility management oversees scheduling and tracks usage across multiple users. It also coordinates routine upkeep and arranges professional servicing so AFM/STM systems stay reliable for everyone who depends on them.
How often should AFM cantilevers or tips be replaced?
Replacement frequency depends on sample type and scan mode, but visible wear, contamination, or a noticeable decline in image quality are the clearest signals it's time for a new cantilever.
Can I calibrate my AFM myself, or does it need professional service?
Routine calibration checks can often be handled in-house using standards like a 500nm grating or gold-on-mica substrate. Persistent drift or major recalibration issues typically call for professional support.
What causes image drift in AFM scans and how can it be minimized?
Thermal fluctuations, piezo creep, and vibration are the usual culprits. Environmental control, proper equilibration time, and vibration isolation all help minimize drift.
Is vibration isolation necessary for all AFM setups?
Vibration isolation matters most for high-resolution imaging in busy lab environments. Requirements vary depending on your building's conditions and the resolution your application demands.
How much does AFM maintenance typically cost per year?
Annual costs depend on usage intensity and system age. Budget for consumables such as cantilevers and calibration samples from Molecular Imaging's web store, and plan for service through providers like ZoomAFM when repairs are needed.
