That's the gap conductive atomic force microscopy (C-AFM) fills. It maps topography and local current in the same scan, pixel by pixel, giving researchers a direct view of where conductivity actually happens on a sample surface. This guide covers what C-AFM is, how the instrumentation works, where it's applied across semiconductors and energy materials, the practical probe challenges researchers run into, and what to look for in a system.
Key Takeaways
- C-AFM maps topography and local current together with a conductive tip in contact mode.
- Unlike STM, topography and current use separate channels—and it works on conductors and insulators.
- Core uses include dopant profiling, dielectric breakdown, RRAM filaments, 2D materials, and catalyst layers.
- Probe wear from high current density is the main practical bottleneck day to day.
- A modular AFM platform with real C-AFM support and service matters more than raw specs.
What Is Conductive AFM (C-AFM)?
C-AFM is an electrical operating mode of atomic force microscopy that uses a conductive probe to measure current flowing between the tip and sample while simultaneously recording surface topography. A bias voltage is applied between tip and sample, and a low-noise preamplifier captures the resulting current as the tip scans across the surface point by point.
You'll also see this technique called current-sensing AFM (CS-AFM), local-conductivity AFM (LC-AFM), or conductive probe AFM (CP-AFM). All three names refer to the same core method.
The technique traces back to 1993, when M.P. Murrell and colleagues at Cambridge, including Sean O'Shea, modified an AFM to measure current across SiO2 gate oxides. They mapped a 12 nm oxide layer with resolution better than 20 nanometers and found local threshold voltage varying by more than 2.7x within a 0.14 µm² area. That paper effectively launched a whole subfield of nanoscale electrical metrology.
C-AFM sits within a broader family of "electrical AFM modes" that includes Kelvin Probe Force Microscopy (KPFM), Scanning Capacitance Microscopy (SCM), and Piezoresponse Force Microscopy (PFM). What sets C-AFM apart is that it measures DC current directly, not surface potential, capacitance, or piezoelectric deformation.
Conductive AFM vs. Scanning Tunneling Microscopy (STM)
STM was C-AFM's conceptual predecessor, but the two work quite differently.
In STM, topography is inferred entirely from tunneling current. A feedback loop moves the tip vertically to hold current constant, and that vertical position becomes your height map. The problem: if current changes, you can't always tell whether that's from a height change or a conductivity change at that spot. That ambiguity is baked into the technique.

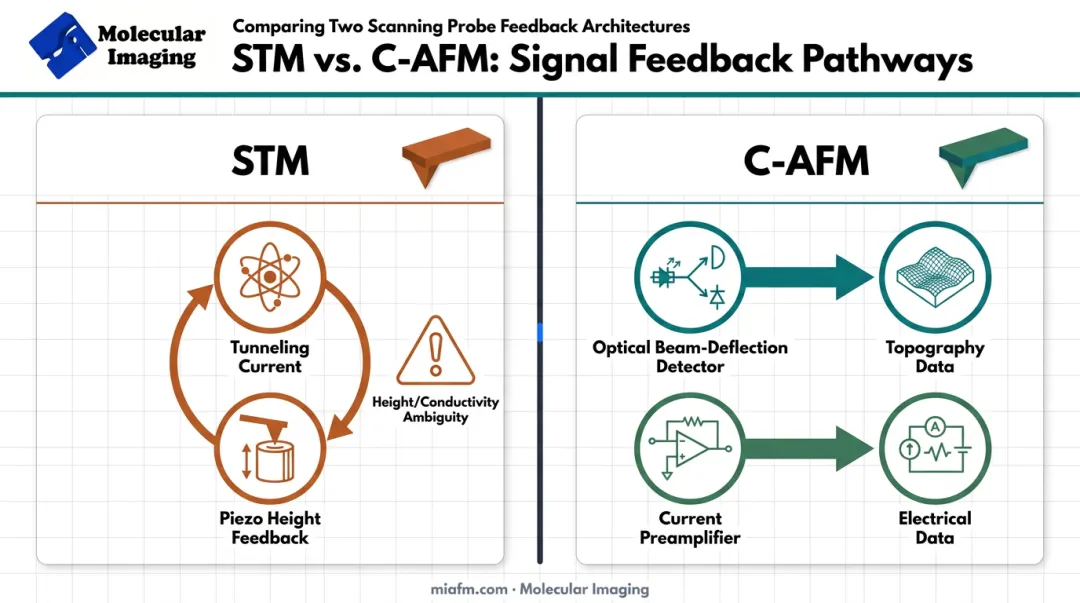

C-AFM solves this by using two independent measurement systems:
- Optical beam-deflection detection for topography (cantilever bending, unrelated to current)
- A separate current preamplifier for electrical signal
Because these channels are decoupled, researchers get cleaner data with no cross-contamination between height and conductivity signals. C-AFM also uses a conductive cantilever probe rather than a bare metallic wire, which means it works reliably on insulating and semiconducting surfaces too — not just conductors like STM requires.
How Does C-AFM Work? (Instrumentation & Principle)
Converting a standard AFM into a C-AFM system requires three components:
- A conductive probe tip — coated or fully conductive cantilever
- A bias voltage source — applies a controlled potential between tip and sample
- A current-to-voltage preamplifier — converts tiny currents into a measurable signal
The tip operates in contact mode, staying in constant physical contact with the sample at a user-defined force setpoint. A feedback loop adjusts the z-piezo to keep cantilever deflection constant, tracing the surface contour while recording current at every pixel.
Effective Emission Area vs. Physical Contact
One subtlety trips up a lot of newcomers: the effective emission area (Aeff) isn't always the same as the physical tip-sample contact area. On a flat insulator, they're roughly equal.
On a conductive film sitting on an insulating substrate, Aeff can expand to cover the entire connected electrode. Your "local" measurement might pick up signal from a much larger conductive network than the tip is physically touching.
Preamplifier Gain and Sensitivity
The preamplifier provides transimpedance gain, converting currents from picoamps to microamps into readable voltage output. Feedback resistor selection creates a direct trade-off between noise floor and bandwidth: higher gain settings resolve smaller currents but respond more slowly to changes.
Some lab-grade amplifiers achieve gains up to 10^13 V/A with noise floors around 3 femtoamps, though these figures vary by manufacturer and configuration.
Point-and-Hold I-V Spectroscopy
Beyond full-surface current maps, C-AFM supports point-and-hold I-V spectroscopy. The tip parks at a fixed location while bias voltage ramps to generate a current-voltage curve, useful for studying local switching behavior or breakdown thresholds.
Environmental Sensitivity
Humidity has an outsized effect on measurement repeatability. A 2024 study in Advanced Materials tested relative humidity from 4% to 54% RH on SiO2, h-BN, MoS2, and Ru samples.
On insulators and thin semiconductors, a water meniscus formed around the tip and enlarged the effective contact area enough to boost measured current by 100 to 1,000 times compared to dry conditions. Metallic Ru showed no humidity dependence at all; the effect is specific to insulating and semiconducting surfaces.
Controlled environments are essential for reproducible C-AFM data.
Key Applications of C-AFM
C-AFM has become a standard nanoscale electrical characterization tool across multiple research fields, with well over a thousand peer-reviewed papers referencing the technique since its introduction. Three areas see the heaviest use.

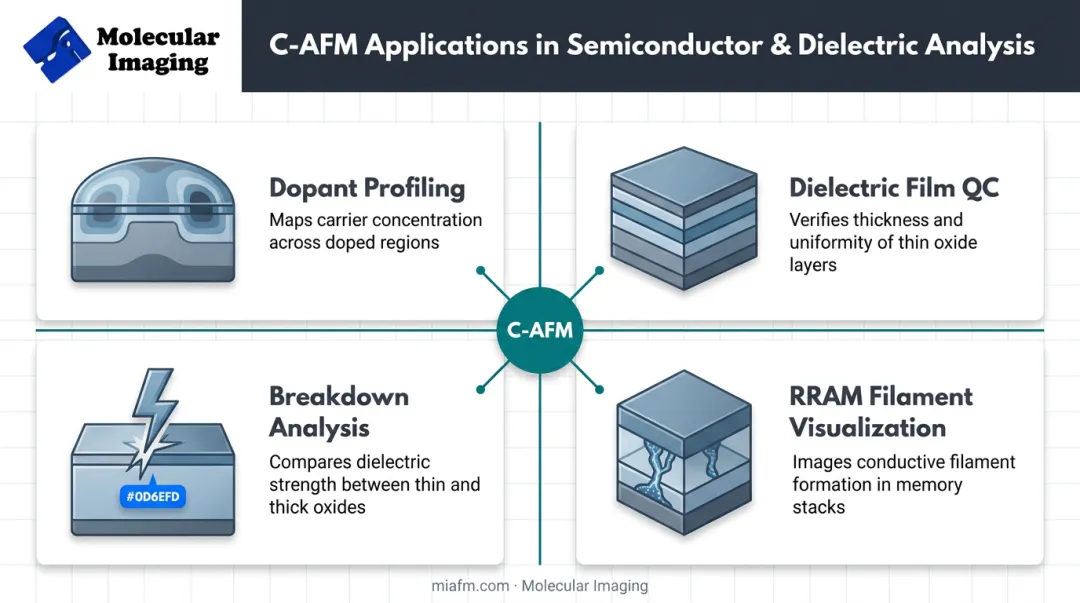

Semiconductor & Dielectric Characterization
This is where C-AFM got its start, and it remains one of the most common uses:
- Dopant profiling — mapping local variations in carrier concentration across a semiconductor surface
- Dielectric film quality control — identifying weak spots in oxide layers before they cause device failure
- Breakdown analysis — 3.4 nm and 5 nm SiO2 films under repetitive voltage stress showed breakdown spots spreading in the thinner film, while the thicker film resisted the same damage
- RRAM filament visualization — C-AFM has directly imaged conductive filament formation in HfO2-based resistive switching stacks, tracking filament size and distribution across full switching cycles
Nanoelectronics & Advanced Materials
For researchers working on molecular electronics and 2D materials, C-AFM offers direct charge-transport mapping that bulk measurements simply can't provide:
- Graphene and hexagonal boron nitride — current maps of twisted bilayer graphene on h-BN reveal different conductivity patterns depending on stacking order and moiré superlattice structure
- Carbon nanotubes — I-V spectroscopy on individual vertically aligned CNTs shows current localized precisely at nanotube sites, with clean drop-off on surrounding oxide
- Molecular junctions — charge transport studies at the single-molecule scale for molecular electronics research
That dual readout is especially useful for molecular electronics and materials science groups studying charge transport at the nanoscale. Simultaneous topographic and electrical data is often essential for interpreting those results correctly.
Energy, Catalysis & Emerging Fields
Fuel-cell catalyst layers show C-AFM's value outside traditional semiconductor work. Cathode layers embed platinum nanoparticles in a carbon matrix, and electron transport depends on tunneling between neighboring Pt particles.
C-AFM current and topography maps have tracked how irradiation-driven carbon loss and matrix compaction change conductivity:
- Shorter distances between Pt particles correlate with higher local conductivity
- Matrix shifts toward graphite-like carbon also raise conductivity
- Pixel-level maps link these structural changes to degradation in battery and energy materials research
C-AFM Probes & Practical Challenges
Conductive probes wear out considerably faster than standard topography-only probes. The culprit: high current densities combined with increased friction at the tip-sample nanojunction during contact-mode scanning.
A 2023 study in ACS Applied Materials & Interfaces put this to the test. Standard Pt/Pt-Ir coated silicon probes (roughly 20nm coating thickness) can degrade under current densities above 10² A/cm² combined with mechanical friction — in a 100-ramp comparison, a Pt/Ir-coated probe lost most of its conductivity during the very first ramp. A solid platinum probe, by contrast, retained stable I-V behavior throughout, though its topography imaging got slightly fuzzier as the tip apex wore.

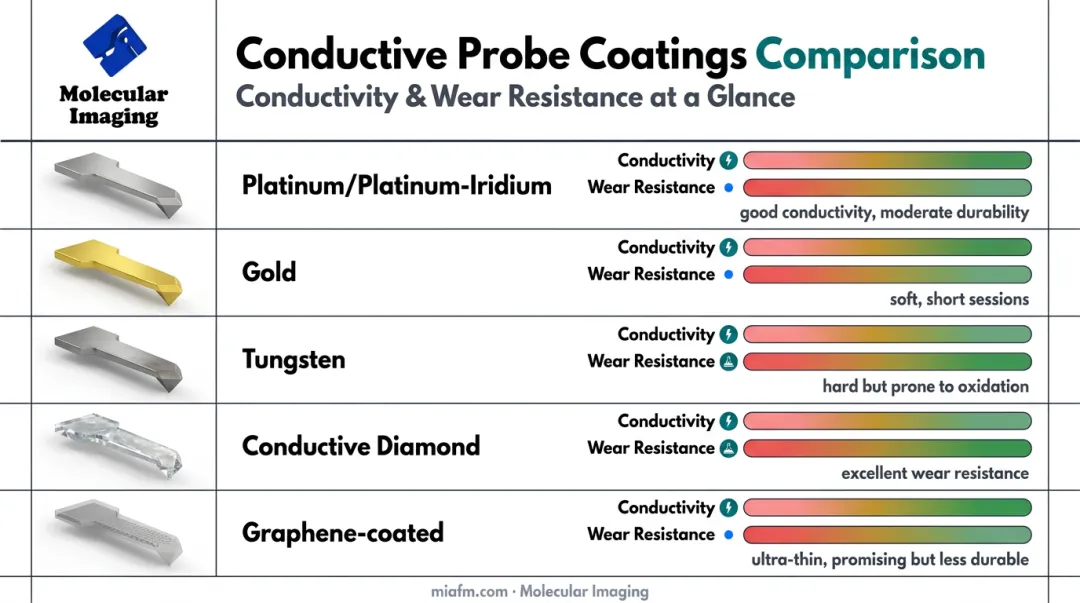

Common conductive coatings and their trade-offs:
- Platinum/platinum-iridium — good conductivity, moderate durability, widely available
- Gold — soft, wears quickly; best for short sessions
- Tungsten — harder than Pt, but can oxidize over time
- Conductive diamond — excellent wear resistance; suited to high-current or repetitive work
- Graphene-coated tips — boost conductivity and wear resistance on polymeric cantilevers with little added mass
The rule of thumb: coat thick enough to survive current density and friction, but not so thick that the tip apex dulls and resolution drops. Every probe choice is a durability-versus-sharpness trade-off.
Soft and biological samples raise a separate problem. Standard contact-mode C-AFM forces can crush delicate polymers or biomolecules. Low-force methods, including intermittent contact that only briefly touches the surface, let researchers collect electrical data without destroying the sample.
C-AFM Compared to Other Electrical AFM Modes
C-AFM is one of several electrical SPM techniques. The right choice depends on the property you need to measure.
| Mode | What It Measures | Typical Use Case |
|---|---|---|
| C-AFM | Local current/conductivity under applied bias | Dopant mapping, dielectric breakdown, filament imaging |
| KPFM | Surface potential / contact potential difference | Work function mapping, charge distribution |
| SCM | Capacitance changes (dopant concentration) | Semiconductor carrier profiling |
| PFM | Piezoelectric/electromechanical response | Ferroelectric domain imaging |
Choose the mode that matches your measurement goal:
- C-AFM when you need to see where current physically flows
- KPFM for surface potential without forcing current through the sample
- SCM when dopant concentration via capacitance is the target
- PFM for piezoelectric or electromechanical response
Most labs would rather not buy four instruments for four modes. Modular platforms that swap modules or nose cones on one base system keep budget and bench space in check, and let you run C-AFM alongside other electrical modes when the experiment demands it.
Choosing the Right AFM System for C-AFM Research
When evaluating a platform for C-AFM work, a few things matter more than others:
- Low-noise current preamplifier: bandwidth and gain set the smallest current you can resolve reliably
- Contact-mode stability: low drift over long scans keeps current maps from corrupting
- Multiple conductive probe types: swap Pt, diamond, or graphene-coated tips to match the sample

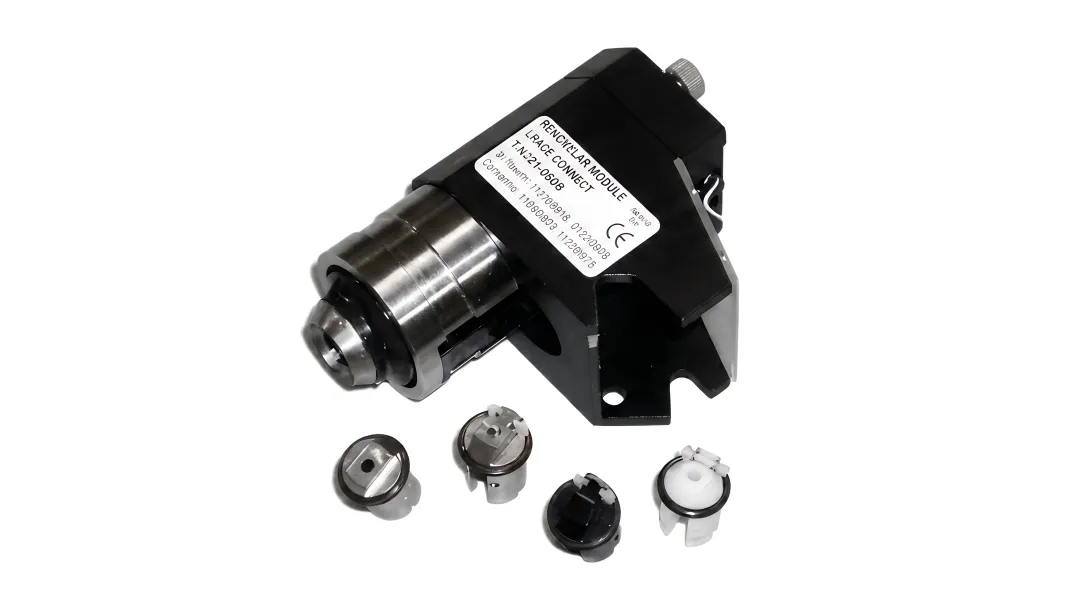

- Environmental control: humidity shifts effective contact area (Aeff), so isolation or humidity control improves repeatability Molecular Imaging's PicoPlus 5500 Series was built around this kind of modularity. It supports CSAFM (Current-Sensing AFM) as one of several interchangeable nose-cone modes, alongside standard AFM, STM, KPFM, EFM, and MFM. Researchers are not locked into a single electrical mode per instrument. The system supports conductive AFM (C-AFM) for simultaneous topography and local current mapping. The same C-AFM capability is available as a custom configuration on the 5100 and 5420 Series platforms. For labs where drift or environmental variability is a concern, temperature-controlled stages (rated -30°C to 250°C) and environmental isolation chambers help control humidity and atmosphere. That directly limits the repeatability problems ambient moisture introduces into current measurements. Labs with aging AFM or STM instruments that need calibration, conductive probe replacement, or repair can use ZoomAFM for diagnostics, preventive maintenance, and remote support so C-AFM work stays on schedule.
Frequently Asked Questions
What is conductive AFM?
Conductive AFM (C-AFM) is an atomic force microscopy mode that uses a conductive probe to simultaneously map surface topography and local electrical current at the nanoscale. It reveals exactly where conductivity varies across a sample surface, pixel by pixel.
What is electrical AFM?
"Electrical AFM" refers to a family of AFM modes (including C-AFM, KPFM, SCM, and PFM) that each measure a different electrical property: current, surface potential, capacitance, or piezoelectric response, respectively.
How is AFM used in semiconductors?
In semiconductor research, AFM (particularly C-AFM) is used for dopant profiling, dielectric film quality control, and identifying defects that cause premature reliability failures, all at nanometer-scale resolution.
What is the difference between C-AFM and STM?
C-AFM uses independent optical detection for topography and a separate preamplifier for current, working on both conductors and insulators. STM derives topography solely from tunneling current and requires a conductive sample.
What probe materials are used in C-AFM?
Common conductive coatings include platinum, gold, tungsten, conductive diamond, and graphene. Coating choice trades off durability against tip sharpness: diamond and graphene tend to last longer, while thinner metal coatings preserve resolution but wear faster.
Can C-AFM be used on soft or biological samples?
Yes, though standard contact-mode forces can damage delicate materials. Low-force, intermittent-contact approaches let researchers characterize soft polymers and biological samples while minimizing tip-induced damage.
