Many labs still lean on endpoint assays and fixed slides. That works fine until you need to see how something happens, not just confirm that it happened. Migration, mitosis, vesicle trafficking, and signaling cascades unfold over seconds to hours, invisible to a single snapshot.
Live cell imaging closes that gap by capturing cellular behavior as it actually occurs, in conditions close to a living organism. This article covers what live cell imaging is, how it differs from fixed-cell work, the main techniques and hardware involved, common pitfalls, and how atomic force microscopy extends the picture down to the nanoscale.
Key Takeaways
- Live imaging tracks real cellular behavior — migration, division, signaling — without fixation artifacts
- Fixation mislocalizes proteins and distorts organelle structure, skewing quantitative measurements
- FRAP, FRET, and FLIM reveal molecular dynamics that fixed imaging cannot capture
- Environmental control (temperature, CO2, humidity) is non-negotiable for viable long-term imaging
- AFM adds label-free, nanometer-scale detail that complements optical live-cell methods
What Is Live Cell Imaging?
Live cell imaging uses time-lapse microscopy to observe living cells or organisms as they function, rather than at a single fixed point. Researchers capture sequential images over minutes, hours, or days, then assemble them into a continuous record of cellular behavior.
The concept isn't new. In 1907, Julius Ries condensed 14 hours of sea-urchin fertilization and development into a two-minute film, one of the earliest documented examples of true time-lapse microcinematography. Jean Comandon built on this the same year, using sequential frames to track spirochetes and blood cells in motion.

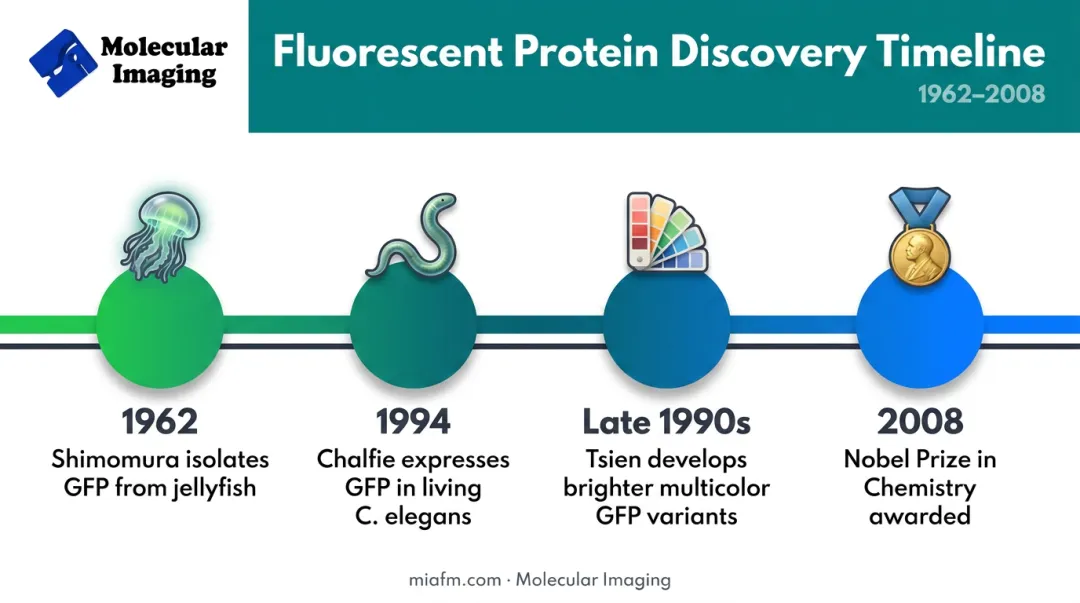

The real leap came with molecular specificity. Key milestones include:
- 1962 — Osamu Shimomura isolated green fluorescent protein (GFP) from Aequorea victoria
- 1994 — Martin Chalfie's lab expressed GFP in bacteria and tracked protein location in living C. elegans
- Late 1990s — Roger Tsien developed brighter, multicolor GFP variants
- 2008 — Shimomura, Chalfie, and Tsien shared the Nobel Prize in Chemistry
Genetically encoded fluorescent tags let researchers watch specific proteins move, interact, and degrade inside a living cell without killing it first. That capability still defines modern live cell imaging.
Live-Cell vs. Fixed-Cell Microscopy: Key Differences
Fixation chemically locks a cell in place, usually with paraformaldehyde or methanol, so it can be stained and examined without further change. The tradeoff: fixation kills the cell, and it can distort exactly what you're trying to measure.
In a study on plant chromatin proteins, EGFP-tagged AtHMGB1 associated with metaphase chromosomes in living tobacco cells. After one hour in 4% paraformaldehyde, that chromosome association disappeared entirely—a false map of where the protein actually sits.
Similar artifacts show up across sample types:
- Dehydration can collapse mitochondria into clumped aggregates
- Some fixatives drive membrane receptors to cluster on the cell surface
- Protein localization after fixation may not match the living cell
None of this makes fixed imaging unreliable. It means fixed snapshots need to be read as one instant, not the whole story. Live imaging records the full reel: natural movement, real-time signaling, and structural change as it happens, in conditions close to physiological.
Quick Comparison
| Factor | Fixed-Cell Microscopy | Live-Cell Microscopy |
|---|---|---|
| Sample state | Dead, chemically preserved | Alive, metabolically active |
| Data captured | Single static snapshot | Continuous, dynamic time-series |
| Artifact risk | Protein mislocalization, organelle distortion | Minimal, if environment is controlled well |
| Best for | High-resolution structure, antibody staining | Migration, division, trafficking, signaling kinetics |
| Environmental demands | None after fixation | Constant temperature, CO2, humidity control |
Live imaging simply asks more of the researcher. Cells have to stay alive and behave normally for the entire observation window, which turns the microscope setup into a life-support system, not just an optical instrument.
Key Benefits of Live Cell Imaging
Skipping fixation isn't just a matter of convenience. It changes what you can actually learn from an experiment.
No fixation artifacts. Cell morphology, organelle structure, and protein localization stay true to the living state, with no chemical distortion to correct before analysis.
Dynamic processes become visible. Cell migration, mitosis, vesicle trafficking, and cytoskeletal remodeling happen over minutes to hours. Fixed snapshots miss that motion; live imaging records it frame by frame.

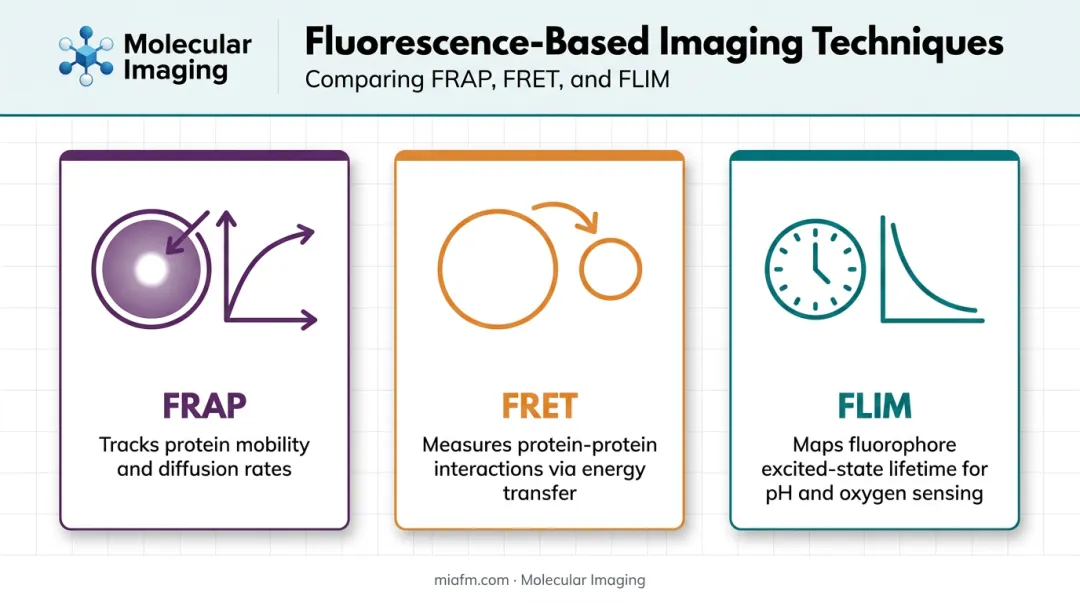

Molecular detail in real time. Specialized fluorescence techniques push this further:
- FRAP (Fluorescence Recovery After Photobleaching) tracks how quickly bleached fluorescent molecules are replaced, revealing protein mobility and diffusion rates.
- FRET (Förster Resonance Energy Transfer) works as a molecular ruler, detecting protein-protein interactions at very short distances.
- FLIM (Fluorescence Lifetime Imaging Microscopy) maps how long a fluorophore stays excited, useful for measuring local pH, oxygen levels, and confirming FRET results.
More data per experiment. A single time-lapse sequence can reveal kinetics, spatial distribution, and multiple parameters at once. A fixed sample gives you one readout; a live time-lapse gives you a curve.
Adoption is rising with those gains. According to a 2024 BCC Research market analysis, the global live-cell imaging market was valued at $2.6 billion in 2023 and is projected to reach $4.3 billion by 2029 (8.4% CAGR), as labs treat real-time observation as standard workflow rather than a specialty technique.
Live Cell Imaging Techniques and Microscopes Used
No single technique answers every biological question. The right choice depends on whether you need structural context, molecular specificity, or quantitative interaction data.
Label-Free Techniques
Phase contrast and differential interference contrast (DIC) microscopy visualize unstained, living cells by converting differences in refractive index into visible contrast. Neither requires dyes or genetic labeling, which means:
- No phototoxicity risk from excitation light
- No time spent engineering fluorescent constructs
- Fast setup for routine morphology checks
Phase contrast produces a characteristic halo around cell edges, useful for spotting general shape and movement. DIC creates a pseudo-3D, shadowed relief that highlights edges and gradients, though that relief reflects optical path differences, not literal topography.
Fluorescence-Based Techniques
Fluorescence imaging uses genetically encoded fluorescent proteins or synthetic dyes to tag specific structures, proteins, or molecules. This is how researchers watch a single protein traffic through the cell, a receptor cluster form at the membrane, or a signaling cascade fire in sequence.
Three setups dominate:
| Setup | Strength | Best suited for |
|---|---|---|
| Widefield | Fast, photon-efficient, simple | Thin samples, rapid time-lapse |
| Confocal | Optical sectioning, rejects out-of-focus light | Thick samples, 3D structures |
| TIRF | Excitation restricted to under 100 nm from the surface | Membrane events, focal adhesions, vesicle trafficking |
Each trades speed and photon efficiency against optical clarity, so the right choice depends on how deep into the cell you actually need to see.
Advanced Quantitative Methods
FRAP, FRET, and ratiometric ion imaging move beyond visualization into measurement:
- FRAP quantifies protein mobility by tracking recovery after photobleaching
- FRET reports molecular proximity and binding via energy transfer between fluorophores
- Ratiometric ion imaging tracks calcium or pH fluxes across two wavelengths
Nearly all of these setups share the same physical foundation: an inverted microscope paired with a stage-top incubator, keeping cells at physiological temperature and gas levels while the objective sits beneath the sample dish.
Essential Requirements for a Successful Live Cell Imaging Experiment
Cells don't tolerate neglect. A live imaging setup has to keep them alive and behaving normally for the full duration of the experiment — sometimes hours, sometimes days.
Environmental control comes first. Mammalian cell work typically holds three setpoints steady:
- 37°C for physiological temperature
- 5% CO₂ to stabilize bicarbonate-buffered medium pH
- Roughly 90–95% relative humidity to limit evaporation
A stage-top incubation system handles all three at once, though exact settings shift with cell type and culture medium.
Sample chambers are easy to underestimate. Imaging dishes need optical clarity for the microscope and a sterile, cell-friendly surface for growth. Get either wrong and you introduce focus drift or contamination risk mid-experiment.
Detector sensitivity protects the sample. EMCCD cameras use electron multiplication to amplify weak signals before readout, pushing effective read noise down to sub-electron levels. That sensitivity matters because:
- Lower excitation light means less phototoxicity
- Cells stay healthier over long acquisitions
- Faint fluorescent signals remain detectable without cranking up laser power
The tradeoff is a narrower dynamic range at very high gain settings, so EMCCD use is a balance, not a default setting for every experiment.
Common Challenges in Live Cell Imaging
Live cells are unforgiving. Push the light too hard, lose focus for too long, or pick the wrong labeling method, and the data quietly stops representing real biology.
Phototoxicity and Photobleaching

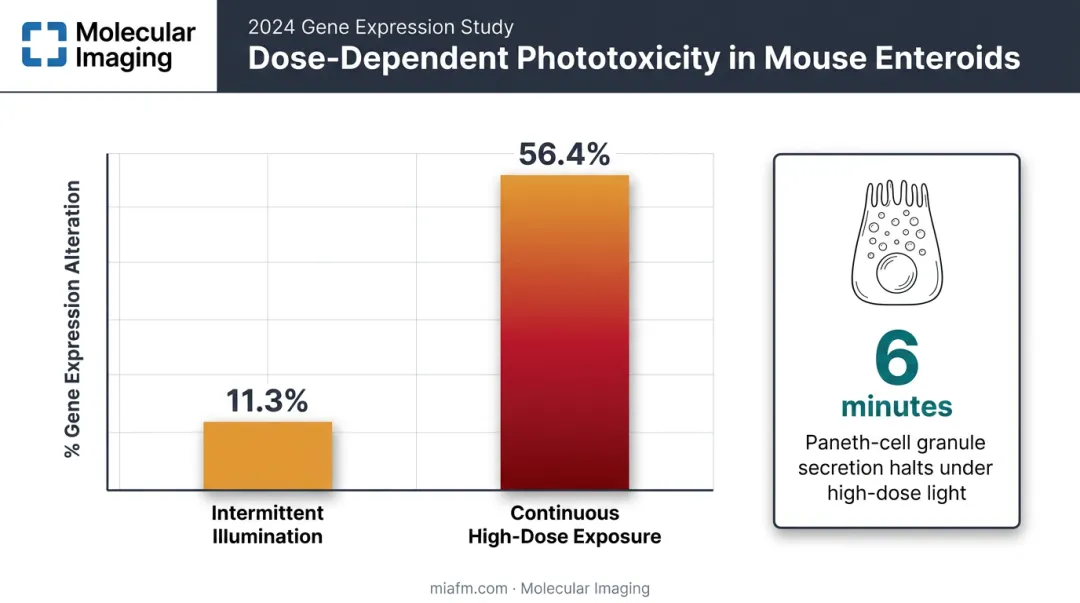

Fluorescence excitation light does more than bleach fluorophores. It can injure the cell itself. A 2024 study on mouse intestinal enteroids found clear dose-dependent damage:
- Intermittent illumination altered 11.3% of measured gene expression
- Continuous high-dose exposure altered 56.4% of expression
- Paneth-cell granule secretion halted within six minutes under high-dose light
Separate work on CHO cells found mitotic events dropped sharply at higher UV doses, with visible delays starting at surprisingly low exposure levels.
Photobleaching used to serve as a rough proxy for phototoxicity. That's no longer reliable, since some photostable fluorescent proteins barely bleach while still stressing the cell.
Focus Drift
Multi-hour time-lapse sessions drift out of focus as temperature fluctuations and mechanical settling shift the focal plane. Continuous autofocus systems using piezoelectric actuators correct this in real time, though hysteresis and creep can still show up during multi-day acquisitions.
Immunofluorescence Incompatibility
Traditional immunofluorescence requires fixation, typically 4% formaldehyde for 15 minutes or cold methanol, followed by permeabilization with detergents like Triton X-100. That workflow kills the cell by design, which makes it fundamentally incompatible with continued live observation.
Genetically encoded fluorescent tags take a different path. The cell produces its own fluorescent fusion protein, so no fixation or permeabilization is needed. That approach is built for living samples rather than adapted from a fixed-cell workflow.
Beyond Optical Microscopy: Nanoscale Live-Cell Imaging with AFM
Optical microscopy has a hard floor. Diffraction limits conventional light microscopy to roughly 250 nm laterally, no matter how good the optics get. Atomic Force Microscopy (AFM) sidesteps that limit entirely by using a physical probe instead of light.
AFM scans a cell or biomolecule's surface with a cantilever tip, mapping topography mechanically rather than optically. High-speed AFM has demonstrated sub-100-millisecond temporal resolution with 2-3 nm lateral resolution on unlabeled macromolecules under near-physiological conditions.
Whole-cell imaging runs slower, since living cells are larger and softer. Even so, studies have resolved filopodia, membrane ruffles, and endocytic pits on living cells in aqueous buffer at physiological temperatures.
No fluorescent tags required. That's the core advantage AFM brings to live-cell work: you see actual surface structure and mechanical behavior, not a fluorescence proxy for it.
BioAFM Built for Soft, Living Samples in Liquid

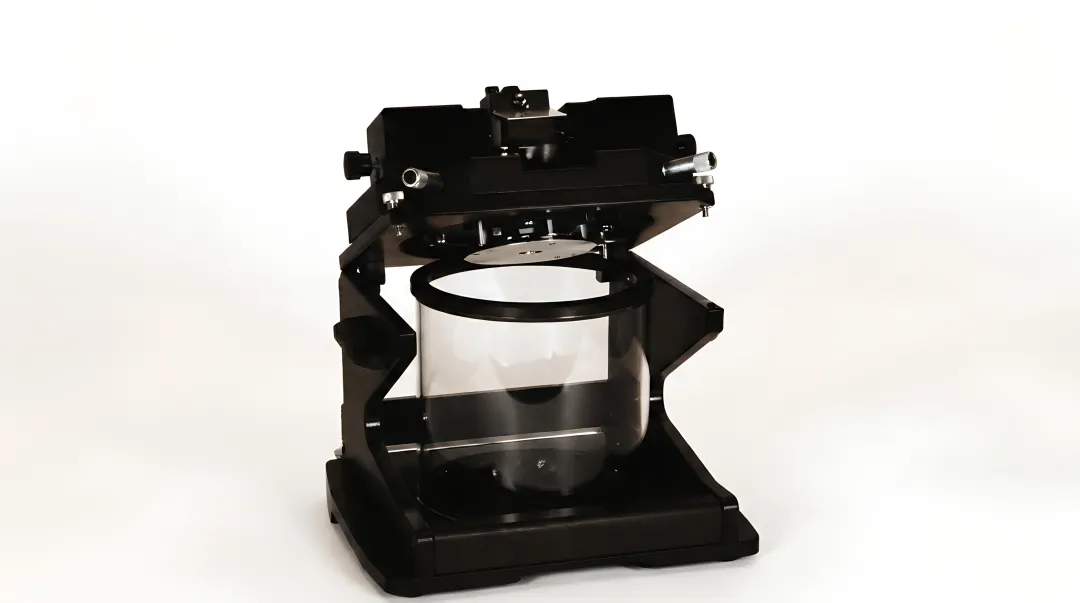

This is where Molecular Imaging's 5500 ILM PicoPlus BioAFM fits in. It's built specifically for biological samples in liquid, using MAC Mode — a magnetically driven cantilever oscillation designed to minimize lateral force on soft, living material. That matters because a standard tapping-mode cantilever can damage a cell membrane before you get a usable image.
The system pairs with:
- Temperature-controlled stages spanning -30°C to 250°C, covering the physiological range mammalian cell work requires
- Environmental isolation chambers for humidity, low-oxygen, and atmospheric control during extended sessions
- Liquid cell designs compatible with buffers, acids, bases, and organic solvents
- Tri-directional optical access (above, side, below), so AFM topography can be correlated directly with fluorescence or brightfield imaging on the same sample
Documented applications include protein S-layer assembly, DNA in buffer, liposome and lipid bilayer characterization, and live-cell mechanics research, at sub-angstrom lateral and 0.2 nm vertical resolution.
For labs already running optical live-cell setups, AFM isn't a replacement. It's a way to confirm what fluorescence suggests, at a resolution no lens can reach. Full details on liquid cell configurations are available through Molecular Imaging's parts and accessories catalog.
Frequently Asked Questions
What are the key differences between live-cell microscopy and fixed-cell microscopy?
Fixed-cell microscopy captures a single dead, static snapshot that can carry fixation artifacts like protein mislocalization. Live-cell microscopy observes dynamic processes in real time, under conditions that keep the sample alive throughout.
What can you observe with live-cell fluorescence microscopy?
You can track protein localization, intracellular trafficking, molecular interactions, and structural changes as they happen, using genetically encoded fluorescent proteins or synthetic dyes. This includes mitosis, vesicle transport, and signaling cascades.
Can immunofluorescence be performed on live cells?
Traditional immunofluorescence requires fixation and permeabilization, which kills the cell, so it cannot be used for live observation. Genetically encoded fluorescent tags offer a comparable labeling strategy that works in living samples.
What microscopes are used for live-cell microscopy?
Most setups use an inverted microscope with a stage-top incubator to maintain physiological conditions. The specific technique — phase contrast, DIC, confocal, widefield, or TIRF — depends on the research question and how deep into the cell you need to see. When nanoscale surface topography or mechanical properties matter, BioAFM platforms can image living cells in liquid under controlled conditions.
How long can live cells be imaged under a microscope?
Duration ranges from seconds for fast kinetic assays to several days for long-term time-lapse studies. It depends heavily on environmental control quality and how well phototoxicity is managed.
Which live cell imaging technique should a beginner start with?
Phase contrast or DIC microscopy are good starting points since they need no fluorescent labeling and carry minimal risk to cell health. Save fluorescence-based techniques for once you know exactly which structure or protein you need to track.
