Traditional biochemistry can't do this. Bulk assays mix billions of molecules together and report an average, which masks the rare folding intermediates, conformational outliers, and mechanical heterogeneity that often matter most in biology and materials science. Single-molecule force spectroscopy (SMFS) fixes that blind spot.
This article covers the core techniques behind SMFS, including atomic force microscopy (AFM), optical tweezers, and magnetic tweezers, how a typical experiment runs, where the technique has made its biggest scientific impact, and what to consider when choosing instrumentation.
Key Takeaways
- SMFS applies pN–nN forces to single molecules, revealing folding intermediates and rare events bulk assays miss
- AFM, optical tweezers, and magnetic tweezers cover different force ranges for distinct research questions
- Rupture force depends on loading rate—dynamic force spectroscopy is required for accurate interpretation
- Applications span protein folding, DNA/RNA mechanics, receptor-ligand bonds, and chromatin topology
- Calibration, cantilever selection, and environmental stability directly determine data quality
What Is Single-Molecule Force Spectroscopy?
Single-molecule force spectroscopy is a family of techniques that apply and measure forces on individual biomolecules—typically in the piconewton to nanonewton range—to probe their mechanical, kinetic, and energetic properties.
Instead of asking what the average molecule does, SMFS asks what this exact molecule does, right now, under a defined pulling force.
The setup is conceptually simple. One end of a molecule (a protein, a DNA strand, an RNA hairpin, or a receptor-ligand complex) is tethered to a surface. The other end attaches to a force probe. Researchers then apply a controlled displacement or force and record extension against force in real time.
Why "Spectroscopy" If There's No Light Involved?
The name confuses people, understandably. SMFS doesn't involve matter-radiation interaction the way optical spectroscopy does.
The term refers to the resulting data: force spectra—histograms of rupture forces, or dynamic force spectra that plot the most probable rupture force against loading rate. It's spectroscopy as a distribution of values, not a light spectrum.
Repeated pulling experiments generate three primary outputs:
- Force-extension curves — the raw signature of how a molecule stretches, unfolds, or ruptures
- Rupture/unfolding force histograms — statistical distributions built from hundreds or thousands of pulls
- Free-energy landscapes — reconstructed models of the energy barriers a molecule crosses during unfolding

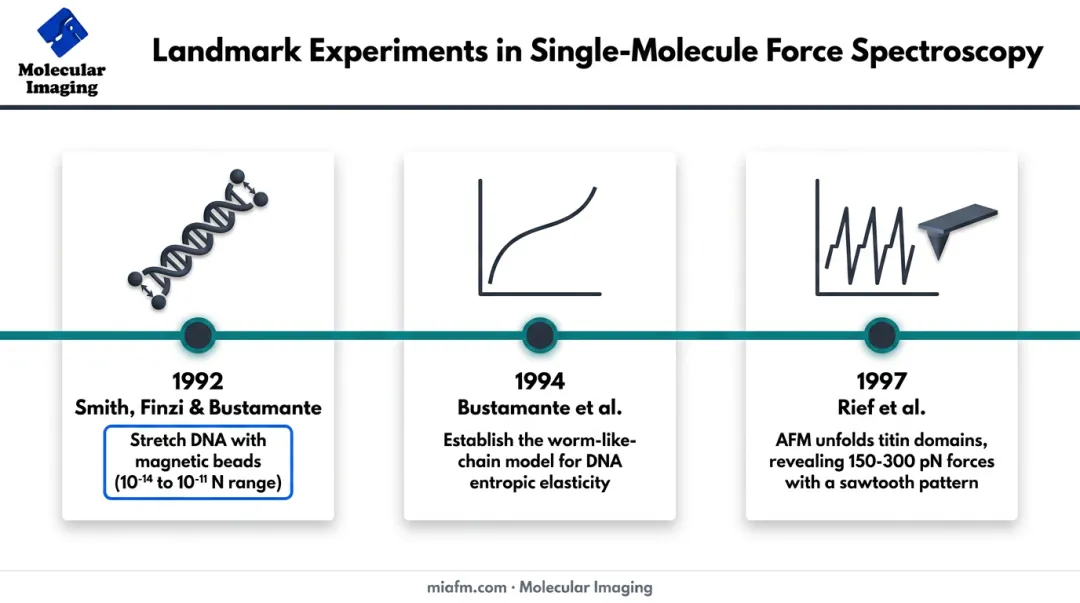

Historical Milestones That Built the Field
A few landmark experiments established SMFS as a rigorous discipline rather than a novelty.
| Year | Milestone | Key Result |
|---|---|---|
| 1992 | Smith, Finzi, and Bustamante stretch individual DNA with magnetic beads | Forces spanning roughly 10⁻¹⁴ to 10⁻¹¹ N |
| 1994 | Bustamante, Marko, Siggia, and Smith publish DNA entropic elasticity work | Worm-like-chain model for single DNA molecules |
| 1997 | Rief et al. use AFM to unfold titin immunoglobulin domains | 150–300 pN unfolding forces; 25–28 nm sawtooth pattern (Rief et al., Science 1997) |
That titin experiment is still cited constantly. It proved AFM could resolve individual domain unfolding events inside a single protein—something bulk denaturation assays cannot see.
Key Techniques Used in Single-Molecule Force Spectroscopy

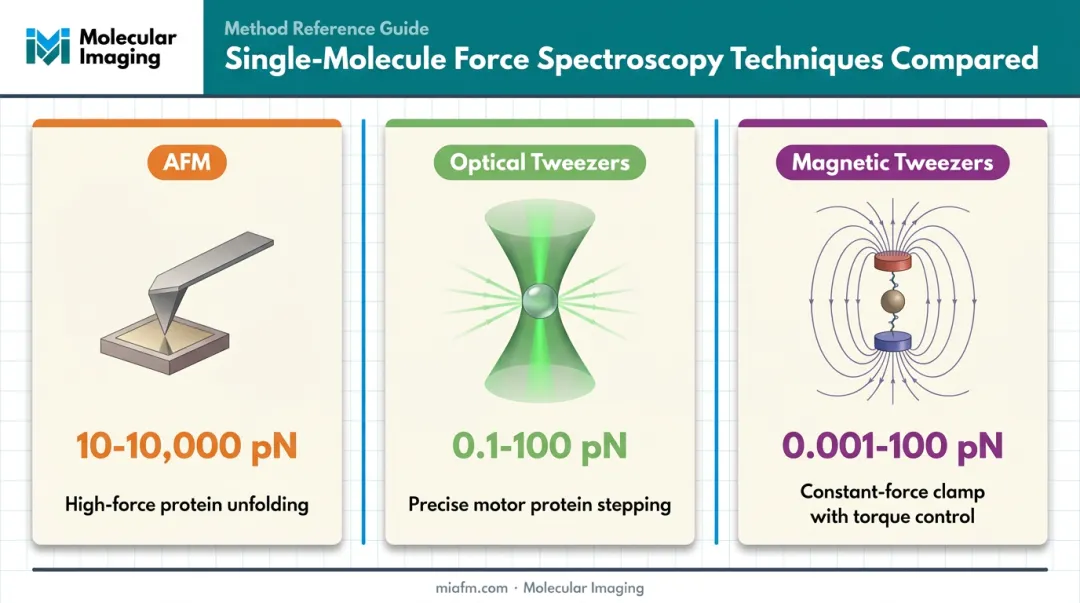

Three platforms dominate SMFS research today: AFM, optical tweezers, and magnetic tweezers. Each occupies a different corner of the force-resolution landscape, and picking the wrong one for your question wastes time and data.
A comparative review of the three techniques puts their working ranges at roughly:
- AFM: 10 to 10,000 pN
- Optical tweezers: 0.1 to 100 pN
- Magnetic tweezers: 0.001 to 100 pN
Atomic Force Microscopy (AFM)
An AFM cantilever with a nanoscale tip binds one end of a molecule. As the cantilever retracts, laser deflection measures the tiny bend, and Hooke's law (F = kΔ) converts that bend into force.
Researchers can detect forces from roughly 10 pN upward, well into the nanonewton range where covalent bonds and structural protein domains start to break.
AFM's signature strength is high-force, high-resolution pulling. The sawtooth pattern from titin unfolding is the classic example. It's also the most widely accessible single-molecule platform, since many research labs already own an AFM for imaging and can add force spectroscopy capability without buying an entirely new instrument.
For labs that run both structural imaging and pulling experiments on one platform, Molecular Imaging's modular AFM/STM systems (5500 Series and 5420 PicoAFM) use interchangeable nose cones to switch between imaging and force modes without replacing the instrument.
Optical Tweezers
Optical tweezers use a tightly focused laser beam to trap a dielectric microsphere attached to the molecule under study. Moving the trap, or the sample stage, stretches the molecule while the laser measures piconewton-scale forces with sub-nanometer displacement precision.
That force and displacement precision makes optical tweezers the tool of choice for tracking molecular motors:
- Kinesin stepping measured in 8 nm increments via optical trapping interferometry
- RNA polymerase advance in steps averaging roughly one base pair
Neither result would be visible with a coarser probe.
Magnetic Tweezers
Magnetic tweezers manipulate paramagnetic beads tethered to a molecule using an external magnetic field. Because the field gradient barely changes over nanometer-scale molecular motion, the applied force stays essentially constant automatically. This passive force clamp is unique among the three techniques.
Magnetic tweezers also apply controlled torque, simply by rotating the magnets, which makes them the natural choice for:
- Studying DNA supercoiling
- Measuring topoisomerase activity, including linking-number changes
- Running long-duration equilibrium studies where a stable, low force must hold for minutes or hours
- Tracking hundreds of tethered molecules in parallel using camera-based detection
How a Single-Molecule Force Spectroscopy Experiment Works
Every SMFS experiment, regardless of platform, follows a similar workflow.
- Surface functionalization: The substrate is chemically prepared so molecules attach at defined sites rather than sticking randomly.
- Tethering: One end of the molecule connects to the surface, the other to the probe—often via 6–10 nm PEG linkers that limit nonspecific tip interference.
- Approach-retract or constant-force cycling: The probe repeatedly engages and disengages the molecule, or holds it at a fixed force for extended tracking.
- Data collection: Force and extension are recorded continuously throughout each cycle.
The resulting force curve splits into a contact region (probe touching or bound to the molecule) and a non-contact region (free approach or retraction). Analysts identify rupture events in the contact region and note the force at which each occurs.
Here's the part that trips up newcomers: rupture force is not a fixed molecular constant. It depends on how fast force is applied.
A dynamic force spectrum plots the most probable rupture force against the logarithm of loading rate, following the Evans-Ritchie framework. Report loading rate alongside every rupture force value, or the number is nearly meaningless out of context.
Because bond rupture is inherently stochastic, no single pull tells the whole story. Reliable results require hundreds to thousands of repeated measurements to build statistically meaningful force histograms.
Key Applications of Single-Molecule Force Spectroscopy
SMFS findings feed directly into drug design, biomaterials engineering, and mechanobiology research—areas where the technique has delivered its most influential results.
Protein Folding and Unfolding
SMFS exposes unfolding pathways and transient intermediate states that bulk denaturation assays average out entirely. The titin work already mentioned, with its 150 to 300 pN domain unfolding forces, remains the reference point. Bacteriorhodopsin studies found lower forces, around 100 to 200 pN at typical pulling speeds, with distinct peaks corresponding to pairwise helix extraction.
Across structural proteins, that roughly 100 to 300 pN span shows real mechanical diversity—diversity an ensemble melting curve cannot reveal.
DNA, RNA, and Enzyme Mechanics
Optical tweezer experiments on DNA established persistence lengths around 47 nm in low-salt buffer, dropping to roughly 40 nm with multivalent cations present. Those values come from worm-like-chain fits of force-extension data across roughly 0.1 to 50 pN.
The same precision resolved RNA polymerase stepping at near-base-pair resolution. Flow-based magnetic tweezer assays have screened tens of thousands of DNA molecules in a single run to catch rare topoisomerase-induced breaks.
Receptor-Ligand and Adhesion Interactions
SMFS quantifies how strongly specific molecular pairs bind, and how that strength changes with loading rate. In one AFM study, streptavidin-biotin rupture force more than doubled as loading rate rose from 100 to 5,000 pN/s—proof that bond strength is a rate-dependent curve, not a single number. Parallel antibody-antigen work has shaped biosensor design and biomaterial engineering, where tunable binding strength matters.
Insights Into Chromatin Topology
This is where force spectroscopy answers a question imaging alone can't: how much force does it take to unwrap DNA from a nucleosome, or unfold a chromatin fiber?
Optical trap experiments on nucleosomal arrays found a gradual, reversible release at low force, followed by an abrupt higher-force release near 15 to 20 pN. Discrete steps in those traces correspond to roughly 78 to 80 base pairs unwrapping at once.
Magnetic tweezer studies on 30-nm chromatin fibers found the fiber behaves like a simple Hookean spring up to about 4 pN, extending roughly threefold before structural transitions begin.
These force-based measurements complement imaging with quantitative energy landscapes for chromatin compaction—data directly relevant to gene regulation and how architectural proteins organize genome structure.
Advantages and Limitations of Single-Molecule Force Spectroscopy
SMFS earns its place in the toolkit for reasons bulk assays can't match, but it comes with real trade-offs.
Advantages:
- Direct observation of rare conformational events and folding intermediates
- Detection of molecular heterogeneity within a supposedly uniform population
- Quantitative reconstruction of energy landscapes, not just endpoint states
Limitations:
- Low throughput compared to bulk biochemistry—each pull captures one molecule at a time
- Sensitivity to nonspecific tip-sample interactions that produce false rupture signals
- Calibration uncertainty of roughly 5 to 20% for AFM spring constants, plus force overestimation from uncorrected magnetic-tweezer camera blur
Technique choice means balancing force range, spatial and temporal resolution, and throughput against the question at hand.
Sub-nanometer motor stepping calls for optical tweezers. DNA supercoiling tracked over hours favors magnetic tweezers. Nanonewton-scale protein rupture needs AFM. Match the instrument to the measurement.
Choosing the Right AFM Instrumentation for Force Spectroscopy
Good SMFS data depends on more than picking the right technique category. Instrument precision, cantilever calibration accuracy, and environmental stability over long measurement runs all determine whether your force histograms are trustworthy or just noise.
Practical considerations for AFM-based force spectroscopy setups include:
- Cantilever selection: Liquid tapping probes (silicon or silicon nitride) support protein and DNA work in native buffer without drying artifacts.
- MAC Mode in liquid: Magnetic drive avoids the acoustic "forest of peaks," yielding a cleaner signal for piconewton-scale unbinding events.
- Anti-drift stages: Thermal drift over multi-hour runs can corrupt force-extension curves; temperature-controlled stages (-30°C to 250°C) with anti-drift design keep long sessions stable.

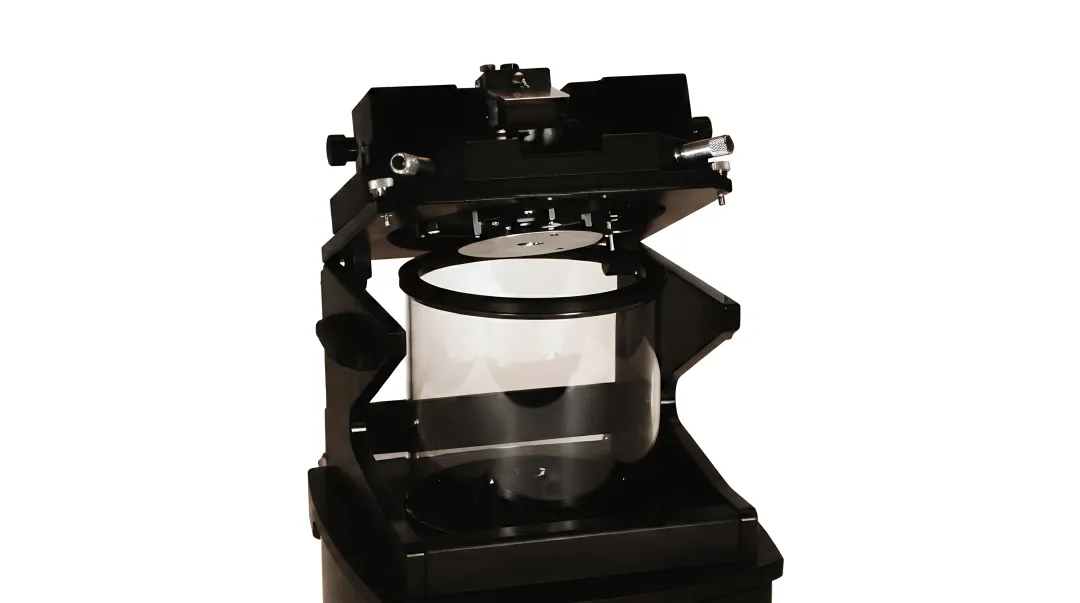

Instruments built for this workflow combine those capabilities in one platform. Molecular Imaging's 5500 ILM PicoPlus BioAFM offers sub-angstrom lateral resolution, MAC Mode for gentle in-liquid force detection, and liquid cell compatibility so proteins, DNA, and RNA stay in native buffer.
The PicoTREC module extends the same setup further, using functionalized tips to measure specific receptor-ligand unbinding forces directly.
Labs keeping existing AFM systems rather than buying new ones can use ZoomAFM for calibration, preventive maintenance, and repair—critical for continuous force spectroscopy on aging equipment.
Custom configuration is also available when off-the-shelf setups fall short, including environmental isolation chambers, electrochemical modules, or specialized spectroscopy scripts.
Frequently Asked Questions
What is single-molecule force spectroscopy?
SMFS applies controlled piconewton-to-nanonewton forces to individual biomolecules to measure their mechanical, kinetic, and energetic properties. It reveals folding intermediates and rare events that bulk biochemical assays average away entirely.
What insights does single-molecule force spectroscopy provide into chromatin topology?
SMFS, especially with magnetic and optical tweezers, reveals how nucleosomes unwrap and chromatin fibers fold or unfold under mechanical tension. This produces quantitative energy landscapes for genome organization that complement imaging-based studies.
What is the difference between AFM, optical tweezers, and magnetic tweezers?
AFM covers roughly 10 to 10,000 pN and excels at high-force protein unfolding. Optical tweezers span 0.1 to 100 pN with the best combined spatial and temporal precision, ideal for motor protein stepping. Magnetic tweezers reach down to femtonewtons and uniquely apply constant force and torque for DNA topology work.
What forces can single-molecule force spectroscopy measure?
Collectively, these techniques span femtonewtons to nanonewtons. AFM handles the highest forces, optical tweezers cover a precise mid-range, and magnetic tweezers reach the lowest forces with passive force-clamp stability.
Why is single-molecule force spectroscopy important compared to bulk biochemical assays?
Bulk assays average across billions of molecules, hiding rare conformational states, folding intermediates, and mechanical heterogeneity. SMFS observes individual molecules directly, exposing behavior that ensemble measurements cannot detect.
What are common applications of single-molecule force spectroscopy in research?
- Protein folding and unfolding pathways
- DNA and RNA elasticity
- Molecular motor stepping
- Receptor-ligand bond strength
- Chromatin fiber mechanics relevant to gene regulation
